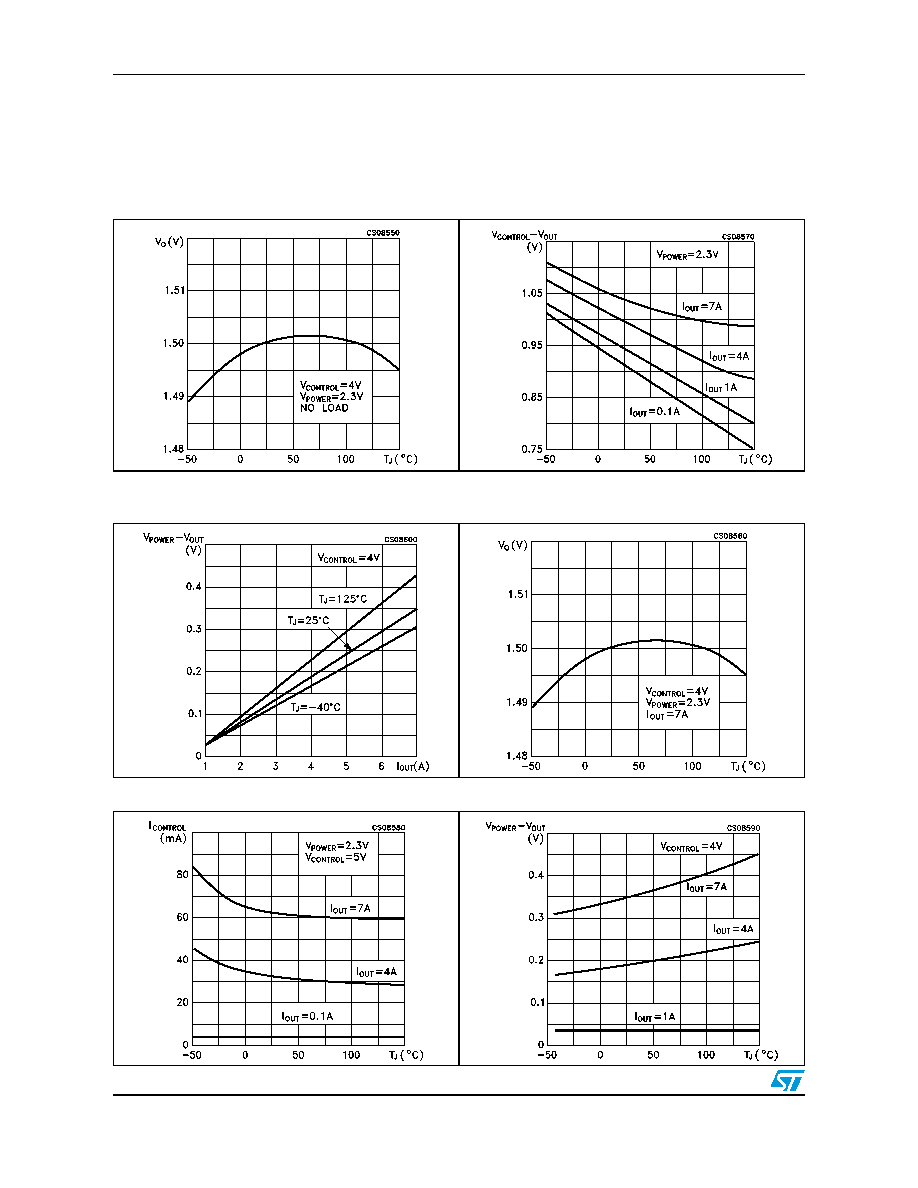

Typical characteristics
LD1580XX
8/15
6
Typical characteristics
(unless otherwise specified TJ = 25 °C, CP = 330 µF, CC = 10 µF, COUT = 100 µF)
Figure 4.
Output voltage vs temperature
Figure 5.
Minimum VCONTROL voltage vs
temperature
Figure 6.
Minimum VPOWER voltage vs output
current
Figure 7.
Output voltage vs temperature
Figure 8.
VCONTROL pin current vs temp.
Figure 9.
Minimum VPOWER voltage vs temp.
