ST70136
19/24
5.7 - Data and Control Timing Interface
TA = 0 to 70°C unless otherwise specified.

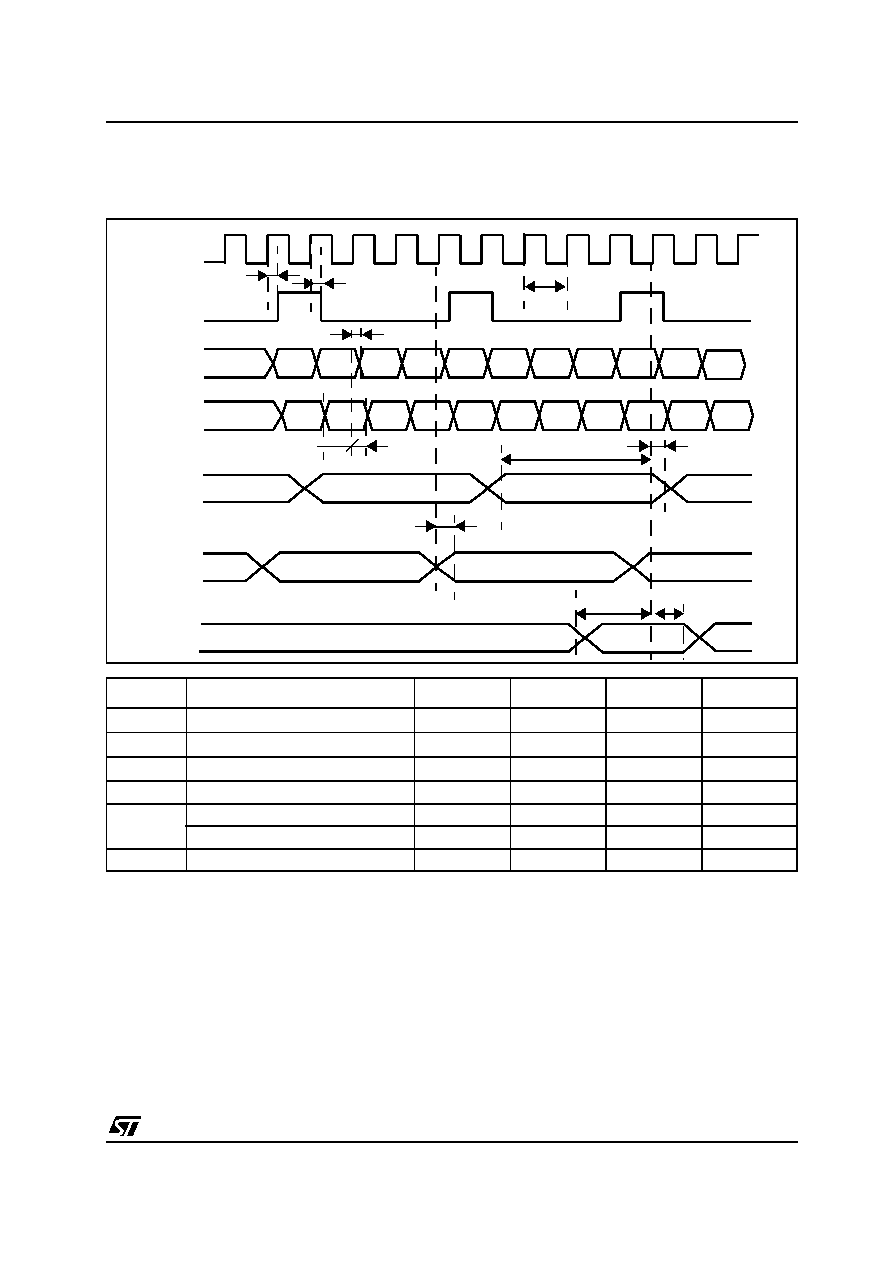

Figure 10 : Data and Control Timing Interface
Symbol
Description
Minimum
Typical
Maximum
Unit
Tva
Data valid time
04
ns
Ts
Data setup time
13
ns
Th
Data hold time
2ns
Tc
Word clock delay
0
4
ns
Fo
CLKM Frequency
35.328
MHz
CLKM clock duty cycle
40
60
%
To
CLKM period
28.3
ns
CLKM
CLKWD
Tc
RX[0:3]
TX[0:3]
Ts
Th
CTRLIN
Ts
Th
CTRLOUT
Tva
R/NW
Ts
Th
To
Tc
Tva
