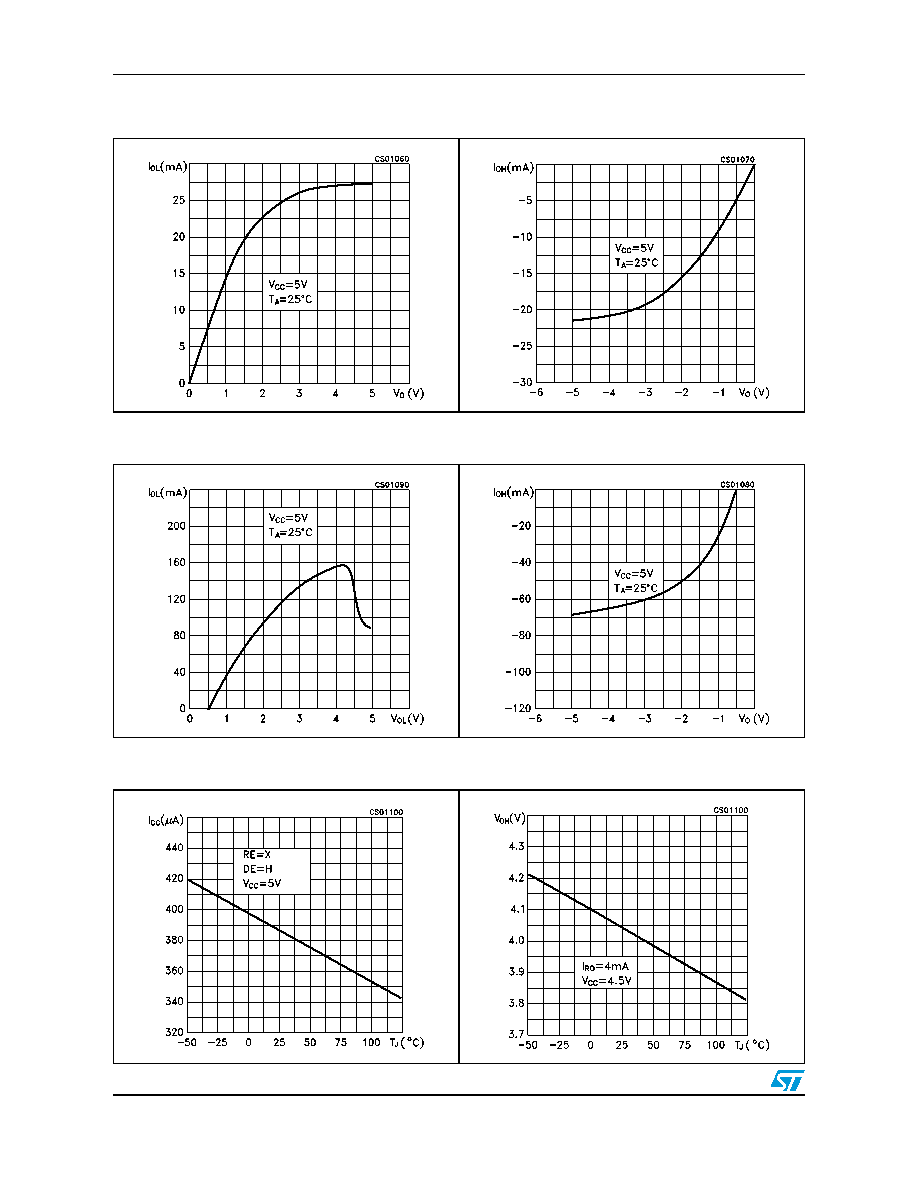

Test circuit and typical characteristics
ST485EB - ST485EC - ST485EX
12/18
Figure 10.
Receiver output current vs output
low voltage
Figure 11.
Receiver output current vs output
high voltage
Figure 12.
Driver output current vs output low
voltage
Figure 13.
Driver output current vs output
high voltage
Figure 14.
Supply current vs temperature
Figure 15.
Receiver high level output voltage
vs temperature
