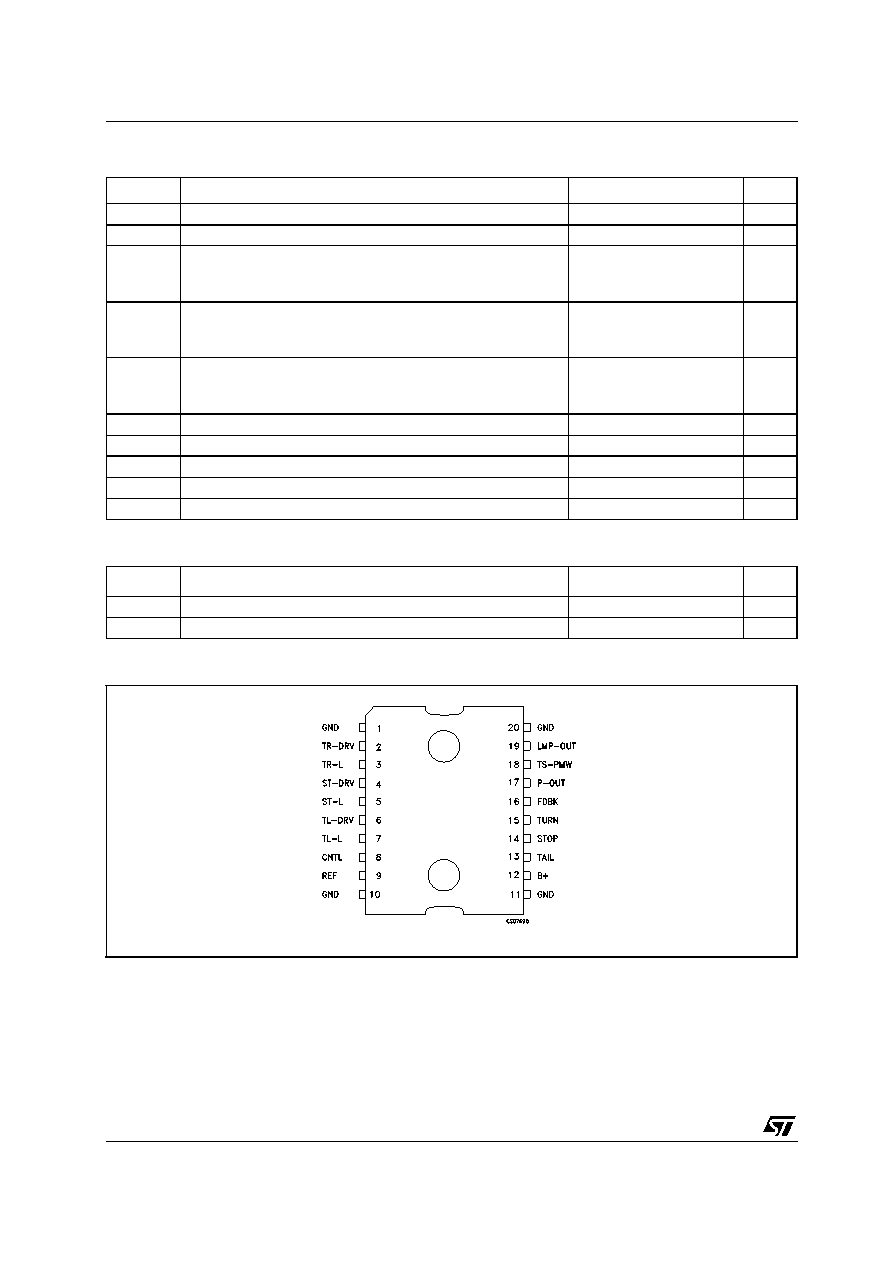

background image
STLC1
2/16
ABSOLUTE MAXIMUM RATINGS
THERMAL DATA
CONNECTION DIAGRAM (top view)
Symbol
Parameter
Value
Unit
VB+
Transient Supply Voltage (load dump)
60
V
VB+
Operating Supply Voltage
24
V
VTURN,
VSTOP,
VTAIL
TURN, STOP and TAIL input pins voltage
VB+ + 0.3
V
ITURN,
ISTOP,
ITAIL
TURN, STOP and TAIL pins current
± 10
mA
ITR-DRV,
ITL-DRV,
IST-DRV
TR-DRV, TL-DRV and ST-DRV pins sink current
1.5
A
ILMP-OUT
LMP-OUT pin sink current
120
mA
VP-OUT
P-OUT DC Voltage
60
V
IP-OUT
P-OUT pin sink current
Internally Limited
A
Tstg
Storage Temperature Range
-55 to +150
°C
TJ
Operating Junction Temperature Range
-40 to +125
°C
Symbol
Parameter
PowerSO-20TM
Unit
Rthj-case
Thermal Resistance Junction-case
2
°C/W
Rthj-amb
Thermal Resistance Junction-Ambient
50
°C/W
PowerSO-20TM
