Function

These boards orient the direction of an emulation pod with an

FLX64 (40-pin narrow-pitch connector x 2 pcs.) probe tip by

90/180°.

Application

When connecting an emulation pod with an FLX64 probe tip

form to a dummy

IC (M3T-DUMMY64)

etc., use the

M3T-FLX64-T. It allows the emulation pod to be installed at a

position 90° counterclockwise from the corresponding position

on the dummy IC. Similarly, the M3T-FLX64-R allows the

emulation pod to be installed at a position 180° counterclockwise

from the corresponding position on the dummy IC.

Dimensions

24.0(D)×24.0(W)×10.0(H)mm

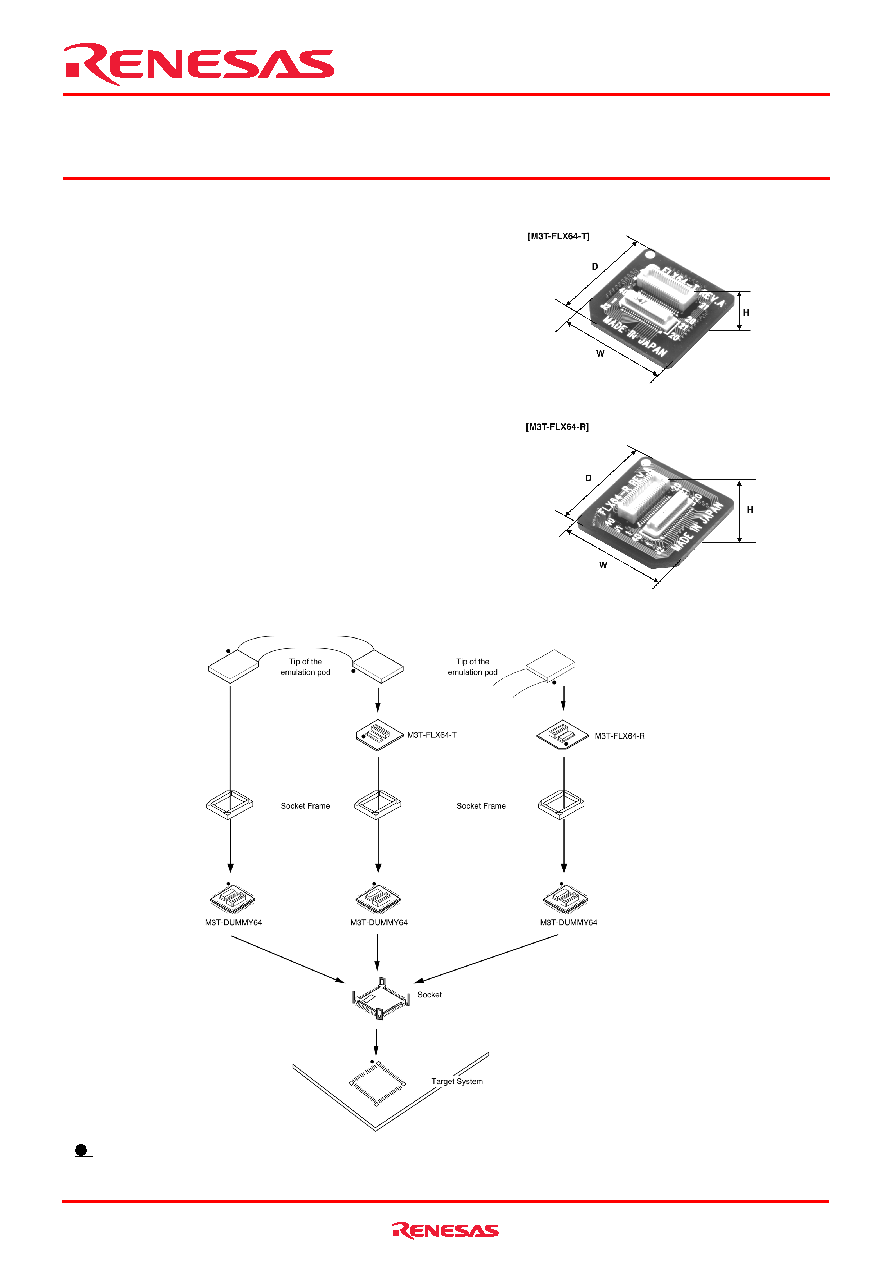

Usage Example

*The example of when you use the M3T-DUMMY64 is as

follows.

*

: Position of No. 1 pin

M3T-FLX64-T/M3T-FLX64-R

Board for converting direction by 90/180°

[Ordering Information] See Appendix H "Ordering Information".
