TDA7253 Datenblatt(PDF) 1 Page - STMicroelectronics

Teilenummer TDA7253
Bauteilbeschribung  8W AMPLIFIER WITH MUTING
PDF  5 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Hersteller  STMICROELECTRONICS [STMicroelectronics]
Direct Link  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

TDA7253 Datenblatt(HTML) 1 Page - STMicroelectronics

  TDA7253 Datasheet HTML 1Page - STMicroelectronics TDA7253 Datasheet HTML 2Page - STMicroelectronics TDA7253 Datasheet HTML 3Page - STMicroelectronics TDA7253 Datasheet HTML 4Page - STMicroelectronics TDA7253 Datasheet HTML 5Page - STMicroelectronics
Zoom Inzoom in Zoom Outzoom out
 1 / 5 page

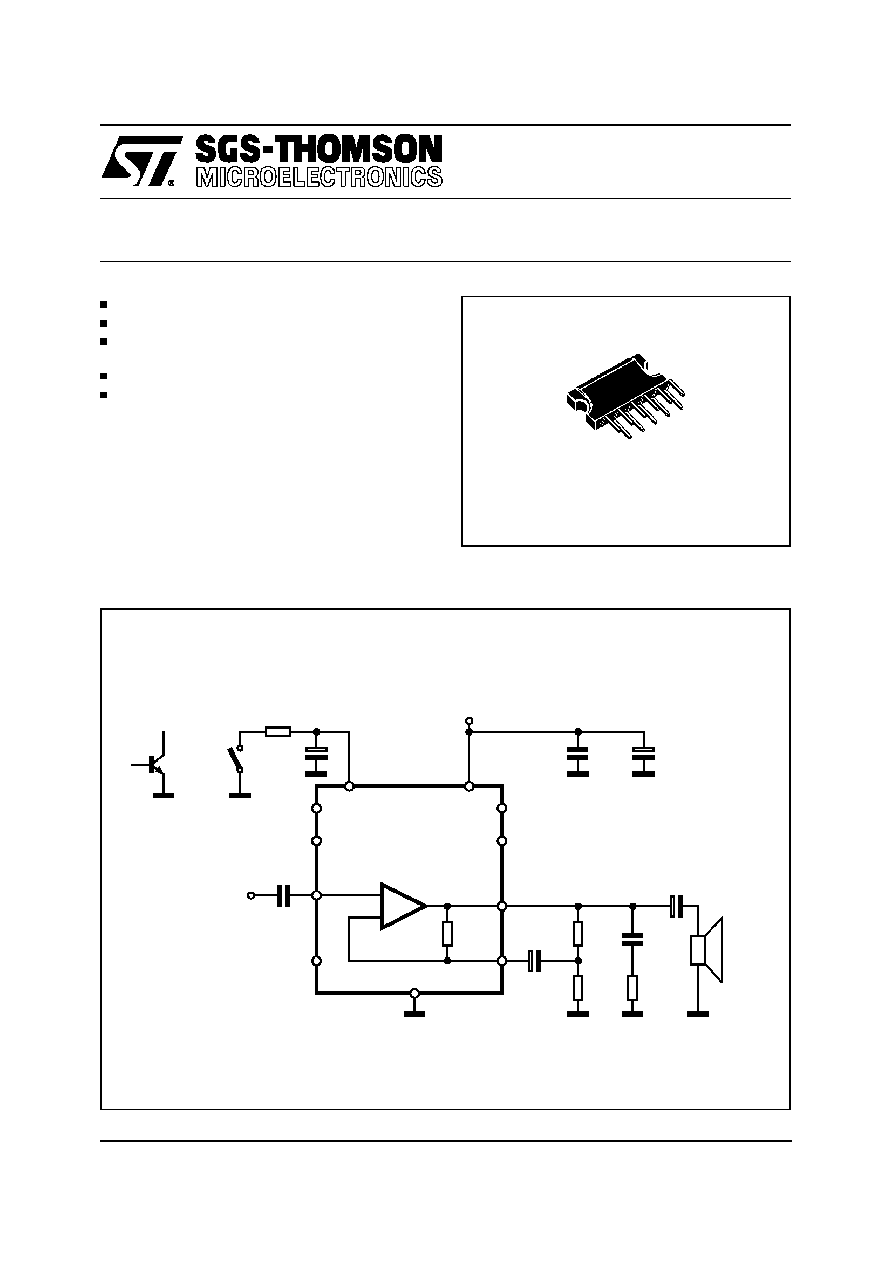

background image
TDA7253
8W AMPLIFIER WITH MUTING
WIDE SUPPLY VOLTAGE RANGE
8W @ VS=26V, RL =8
Ω, THD=10%
MUTE FACILITY (POP FREE) WITH LOW
CONSUMPTION
AC SHORT CIRCUIT PROTECTION
THERMAL
OVERLOAD
PROTECTION
(150
°C)
DESCRIPTION
The TDA7253 is class AB audio power amplifier
assembled in the new Clipwatt package.
May 1997
=
MUTE
SW
CSVR
100
µF
R7 820
27K
C2
100nF
IN
(L)
1
11
3
TDA7253
7
6
CF
47
µF
R4
47
R3
1.5K
C9
0.1
µF
R6
4.7
RL
C11 1000
µF
C4
0.1
µF
C5
470
µF
2
10
9
8
4
+VS
D94AU130
APPLICATION CIRCUIT
Clipwatt11
1/5
