Inchange Semiconductor

Product Specification

Silicon PNP Power Transistors

2SA1599

DESCRIPTION

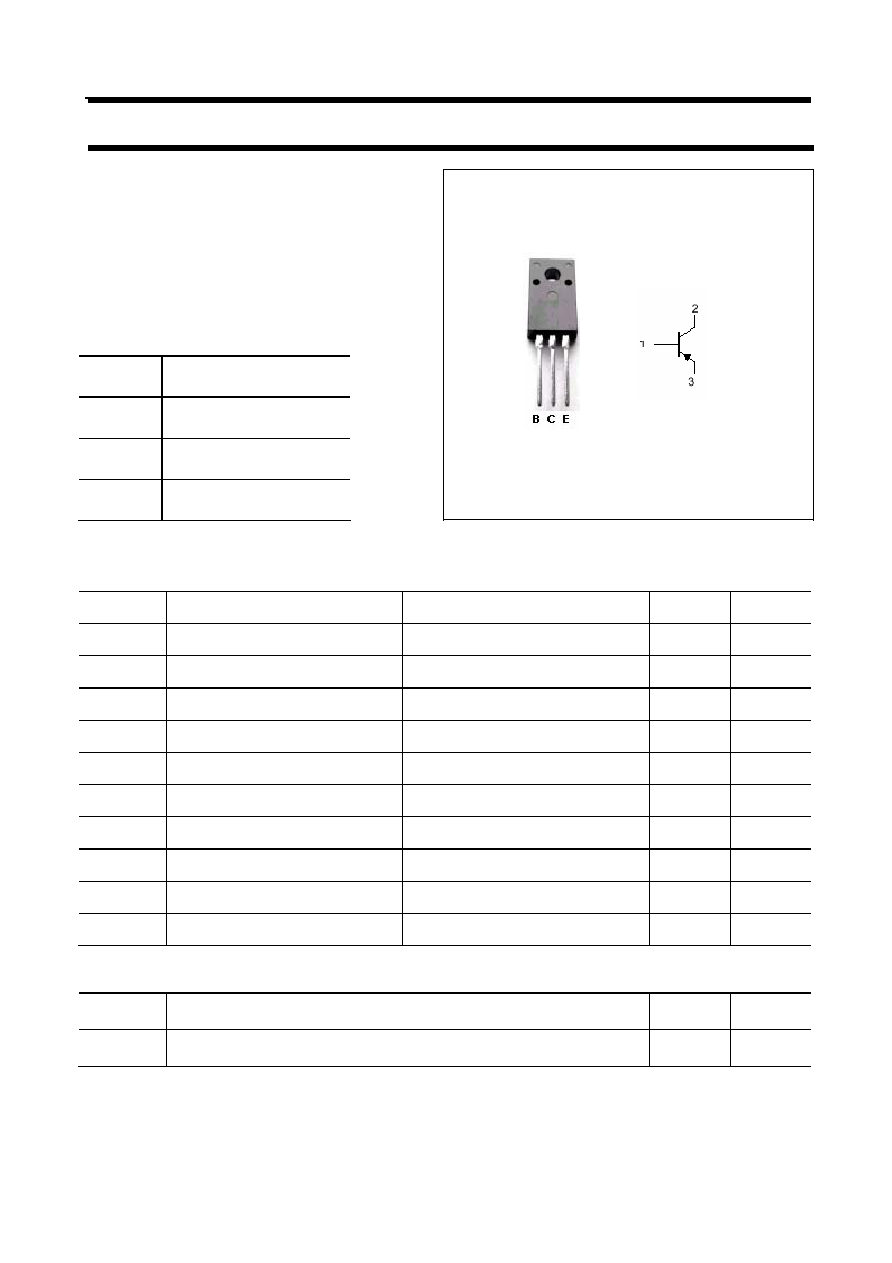

Fig.1 simplified outline (ITO-220) and symbol

·With ITO-220 package

·Switching power transistor

·Low collector saturation voltage

PINNING

DESCRIPTION

1

Base

2

Collector

3

Emitter

Absolute maximum ratings(Ta=25℃)

SYMBOL

PARAMETER

CONDITIONS

VALUE

UNIT

VCBO

Collector-base voltage

Open emitter

-60

V

VCEO

Collector-emitter voltage

Open base

-40

V

VEBO

Emitter-base voltage

Open collector

-7

V

IC

Collector current

-10

A

ICM

Collector current-Peak

-20

A

IB

B

Base current

-1.5

A

IBM

Base current-Peak

-2

A

PT

Total power dissipation

TC=25℃

25

W

Tj

Junction temperature

150

℃

Tstg

Storage temperature

-55~150

℃

THERMAL CHARACTERISTICS

SYMBOL

PARAMETER

MAX

UNIT

Rth j-C

Thermal resistance junction case

5.0

℃/W
