AD8622
Rev. 0 | Page 7 of 20
TEMPERATURE (°C)
–40
–30
–20
–10
0
10
20
30
40
–50
–25
0
25
50
75
100
125
IB+
IB–
VSY = ±15V

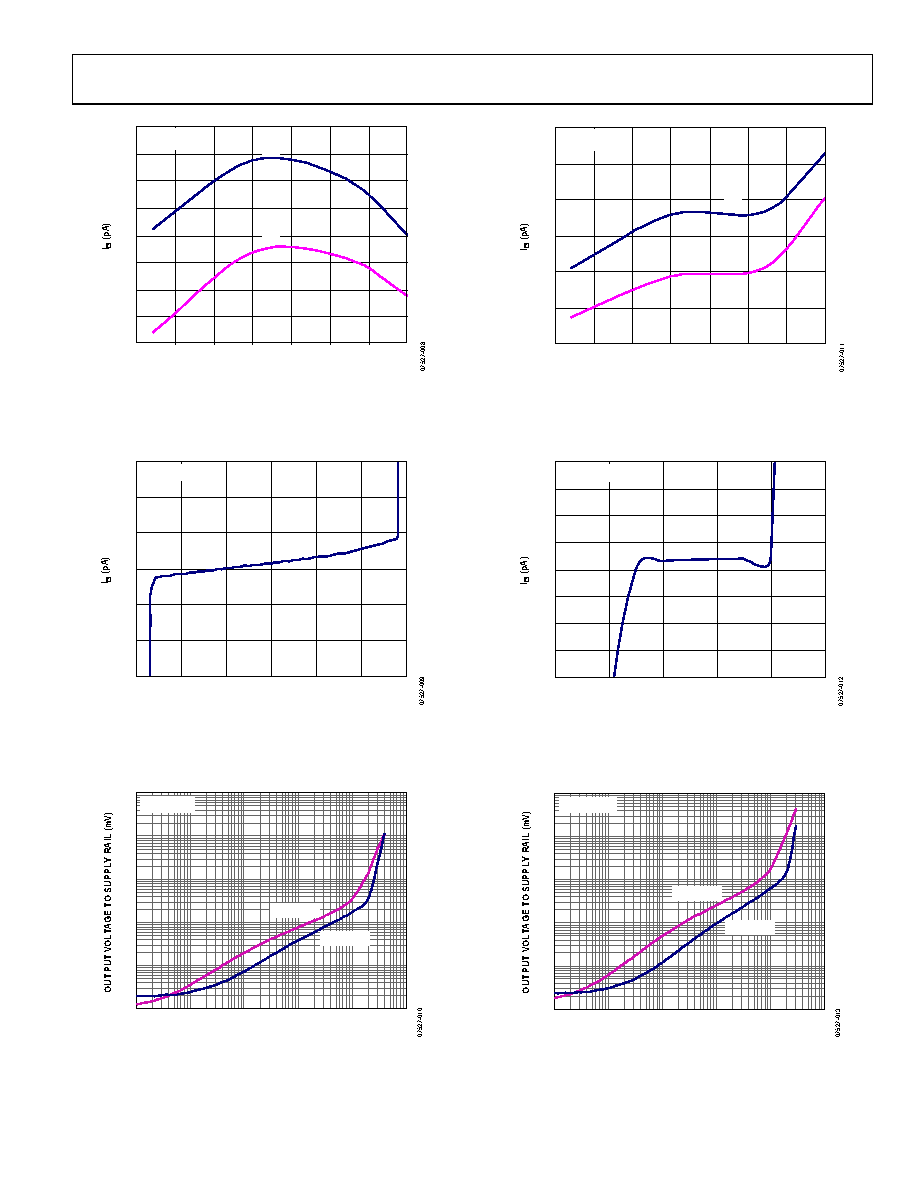

Figure 9. Input Bias Current vs. Temperature
–60
–40
–20
0
20
40
60
0
5
10
15
20
25
30
VSY = ±15V
VCM (V)
Figure 10. Input Bias Current vs. Common-Mode Voltage
100k
10k
1k
100
10
1
0.001
0.01
0.1
1
10
100
LOAD CURRENT (mA)
VSY = ±15V
VCC – VOH
VOL – VEE
Figure 11. Output Voltage to Supply Rail vs. Load Current
–80
–60
–40
–20
0
20
40
TEMPERATURE (°C)
–50
–25
0
25
50
75
100
125
IB+
IB–
VSY = ±2.5V
Figure 12. Input Bias Current vs. Temperature
–150
–125
–100
–75
–50
–25
0
25
50
01
234
5
VSY = ±2.5V
VCM (V)
Figure 13. Input Bias Current vs. Common-Mode Voltage
100k
10k
1k
100
10
1
0.001
0.01
0.1
1
10
100
LOAD CURRENT (mA)
VSY = ±2.5V
VCC – VOH
VOL – VEE
Figure 14. Output Voltage to Supply Rail vs. Load Current
