CHAPTER 3: ELECTRICAL SPECIFICATIONS
C3EN
QMU SRAM (Internal
Mode) Timing
Specifications
The QMU SRAM (Internal Mode) timing specifications are shown in Figure 26 and
described in Table 53.

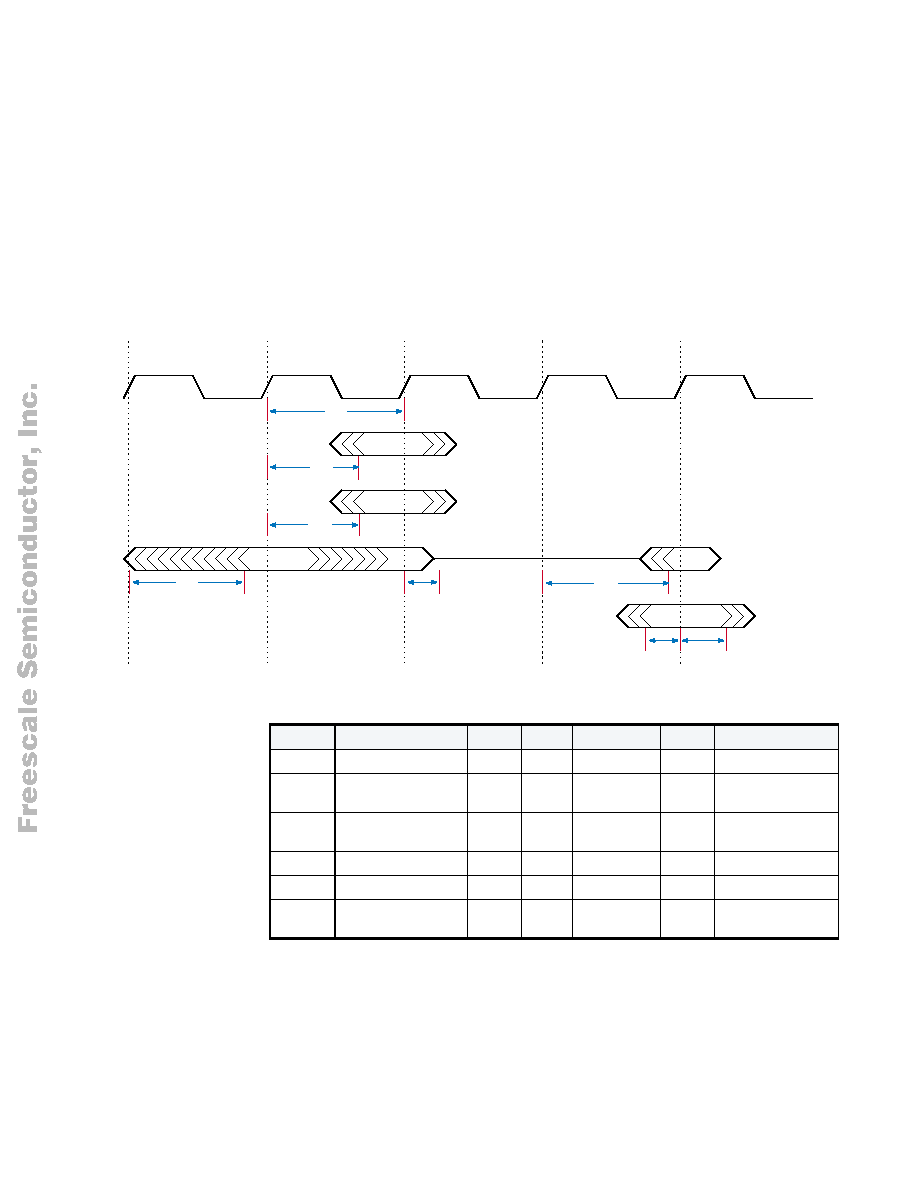

Figure 26 QMU SRAM (Internal Mode) Timing Diagram
QACLKI
Cycle 1
Cycle 2
Cycle 3
Cycle 4
Cycle 5
Q_ctl
QAn
QDn
(output)
QDn
(input)
Tqc
Tqdo
Tqco
Tqao
Tqdv
Tqds
Tqdz
Tqdh
Table 53 QMU SRAM (Internal Mode) Timing Description
SYMBOL
PARAMETER
MIN
TYP
MAX
UNIT
COMMENT
Tqc
QMU Cycle Time
6.7
ns
Tqco
QMU Ctrl Output
0.8
4.4
ns
Loading is 50
Ω
transmission line.
Tqao
QMU Addr Output
0.8
4.4
ns
Loading is 50
Ω
transmission line.
Tqds
QMU Data Setup
0.8
ns
Tqdh
QMU Data Hold
0.8
ns
Tqdo
QMU Data Output
0.9
4.4
ns
Loading is 50
Ω
transmission line.
