RF2103P
Rev B1 010720
2

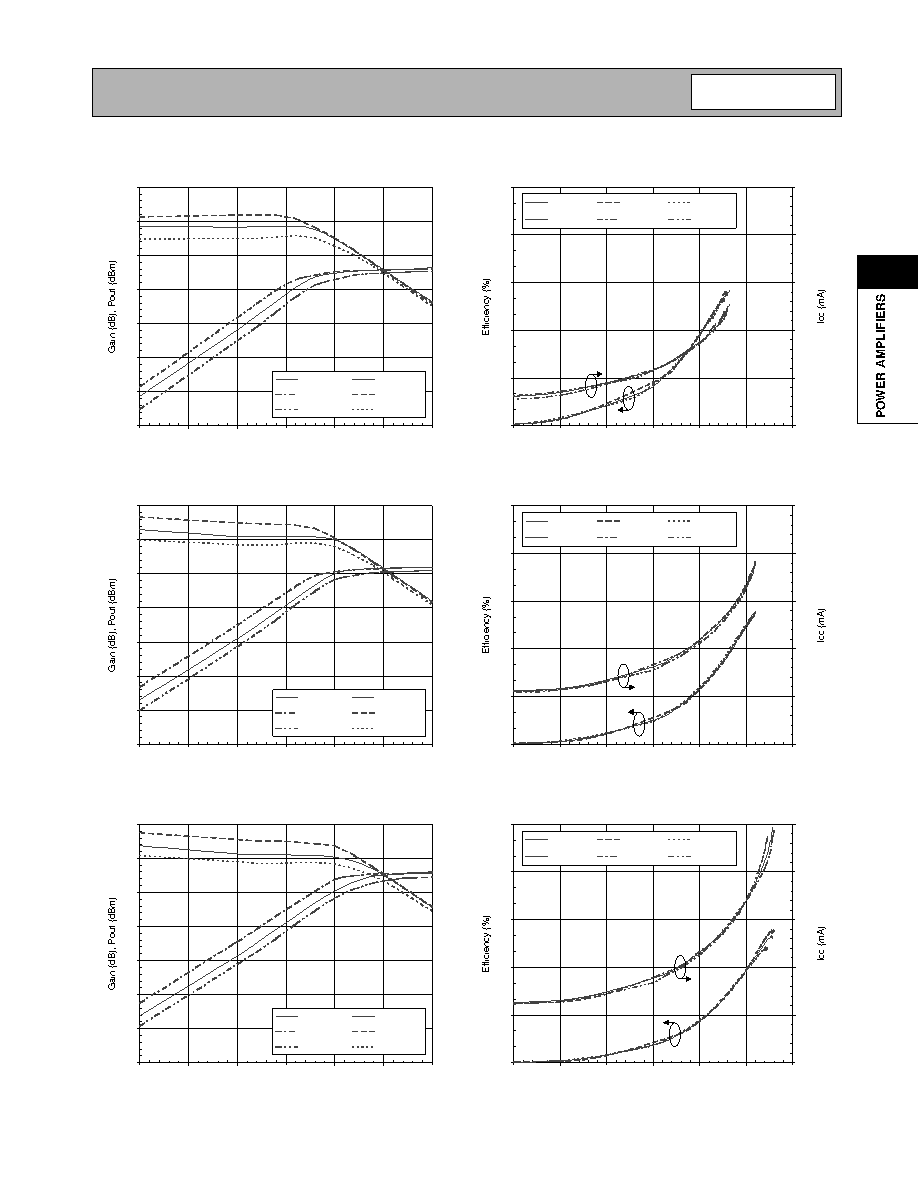

Gain and Pout vs. Pin
Vcc=Vb=3.6 V, 915 MHz
0
5
10
15
20
25
30
35
-25
-20
-15
-10
-5
0
5
Pin (dBm)
Pout (+25°C)
Gain (+25°C)
Pout (-40°C)
Gain (-40°C)
Pout (+85°C)
Gain (+85°C)
Gain and Pout vs. Pin
Vcc=Vb=4.8 V, 915 MHz
0
5
10
15
20
25
30
35
-25
-20
-15
-10
-5
0
5
Pin (dBm)
Pout (+25°C)
Gain (+25°C)
Pout (-40°C)
Gain (-40°C)
Pout (+85°C)
Gain (+85°C)
Efficiency and Icc vs. Pout
Vcc=Vb=3.6 V, 915 MHz
0
15
30
45
60
75
0
5
10
15
20
25
30
Pout (dBm)
10
60
110
160
210
260
Eff (+25°C)
Eff (-40°C)
Eff (+85°C)
Icc (+25°C)
Icc (-40°C)
Icc (+85°C)
Gain and Pout vs. Pin
Vcc=6.0 V, Vb=5.0 V, 915 MHz
0
5
10
15
20
25
30
35
-25
-20
-15
-10
-5
0
5
Pin (dBm)
Pout (+25°C)
Gain (+25°C)
Pout (-40°C)
Gain (-40°C)
Pout (+85°C)
Gain (+85°C)
Efficiency and Icc vs. Pout
Vcc=6.0 V, Vb=5.0 V, 915 MHz
0
15
30
45
60
75
0
5
10
15
20
25
30
Pout (dBm)
10
60
110
160
210
260
Eff (+25°C)
Eff (-40°C)
Eff (+85°C)
Icc (+25°C)
Icc (-40°C)
Icc (+85°C)
Efficiency and Icc vs. Pout
Vcc=Vb=3.6 V, 915 MHz
0
15
30
45
60
75
0
5
10
15
20
25
30
Pout (dBm)
10
60
110
160
210
260
Eff (+25°C)
Eff (-40°C)
Eff (+85°C)
Icc (+25°C)
Icc (-40°C)
Icc (+85°C)
