75N75
Power MOSFET
UNISONICTECHNOLOGIESCO.,LTD
5 of 6
www.unisonic.com.tw
QW-R502-097.E

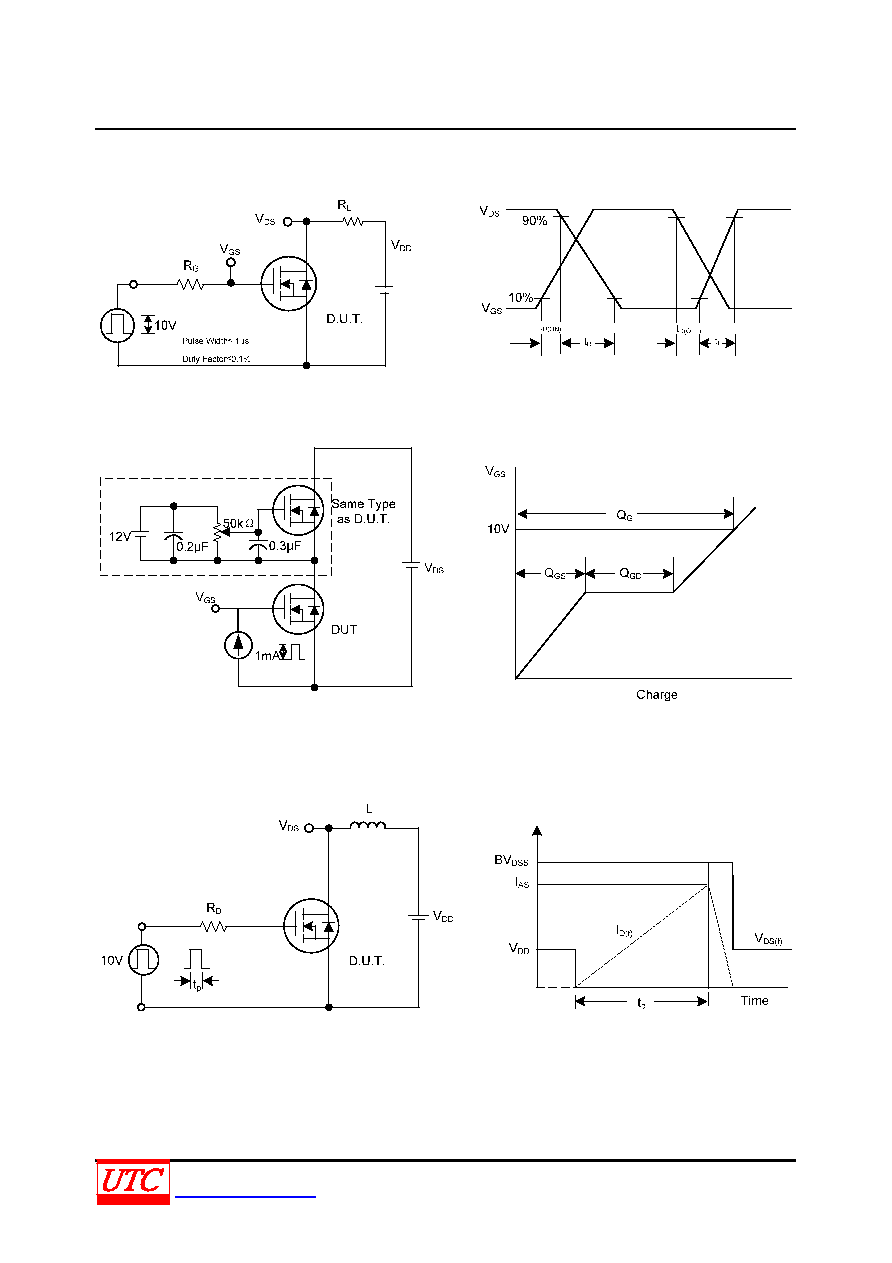

TEST CIRCUITS AND WAVEFORMS (Cont.)
2A Switching Test Circuit
2B Switching Waveforms
3A Gate Charge Test Circuit
3B Gate Charge Waveform
4A Unclamped Inductive Switching Test Circuit
4B Unclamped Inductive Switching Waveforms
