Dimensions

1. Dimensions are in inches.

Ltr

Millimeters

Inches

2. Inch equivalents are given for general information only.

Min

Max

Min

Max

3. Glass meniscus included in dimension TL and BL.

BL

10.41

10.92

.410

.430

4. Tabless TO-257 package.

CH

4.83

5.08

.190

.200

LD

0.64

0.89

.025

.035

LL

12.82

15.11

.505

.595

LO

3.05 BSC

.120 BSC

LS

2.54 BSC

.100 BSC

TW

10.41

10.67

.410

.420

TERM 1

SEE SCHEMATIC

TERM 2

OPEN (No connection)

TERM 3

SEE SCHEMATIC

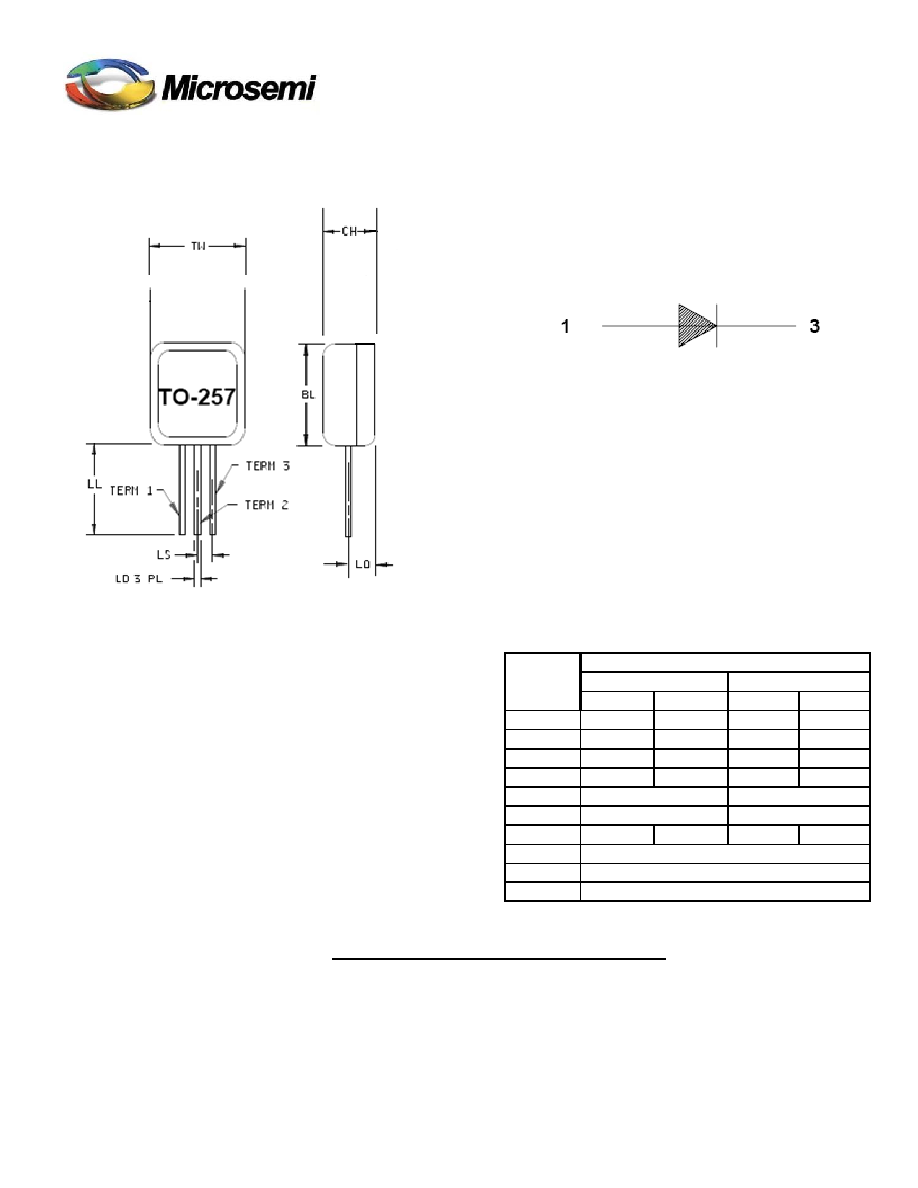

FIGURE 4. Physical dimensions Tabless TO-257 and configuration
