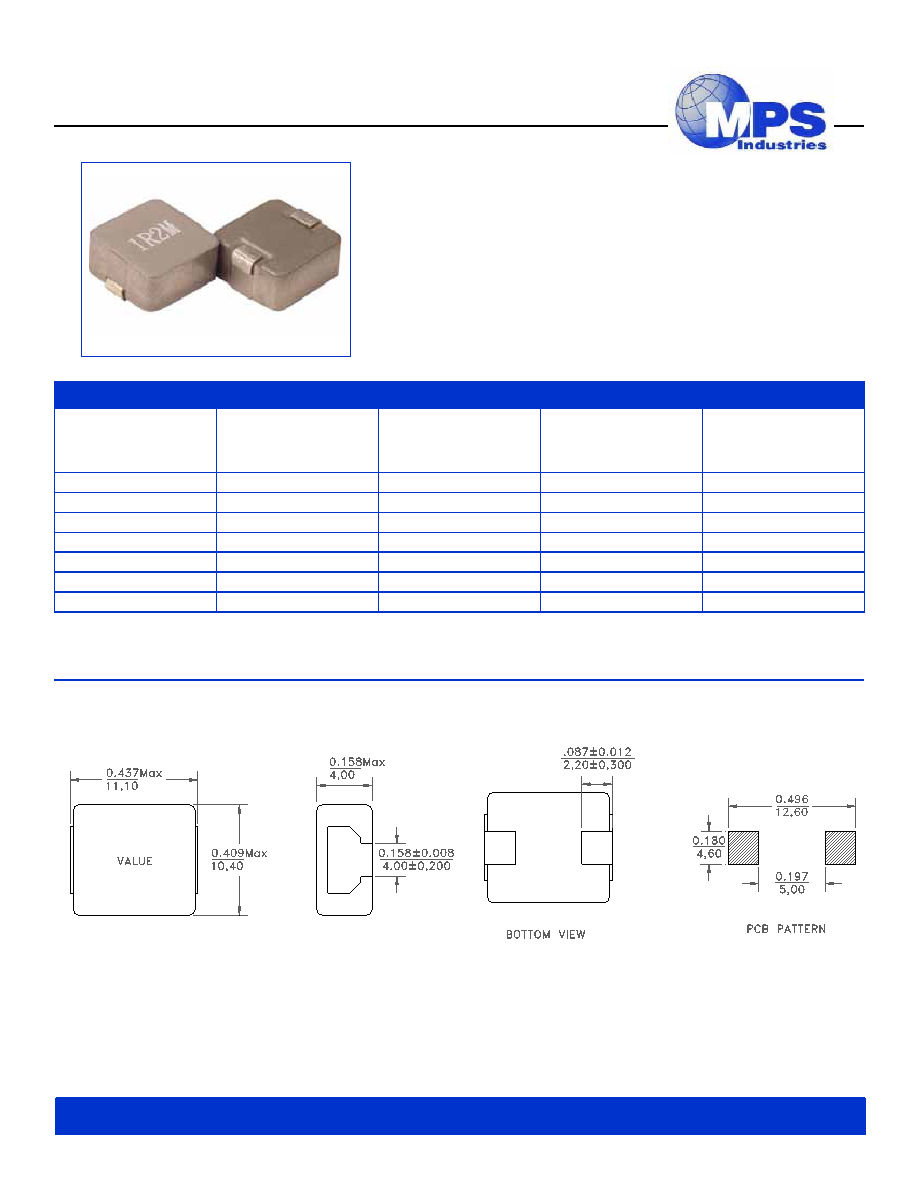

SHIELDED SMD POWER

INDUCTOR

• High current inductor for Voltage Regulated Module (VRM)

• Good for DC/DC converter and switch-mode power supply

applications

• High current in compact package

• Operating temperature: -55°C to +120°C

• RoHS Compliant Product

Product performance is limited to specified parameter. Data is subject to change without prior notice.

PS104-SERIES

0852AL

UNIT = inch/mm

Unless otherwise specified, all tolerances are:

inch: .XX : ± 0.015

.XXX : ±0.010

mm: X,X : ± 0,38 X,XX : ±0,25

Mechanical

PS104 SERIES

ELECTRICAL PARAMETERS @ 25°C

PART NUMBER

Inductance (L)

I

RMS

DCR

±20%

(A)

(A)

(mW)

PSE104-

(µH)

Max.

Temp. Rise 40°C Max.

Max.

R36M

0.36

35

35

0.95

R47M

0.47

32

32

1.20

R56M

0.56

30

30

1.35

R78M

0.78

25

25

1.70

1R0M

1.00

21

21

2.50

1R8M

1.80

15

15

5.00

2R0M

2.00

14

14

5.80
