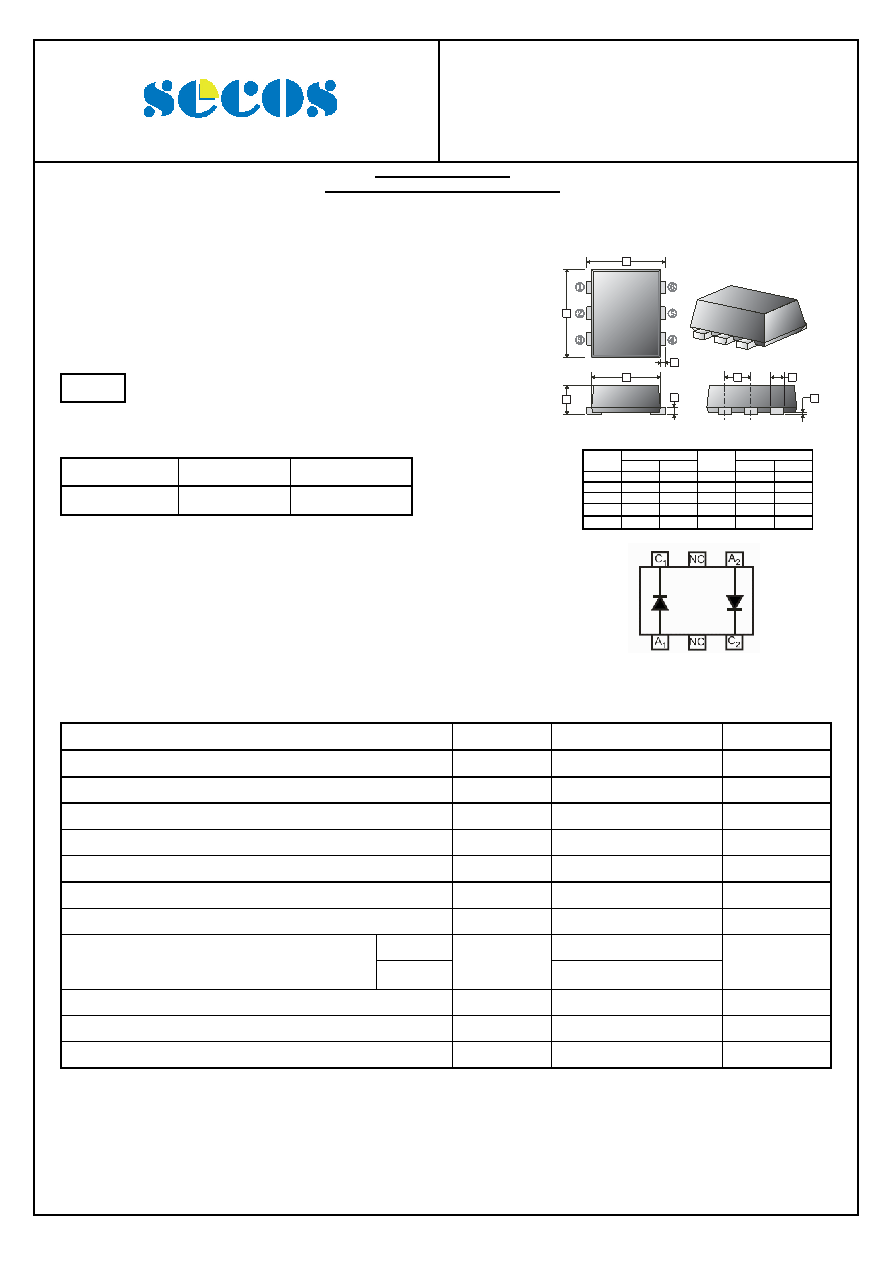

BAS16V

0.3A , 100V

Plastic-Encapsulated Transistors

Elektronische Bauelemente

21-Jul-2011 Rev. A

Page 1 of 2

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

E

F

J

B

C

D

G

A

H

REF.

Millimeter

REF.

Millimeter

Min.

Max.

Min.

Max.

A

1.50

1.70

F

0.09

0.16

B

1.50

1.70

G

0.45

0.55

C

0.525

0.60

H

0.17

0.27

D

1.10

1.30

J

0.10

0.30

E

-

0.05

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

FEATURES

Fast switching speed

For General Purpose Switching Applications

High Conductance

MARKING

KAM

PACKAGE INFORMATION

Package

MPQ

Leader Size

SOT-563

3K

7 inch

ABSOLUTE MAXIMUM RATINGS (TA=25°C unless otherwise specified)

Parameter

Symbol

Value

Unit

Non-Repetitive Peak reverse voltage

VRM

100

V

Maximum Repetitive Peak Reverse Voltage

VRRM

75

V

Working Peak Reverse Voltage

VRWM

75

V

Maximum DC Blocking Voltage

VR

75

V

RMS Reverse Voltage

VR(RMS)

53

V

Peak forward Continuous current

IFM

300

mA

Maximum Average Forward Rectified Current

IF(AV)

200

mA

Peak Forward Surge Current 8.3 ms Single Half

Sine-Wave Super Imposed on Rated Load (JEDEC

Method)

t=1.0µs

IFSM

2.0

A

t=1.0s

1.0

Power dissipation

PD

150

mW

Thermal Resistance Junction to Ambient

RθJA

833

K / W

Operating Junction and storage temperature range

TJ,TSTG

150,-65~150

°C

SOT-563
