LD39150xx
Typical performance characteristics
9/19
6
Typical performance characteristics
(TJ = 25 °C, VI = VO + 1 V, CI = 1 µF, CO = 2.2 µF, ILOAD = 10 mA, VINH = VI, unless otherwise
specified)

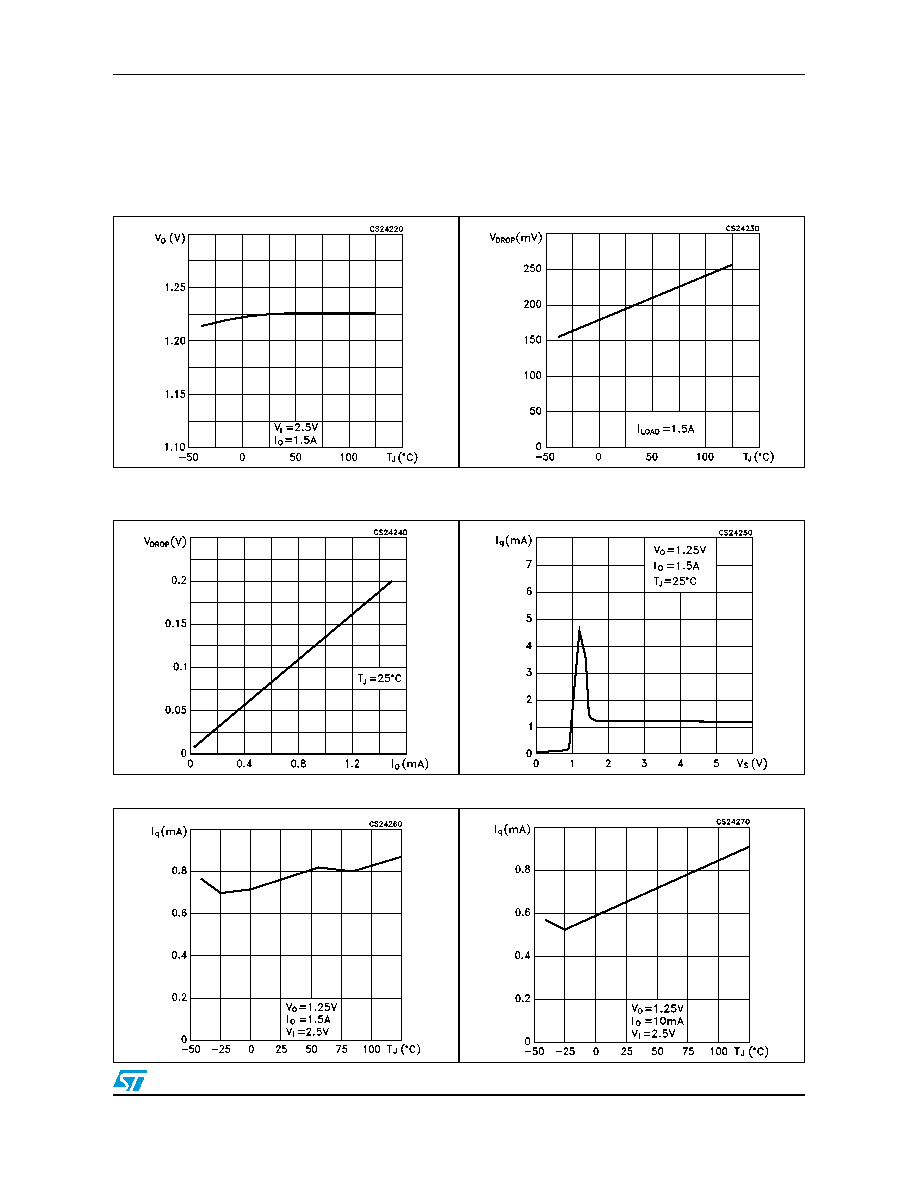

Figure 7.
Output voltage vs temperature
Figure 8.
Dropout voltage vs temperature
Figure 9.
Dropout voltage vs output current
Figure 10.
Quiescent current vs supply
voltage
Figure 11.
Quiescent current vs temperature
Figure 12.
Quiescent current vs temperature
