STM32F103x4, STM32F103x6

Electrical characteristics

Doc ID 15060 Rev 6

41/90

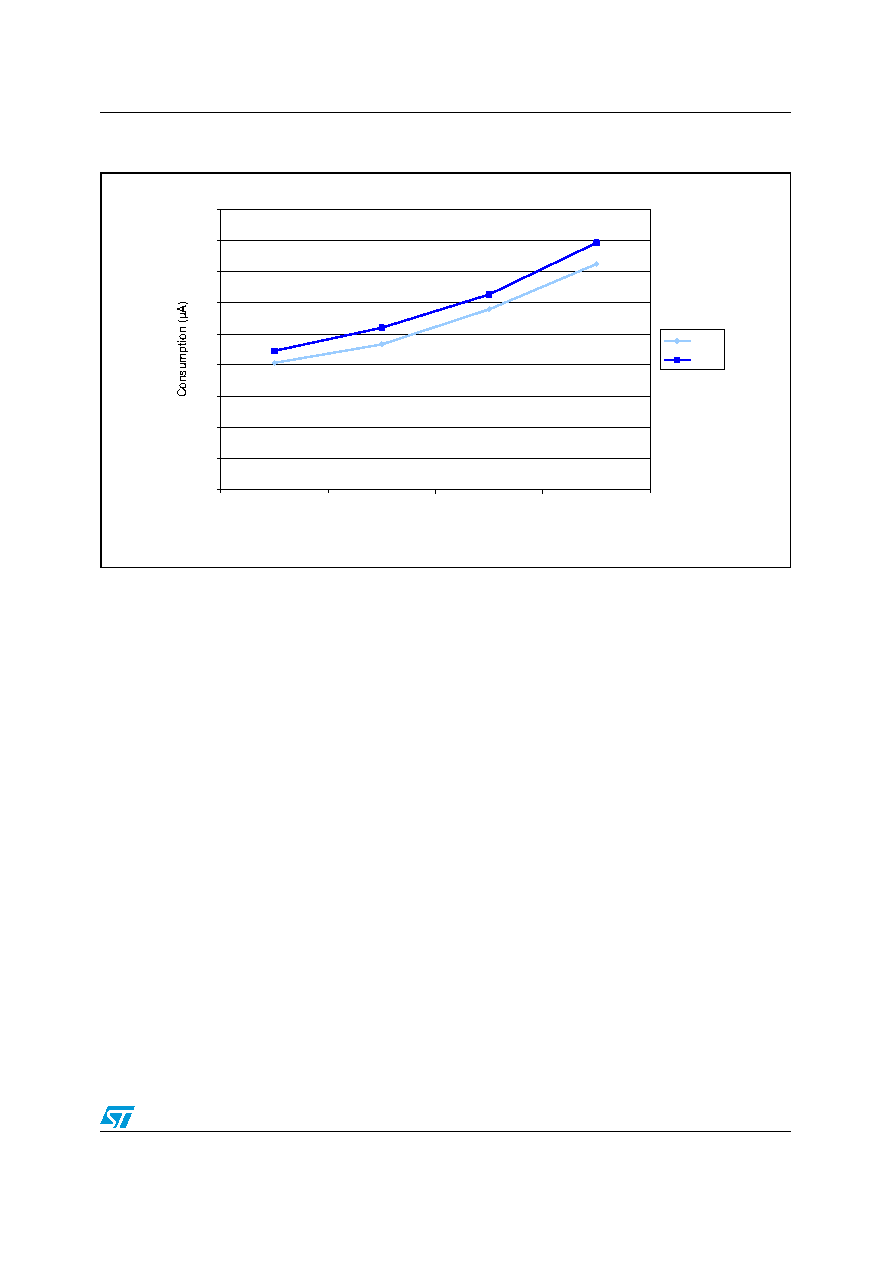

Figure 18.

Typical current consumption in Standby mode versus temperature at

VDD = 3.3 V and 3.6 V

Typical current consumption

The MCU is placed under the following conditions:

●

All I/O pins are in input mode with a static value at VDD or VSS (no load).

●

All peripherals are disabled except if it is explicitly mentioned.

●

The Flash access time is adjusted to fHCLK frequency (0 wait state from 0 to 24 MHz, 1

wait state from 24 to 48 MHz and 2 wait states above).

●

Ambient temperature and VDD supply voltage conditions summarized in Table 9.

●

Prefetch is ON (Reminder: this bit must be set before clock setting and bus prescaling)

●

When the peripherals are enabled fPCLK1 = fHCLK/4, fPCLK2 = fHCLK/2, fADCCLK =

fPCLK2/4

0.5

1.5

2.5

3.5

4.5

–45 °C

25 °C

85 °C

105 °C

Temperature (°C)

3.3 V

3.6 V
