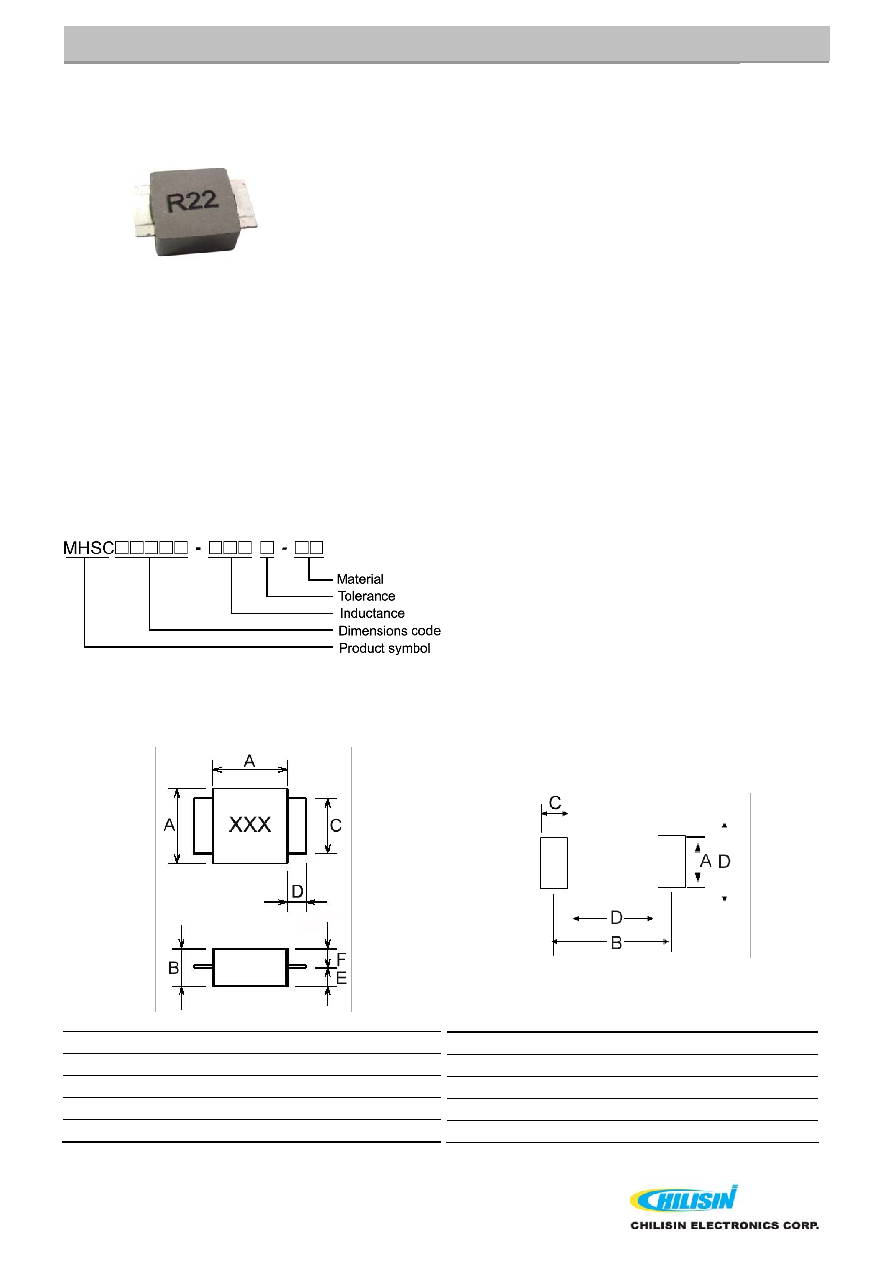

Molding Power Choke – MHSC Series
MHSC Series
MHSC series is designed for low profile type with low DCR and ultra
large current, especially for height limited boards. Its molded magnetic
shielded type is suitable for high-density mounting and ultra low buzz
noise. Soldering conditions can be easily confirmed when mounting
onto board. This series also provides customers with embossed carrier
type packaging for automatic mounting machine.
Features
Applications
 RoHS compliant
 Ultra low profile on board
 Shielded construction
 Ultra low buzz noise due to molding construction
 High density DC/DC converter in height limited board
 POL converters
 High current VRM/VDR for notebook / server / desktop CPU
 High current DC/DC converter in distributed power system
 High speed charger
Product Identification
Shape and Dimensions
Recommended Pattern
Dimensions in mm
TYPE
A
B
C
D
E
F
04020
4.2±0.2 2.0
+0.2
-0.3
1.5±0.2 1.2±0.3
1.2
1.0
06022
6.6±0.2 2.2
+0.2
-0.3
3.0±0.2 1.5±0.3
1.4
1.0
06036
6.6±0.2 3.6
+0.2
-0.3
3.0±0.2 1.5±0.3
2.3
1.5
08036
8.0±0.2 3.6
+0.2
-0.3
6.0±0.2 2.0±0.3
2.3
1.3±0.2
Dimensions in mm
TYPE
A
B
C
D
04020
2.0
6.5
1.8
4.5
06022
3.5
9.5
2.2
6.9
06036
3.5
9.5
2.2
6.9
08036
6.0
11.9
3.0
8.4
