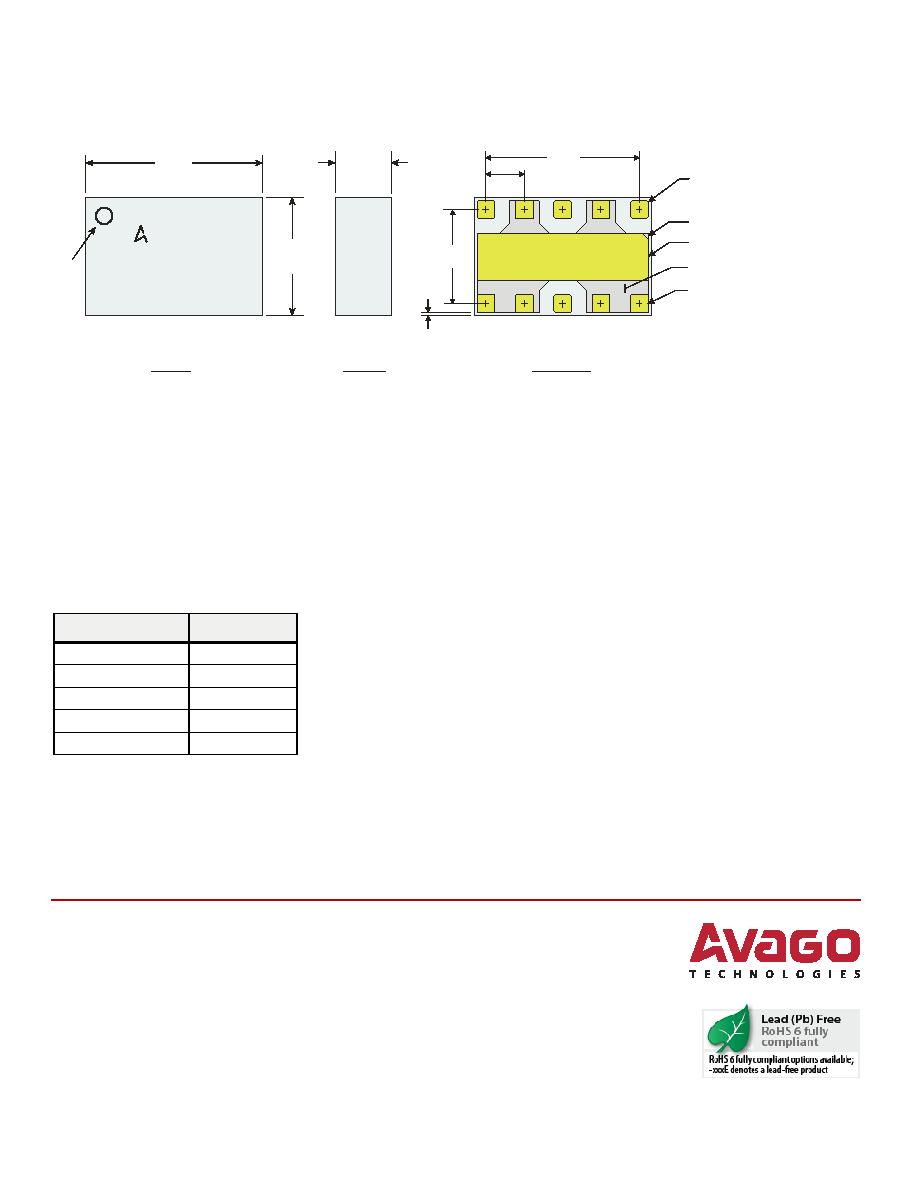

Package Dimensions and Marking Specification

Pin Description

Pin

Connection

1

Band 25 Rx

4Ant

7

Band 26 Rx

9

Band 41 Rx

2, 3, 5, 6, 8, 10, 11

GND

78

9

10

1

2

3

4

5

6

11

Notes:

1. Dimensions in millimeters

2. Tolerance, unless otherwise noted:

X.XX ± 0.05 mm

X.XXX ± 0.025 mm

3. Dimensions nominal unless otherwise noted

4. Angles 45° nominal

5. Contact areas are gold plated

6. Ground pads on bottom metal are defined by a thin

(< 1μm) oxide layer which acts as a solder stop

TOP VIEW

BOTTOM VIEW

SIDE VIEW

B41 RX

0.950

±0.10

3.000

±0.050

2.000

±0.050

ANT

B26 RX

B25 RX

2.600

1.600

0.650

0.300 X 0.300 (4X)

0.025 X 45° CHAMFER

0.100 X 45° CHAMFER

(PIN 1 LOCATOR)

0.050

ALL AROUND

PIN 1

OXIDE LAYER

(SEE NOTES)

0.300 X 0.300 (6X)

2.900 x 0.800

CFIYWW

DDXXXX

VAGO

Package Marking:

AVAGO = Avago Technologies

C = ACFM- 2024

FI = Assembly Information

Y = Year

WW = Work Week

DD = Date Code

XXXX = Assembly Lot
