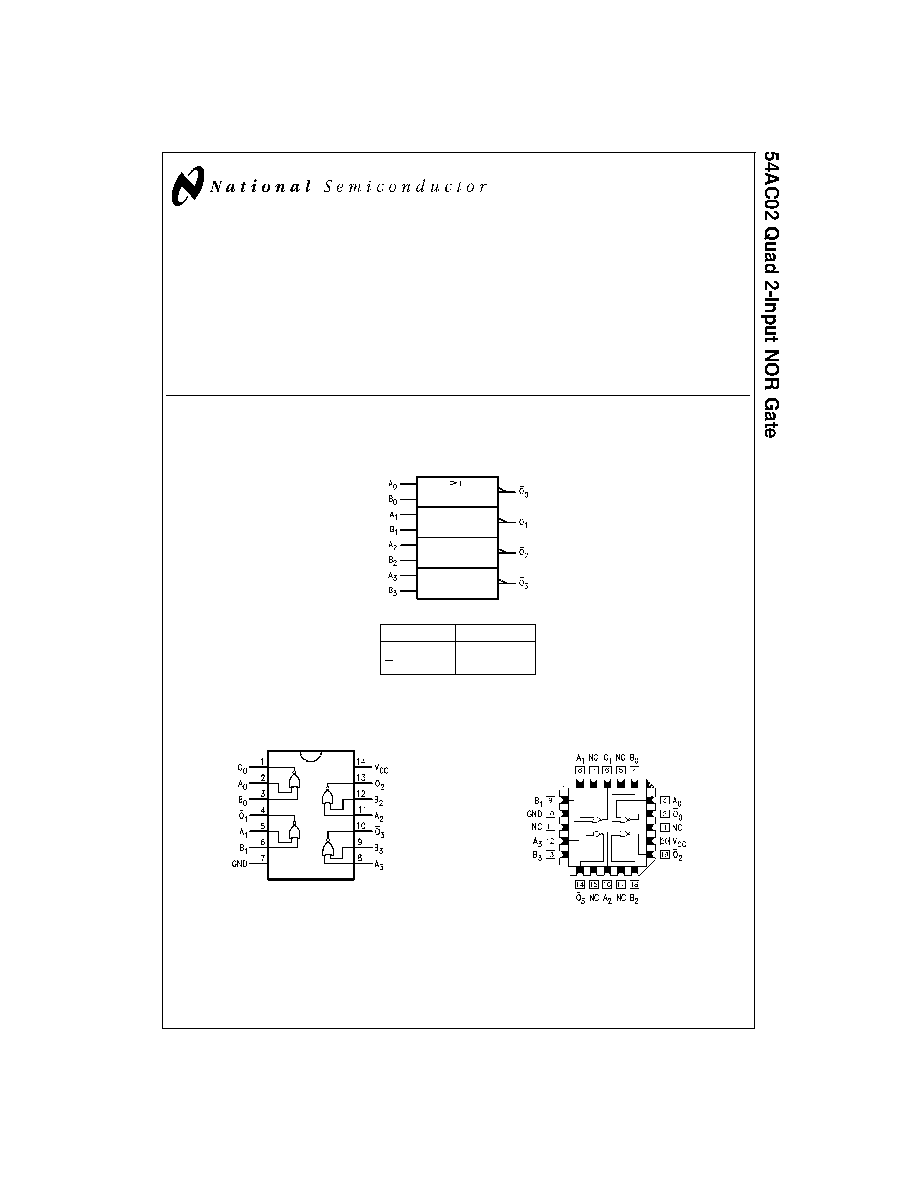

54AC02

Quad 2-Input NOR Gate

General Description

The ’AC02 contains four, 2-input NOR gates.

Features

n ICC reduced by 50% on 54AC/74AC02 only

n Outputs source/sink 24 mA

n ’ACT02 has TTL-compatible inputs

n Standard Military Drawing (SMD)

— AC02: 5962-87612

n For Military 54ACT02 device see 54ACTQ02

Logic Symbol

Pin Names

Description

A

n,Bn

Inputs

O

n

Outputs

Connection Diagrams

FACT™ is a trademark of Fairchild Semiconductor Corporation.

IEEE/IEC

DS100258-1

Pin Assignment for DIP and Flatpak

DS100258-3

Pin Assignment for LCC

DS100258-2

July 1998

© 1998 National Semiconductor Corporation

DS100258

www.national.com
