AA2214ZGSK Datenblatt(PDF) 5 Page - Kingbright Corporation

Teilenummer AA2214ZGSK
Bauteilbeschribung  2.2x1.4mm SURFACE MOUNT LED LAMP
PDF  6 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Hersteller  KINGBRIGHT [Kingbright Corporation]
Direct Link  http://www.us.kingbright.com
Logo KINGBRIGHT - Kingbright Corporation

AA2214ZGSK Datenblatt(HTML) 5 Page - Kingbright Corporation

  AA2214ZGSK Datasheet HTML 1Page - Kingbright Corporation AA2214ZGSK Datasheet HTML 2Page - Kingbright Corporation AA2214ZGSK Datasheet HTML 3Page - Kingbright Corporation AA2214ZGSK Datasheet HTML 4Page - Kingbright Corporation AA2214ZGSK Datasheet HTML 5Page - Kingbright Corporation AA2214ZGSK Datasheet HTML 6Page - Kingbright Corporation
Zoom Inzoom in Zoom Outzoom out
 5 / 6 page
background image
SPEC NO: DSAO0994
REV NO: V.1B
DATE: JAN/06/2015
PAGE: 5 OF 6
APPROVED: WYNEC
CHECKED: Allen Liu
DRAWN: P.Cheng
ERP: 1201008993
AA2214ZGSK

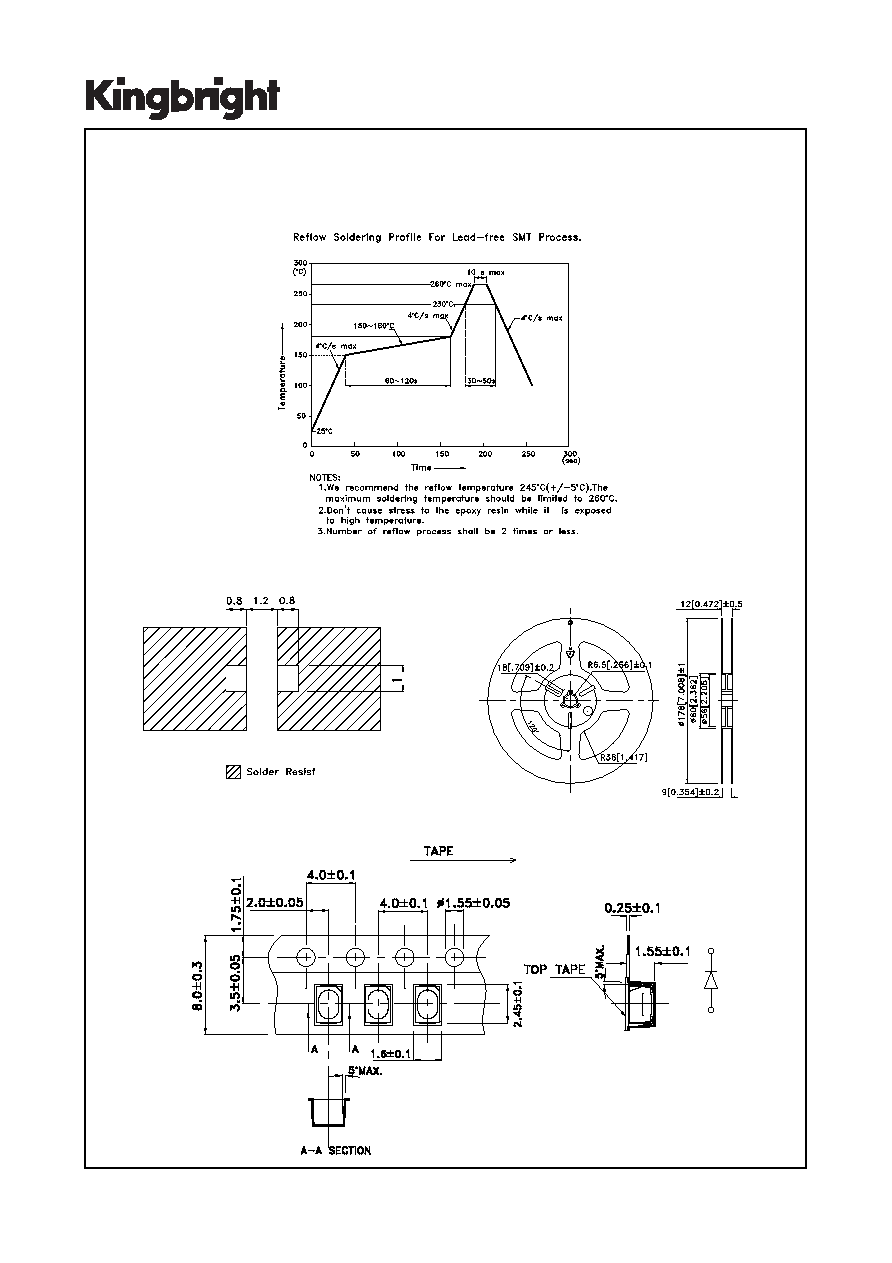

Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
Reel Dimension
Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)
Tape Dimensions
(Units : mm)
