Application schematic

STLED25

4/30

Doc ID 022323 Rev 3

1

Application schematic

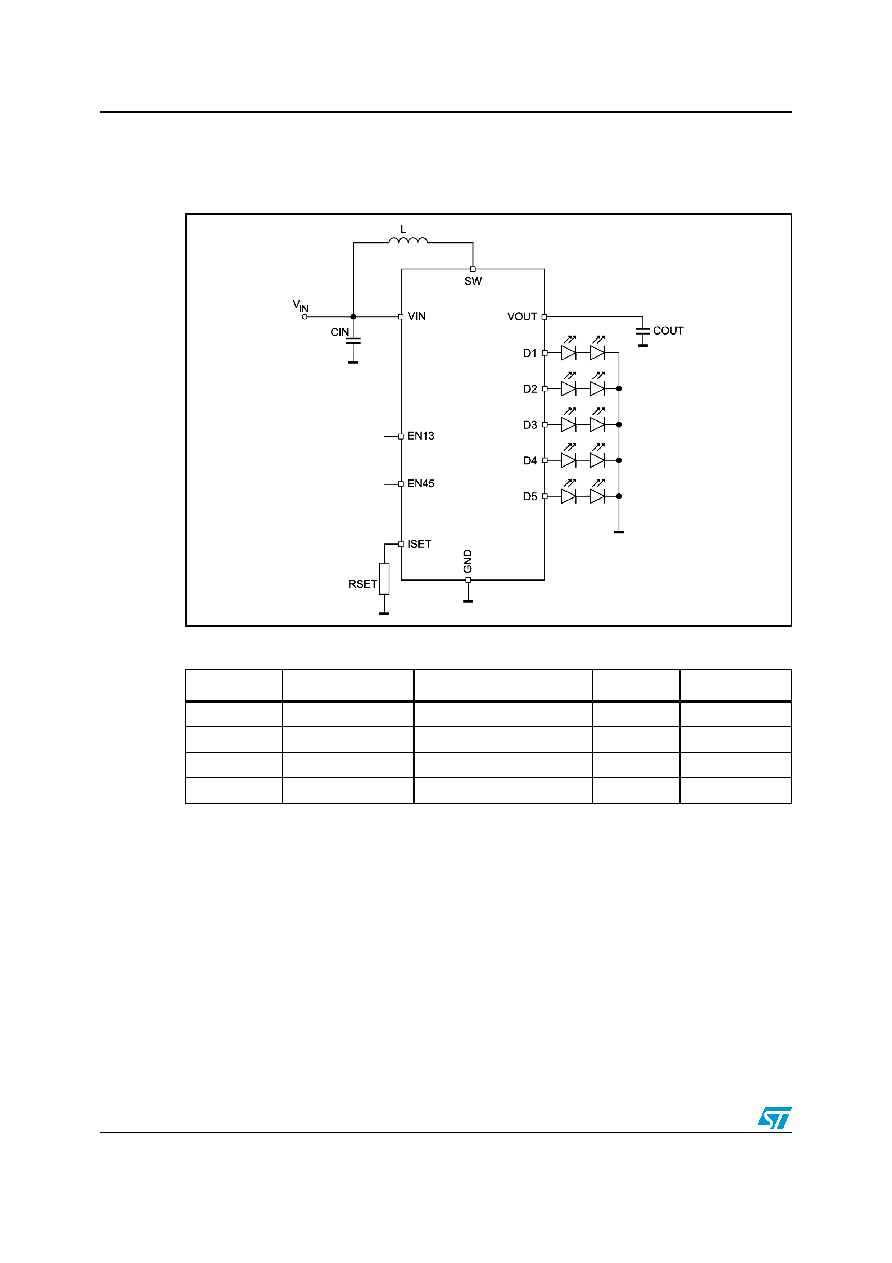

Figure 1.

STLED25 application schematic

Note:

All the above components refer to a typical application. Operation of the device is not limited

to the choice of these external components.

Table 2.

Typical external components

Component

Manufacturer

Part number

Value

Size

Murata

GRM155R60J155M

1.5 µF

0402

Murata

GRM219R61A106ME47

10 µF

0805

L

Samsung

CIG21K4R7SCE

4.7 µH

0805

1.

For 20 mA per branch.

0402
