JH40480800A
VER: 1.0
- 15 -
Issue date: 2013/08/15
JEWEL HILL ELECTRONIC CO.,LTD.

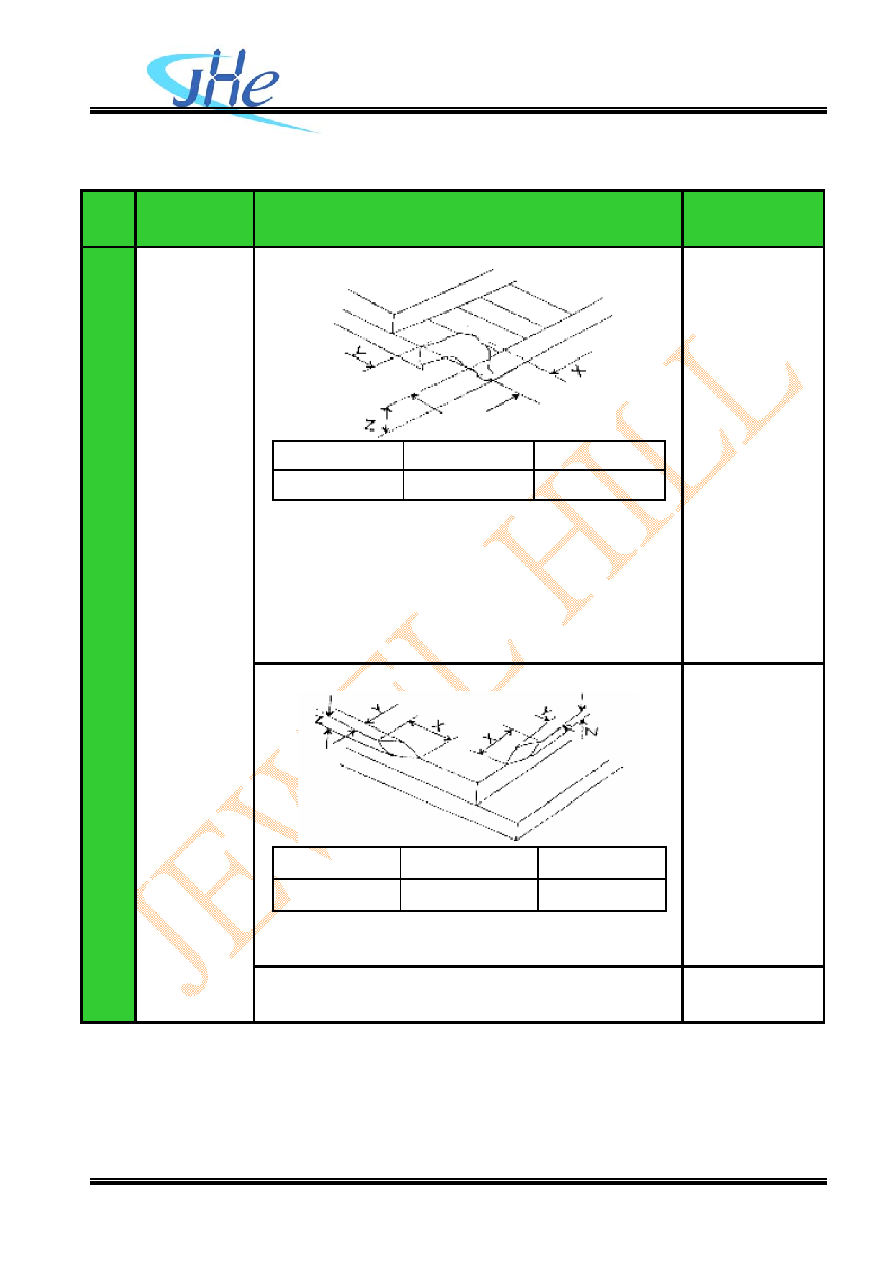

11.3.3. Cosmetic Defect
No.
Item
Inspection Standard
Classification
of defects
1) Chip on the corner
X
Y
Z
≤3.0
≤S
≤T
Remark: S=contact pad length;
T=the thickness of glass
Chips on the corner of terminal shall not be
allowed to extend into the ITO pad or expose
perimeter seal. Acceptable Quantity N≤2.
Minor
2) Chip on the edge of glass
X
Y
Z
Ignore
≤0.5
≤T
Acceptable Quantity: N≤2
Minor
1
Glass defect
3) Creak
Creaks tend to break are not allowed.
Minor
