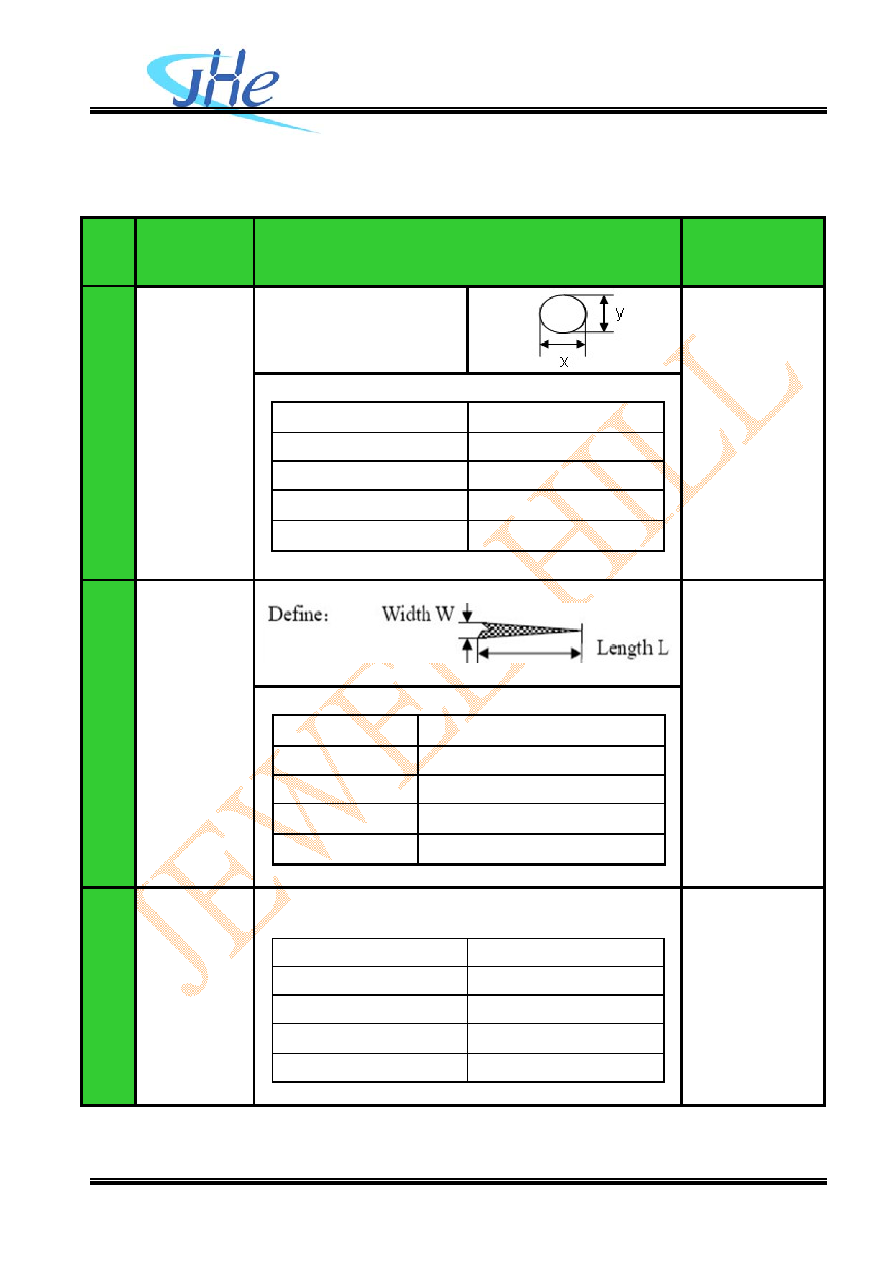

JH52480800B
VER: 1.0
- 14 -
Issue date: 2013/08/15
JEWEL HILL ELECTRONIC CO.,LTD.
11.3.2. Cosmetic Defect
No.
Item
Inspection Standard
Classification
of defects
For dark/white spot,
size Ф is defined
as Ф=(x+y)/2
1
(spot defect)
Black and
White spot
pinhole
Size Ф (mm)
Acceptable Quantity
Ф≤0.1
Ignore
0.10≤Ф≤0.15
2
0.15≤Ф≤0.2
1
0.2<Ф
0
Minor
2
(line defect)
Black and
White line
Polarizer
scratch
Width(mm)
Length(mm);Acceptable Qty
Ф≤0.03
Ignore
0.03<W≤0.05
L≤3.0; N≤2
0.05<W≤0.1
L≤2.0; N≤2
0.1<W
Define as spot defect
Minor
3
Polarizer
defect
Dent or bubble(between the polarizer and glass)
Size Ф(mm)
Acceptable Qty
Ф≤0.10
Ignor
0.10<Ф≤0.20
2
0.20<Ф≤0.30
1
0.30<Ф
0
Minor
