CDBA120LL Datenblatt(PDF) 3 Page - Comchip Technology

Teilenummer CDBA120LL
Bauteilbeschribung  SMD Schottky Barrier Rectifier
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Hersteller  COMCHIP [Comchip Technology]
Direct Link  http://www.comchiptech.com
Logo COMCHIP - Comchip Technology

CDBA120LL Datenblatt(HTML) 3 Page - Comchip Technology

  CDBA120LL Datasheet HTML 1Page - Comchip Technology CDBA120LL Datasheet HTML 2Page - Comchip Technology CDBA120LL Datasheet HTML 3Page - Comchip Technology CDBA120LL Datasheet HTML 4Page - Comchip Technology
Zoom Inzoom in Zoom Outzoom out
 3 / 4 page
background image
SMD Schottky Barrier Rectifier
www.comchip.com.tw
COMCHIP
COMCHIP
0
100
200
300
400
500
600
700
FORWARD VOLTAGE (MILLIVOLTS)
FORWARDCURRENT
(MILLIAMPERES)
o
Tj=100 C
o
Tj=25 C

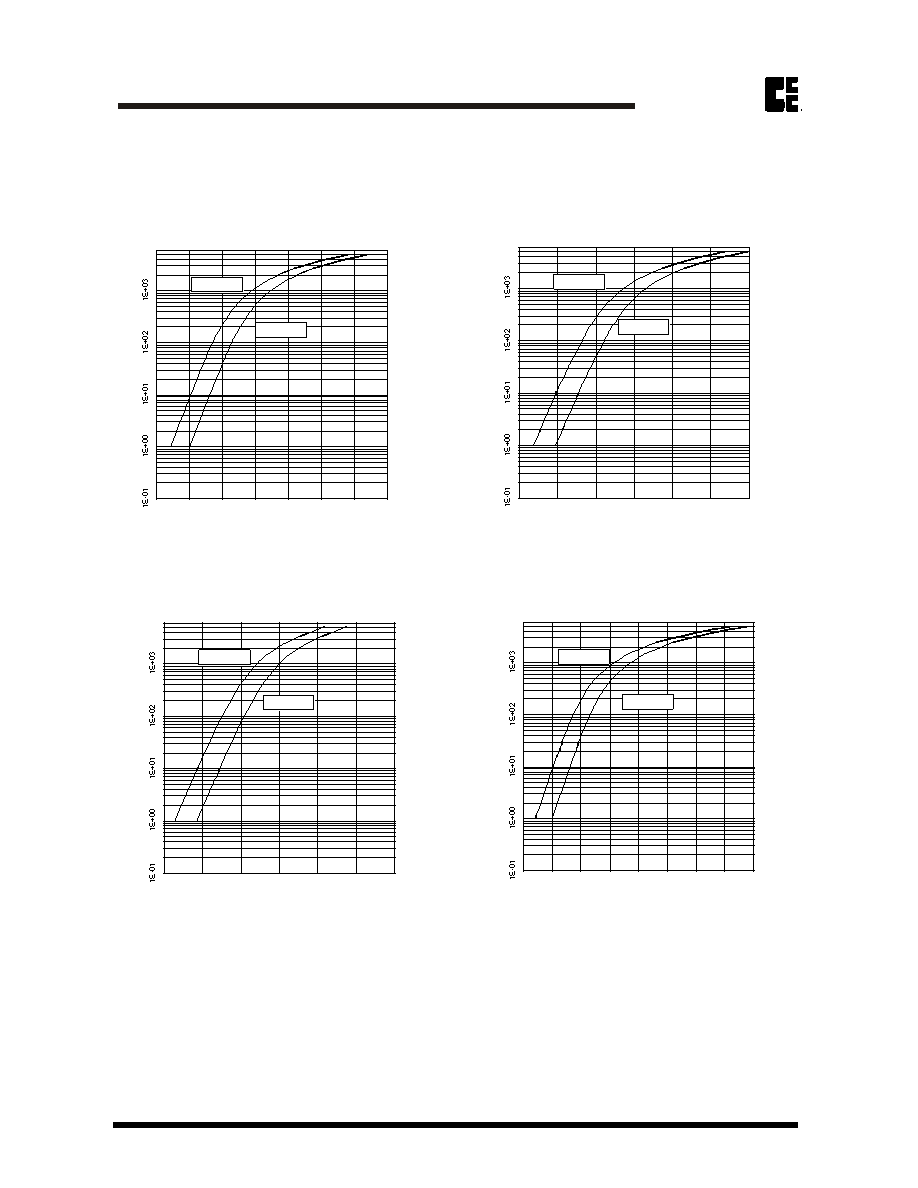

FIG. 5 (For CDBA120L)
0
100
200
300
400
500
600
FORWARD VOLTAGE (MILLIVOLTS)
FORWARDCURRENT
(MILLIAMPERES)
o
Tj=100 C
o
Tj=25 C
FIG. 6 (For CDBA120LL)
0
100
200
300
400
500
600
FORWARD VOLTAGE (MILLIVOLTS)
FORWARDCURRENT
(MILLIAMPERES)
o
Tj=100 C
o
Tj=25 C
FIG. 7 (For CDBA120SL)
0
100
200
300
400
500
600
700
800
FORWARD VOLTAGE (MILLIVOLTS)
FORWARDCURRENT
(MILLIAMPERES)
o
Tj=100 C
o
Tj=25 C
FIG. 8 (For CDBA140L)
TYPICAL FORWARD
CHARACTERISTICS
TYPICAL FORWARD
CHARACTERISTICS
TYPICAL FORWARD
CHARACTERISTICS
TYPICAL FORWARD
CHARACTERISTICS
CDBA120L thru CDBA140
SL
MDS0210009B
Page 3
