46
AT86RF211
1942C–WIRE–06/02

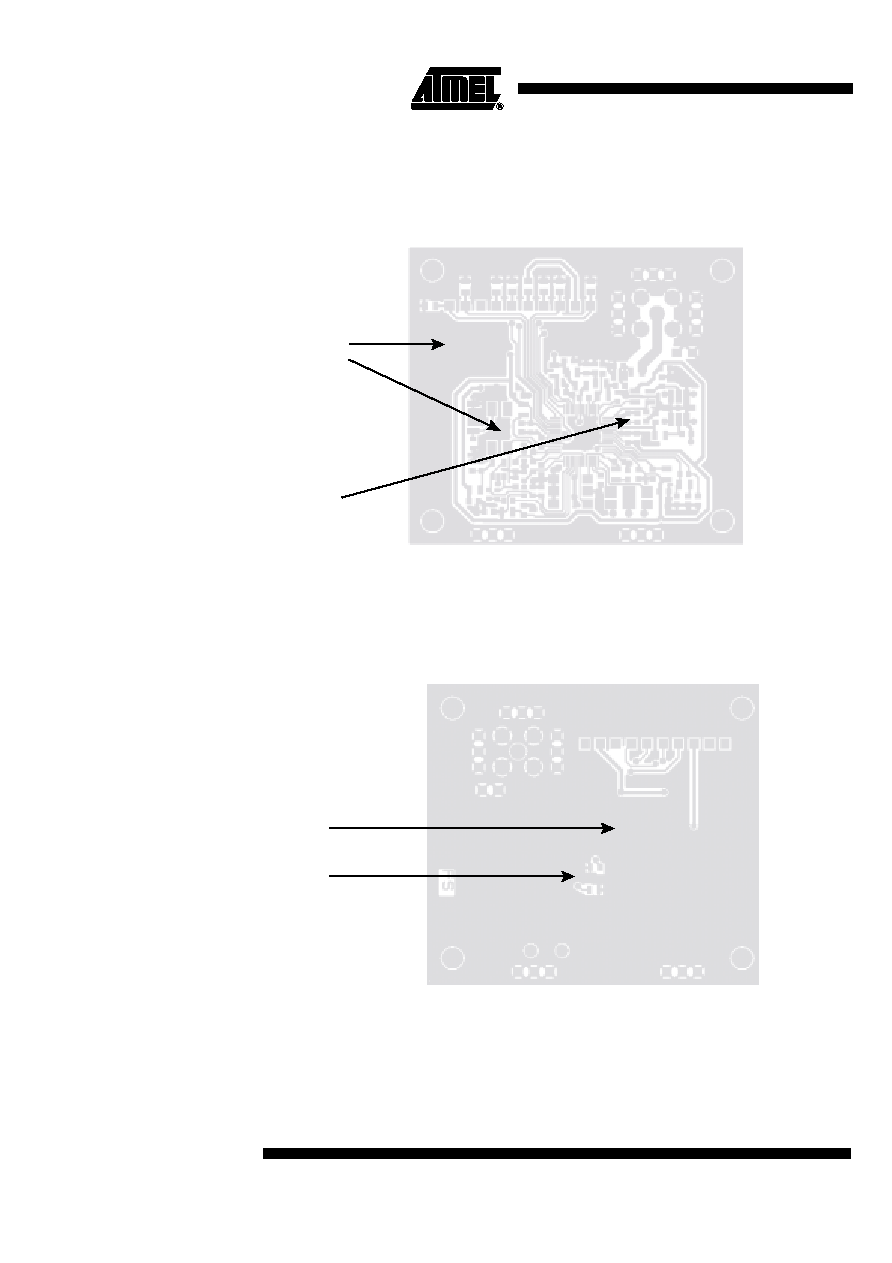

Layout
Reference Design Top Layer
Reference Design Bottom
Layer
Each unused area must be filled
with copper and connected to the
bottom side ground plane
Decoupling capacitors remain
close to the supply pins
One-block ground plane
with no slot under the
whole RF area
This small slot is allowed
as it is under the RF211: thus
there is no track above
