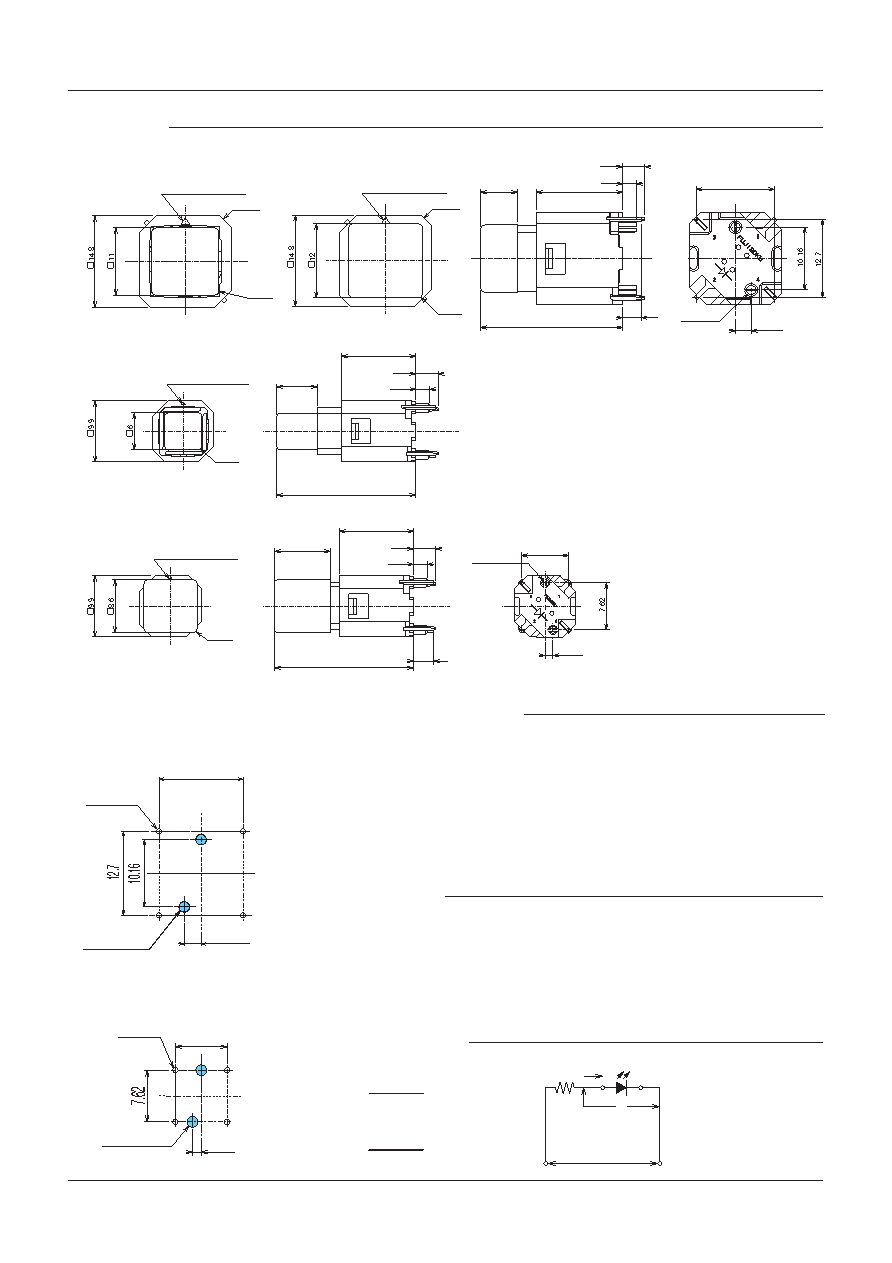

■Dimension

CFPB

2-C1.75

4-R0.8

2-C1.75

4-R0.8

14

23

6

2.2

3.6

3

12.7

2.54

2-φ1.5

4-R0.5

2.2

12

3.6

23

6.5

4-R0.5

2.2

9

12

3.6

3

23

2-φ1.5

7.62

1.27

■Pad Layouts

■Soldering SpeciÄcations

（1）flow soldrering

260℃ max., 3 ∼ 5 sec. max. (total 10 sec. max)

Pre Heating: 80 ∼ 120℃ , 120 sec. max.

No. of flows: 1 time max.

（2）Manual soldering

Device : Solder iron

380℃ Max, 3 sec Max

■Flux Cleaning

（1）The CFPB series are not washable. To wash the PC board, clean the soldering surface

of the PC board with a brush so that the switch is not exposed to the cleaning solution.

（2）Solvent : Alcohol type

■LED Drive circuit

Ｅ

Ｒ

●Case of static lighting system.

 

R＝

●Case of dynamic lighting system,

 

R＝

7.62

1.27

1

3

4

2

□ 6㎜/9㎜ Sq.

4-φ0.8

2-φ1.6

□ 11㎜/12㎜ Sq.

12.7

2.54

4

3

2

1

2-φ1.6

4-φ0.8

□ 11mm Sq.

□ 6mm Sq

□ 9mm Sq

□ 12mm Sq.

Direction recognition mark

Direction recognition mark

Direction recognition mark

Direction recognition mark
