UG:301
vicorpower.com
Applications Engineering: 800 927.9474
Page 11
+
DC
AMMETER 0-5A
PS1
0-100V DC
5A
+
-
+
-
DMM
DC
ELECT.
LOAD
0-30A
MIN
DMM
OSCILLOSCOPE DC-20MHZ BW
+ IN
- IN
CH1
CH2
-
ISOLATED DIFF.
AMPLIFIER
+
-

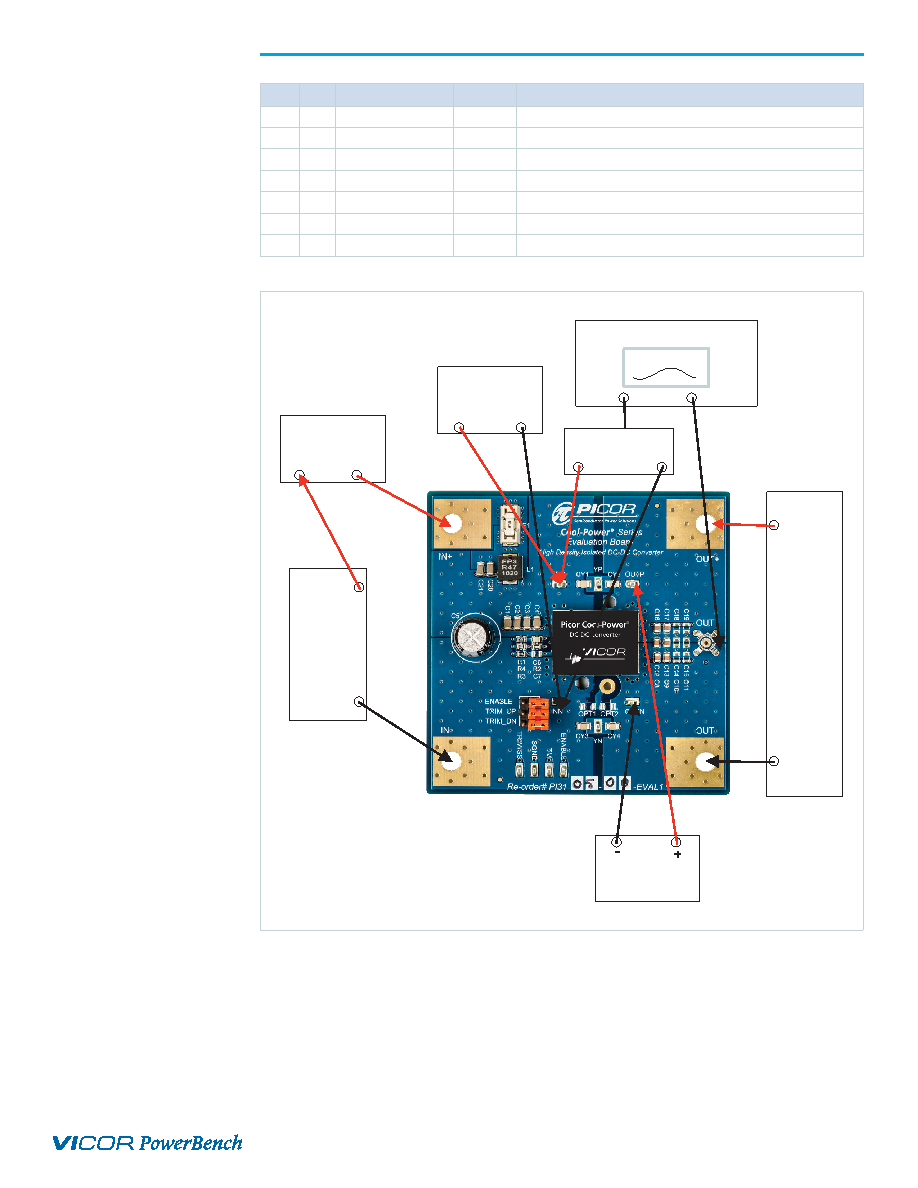

Figure 6.
PI31xx-xx-EVAL1 Test Setup
Item
Qty
Part #
U/M
Description
1.
1
PI31xx-xx-EVAL1
EA
Evaluation PCB Assembly
2.
1
32786
EA
6.3mm Heatsink Assembly
3.
1
32784
EA
11mm Heatsink Assembly
4.
1
33855
EA
Heatsink Grounding Clip
5.
4
32434
EA
Heatsink Pushpins
6.
4
N/A
EA
Screw, 6-32
7.
4
N/A
EA
Nut, 6-32
Table 12.
PI31xx-xx-EVAL1
Packing List
