 2016 Microchip Technology Inc.
DS20005598A-page 5
PL130-07
2.0

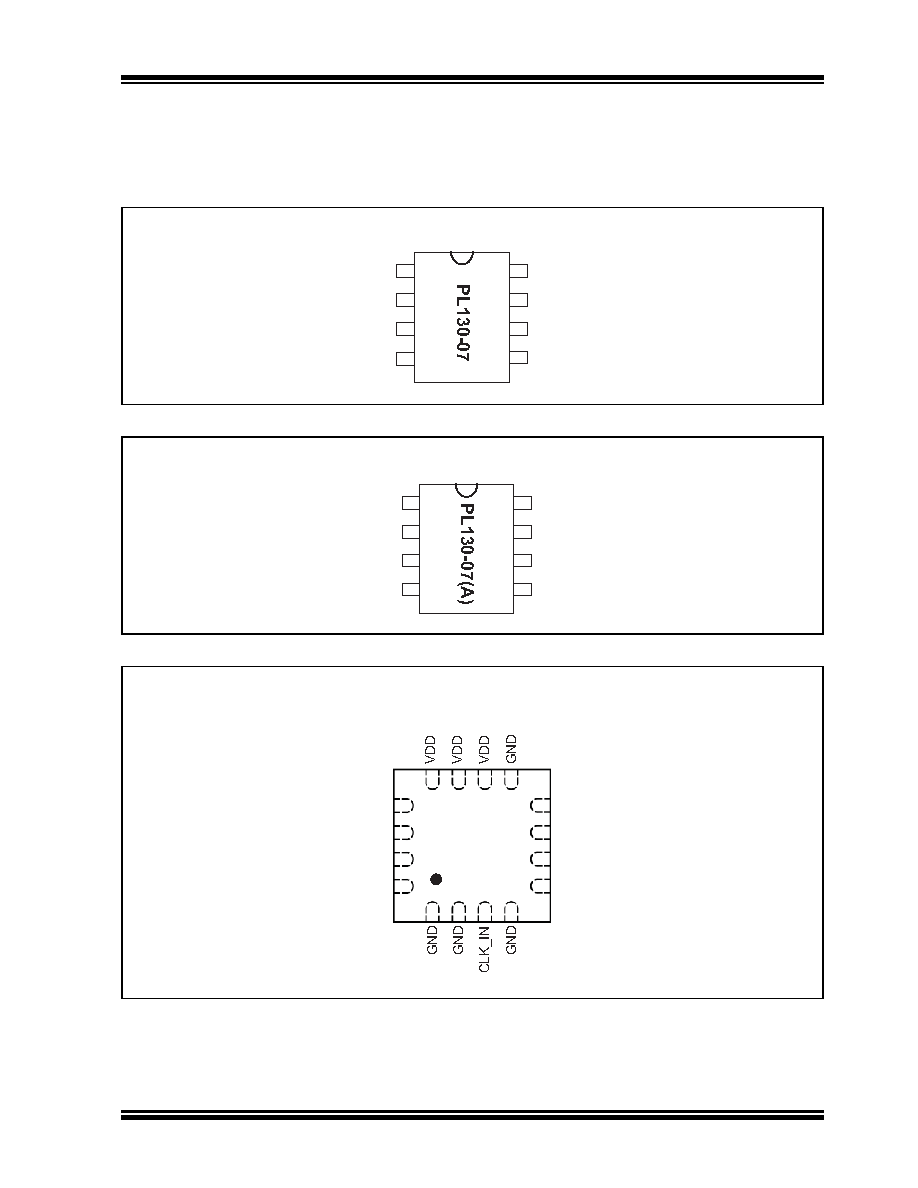

PIN DESCRIPTIONS
The descriptions of the pins are listed in Table 2-1.
Pin Configurations
PL130-07
(Top View)
1
2
3
45
6
7
8
GND
CLK_IN
GND
VDD
DRV_SEL^
GND
CLK_OUT
VDD
SOIC-8L
PL130-07(A)
(Top View)
1
2
3
45
6
7
8
VDD
DRV_SEL
GND
OE
CLK_OUT
DNC
CLK_IN
VDD
TSSOP-8L
PL130-07(A)
(Top View)
PL130-07(A)
CLK_OUT
N/C
GND
VDD
12
3
4
12
11
10
9
13
14
15
16
8
7
6
5
GND
DRV_SEL
GND
OE
QFN-16
