ADA4530-1

Data Sheet

Rev. A | Page 12 of 50

TCVOS (µV/°C)

120

100

VSY = 4.5V

VCM = VSY/2

574 CHANNELS

–40°C ≤ TA ≤ 0°C

x = –0.29µV/°C

σ = 0.42µV/°C

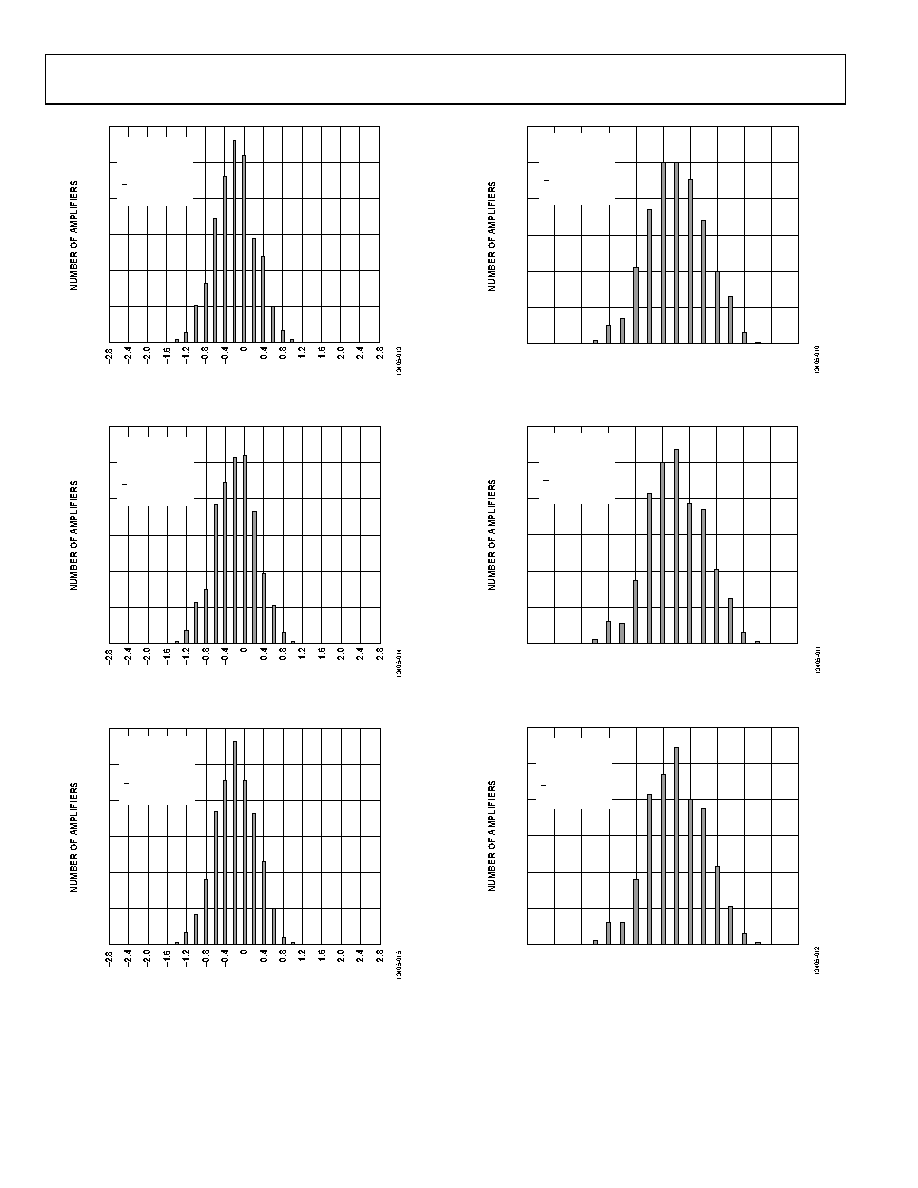

Figure 10. Input Offset Voltage Drift Distribution, −40°C ≤ TA ≤ 0°C, VSY = 4.5 V

TCVOS (µV/°C)

120

100

VSY = 10V

VCM = VSY/2

574 CHANNELS

–40°C ≤ TA ≤ 0°C

x = –0.29µV/°C

σ = 0.42µV/°C

Figure 11. Input Offset Voltage Drift Distribution, −40°C ≤ TA ≤ 0°C, VSY = 10 V

TCVOS (µV/°C)

120

100

VSY = 16V

VCM = VSY/2

574 CHANNELS

–40°C ≤ TA ≤ 0°C

x = –0.29µV/°C

σ = 0.41µV/°C

Figure 12. Input Offset Voltage Drift Distribution, −40°C ≤ TA ≤ 0°C, VSY = 16 V

120

100

–0.5 –0.4 –0.3 –0.2 –1.0

0.1

0.2

0.3

0.4

0.5

TCVOS (µV/°C)

VSY = 4.5V

VCM = VSY/2

574 CHANNELS

0°C ≤ TA ≤ 125°C

x = –0.025µV/°C

σ = 0.107µV/°C

Figure 13. Input Offset Voltage Drift Distribution, 0°C ≤ TA ≤ 125°C, VSY = 4.5 V

120

100

–0.5 –0.4 –0.3 –0.2 –1.0

0.1

0.2

0.3

0.4

0.5

TCVOS (µV/°C)

VSY = 10V

VCM = VSY/2

574 CHANNELS

0°C ≤ TA ≤ 125°C

x = –0.025µV/°C

σ = 0.107µV/°C

Figure 14. Input Offset Voltage Drift Distribution, 0°C ≤ TA ≤ 125°C, VSY = 10 V

120

100

–0.5 –0.4 –0.3 –0.2 –1.0

0.1

0.2

0.3

0.4

0.5

TCVOS (µV/°C)

VSY = 16V

VCM = VSY/2

574 CHANNELS

0°C ≤ TA ≤ 125°C

x = –0.024µV/°C

σ = 0.107µV/°C

Figure 15. Input Offset Voltage Drift Distribution, 0°C ≤ TA ≤ 125°C, VSY = 16 V
