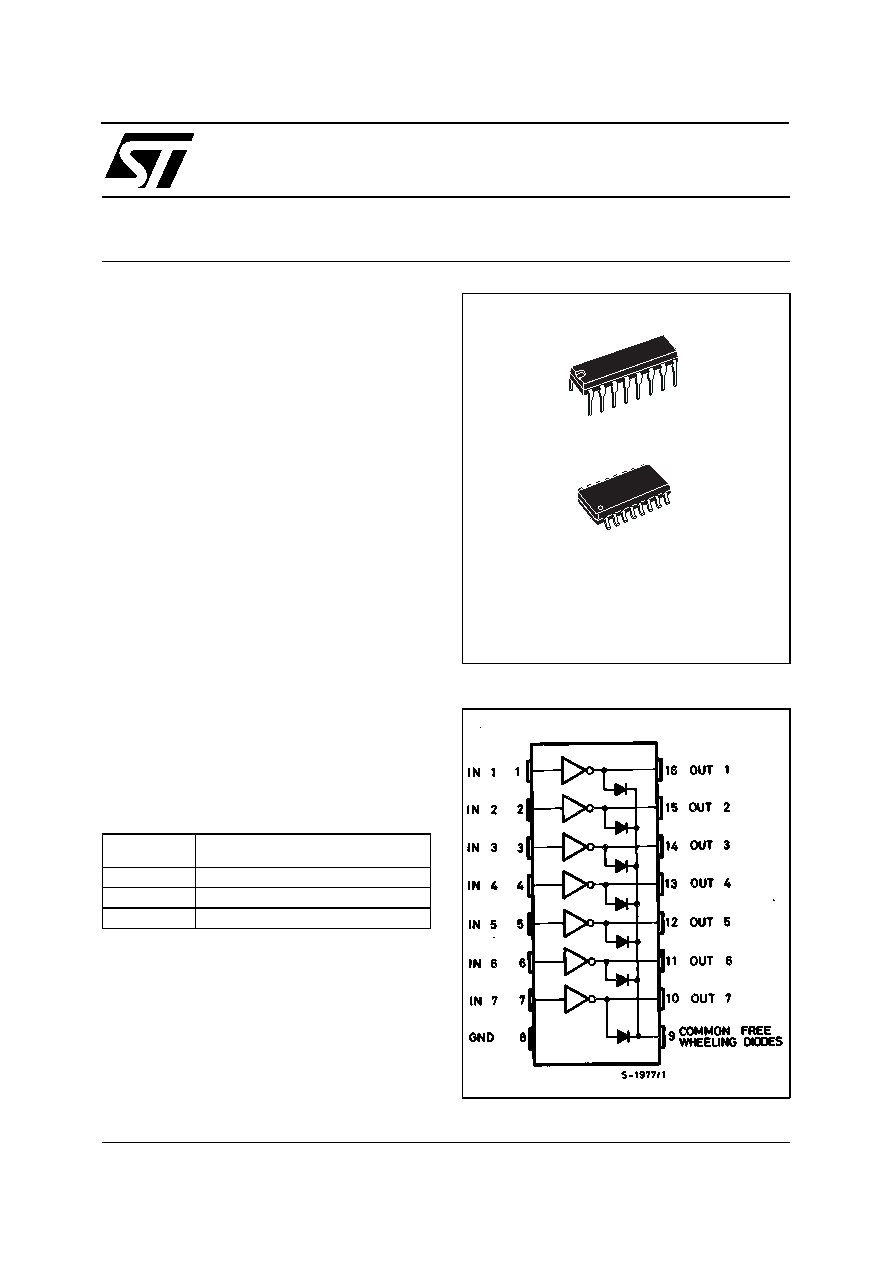

1 / 7 page  ULQ2002A - ULQ2004A ULQ2001A - ULQ2003A February 2002 SEVEN DARLINGTON ARRAYS . SEVEN DARLINGTONS PER PACKAGE . EXTENDED TEMPERATURE RANGE (–40 to 105 °C) . OUTPUT CURRENT 500 mA PER DRIVER (600 mA PEAK) . OUTPUT VOLTAGE 50 V . INTEGRAL SUPPRESSION DIODES FOR IN- DUCTIVE LOADS . OUTPUTS CAN BE PARALLELED FOR HIGHER CURRENT . TTL/CMOS/PMOS/DTL COMPATIBLE INPUTS . INPUTS PINNED OPPOSITE OUTPUTS TO SIMPLIFY LAYOUT DESCRIPTION The ULQ2001A, ULQ2002A, ULQ2003 and ULQ2004A are high voltage, high current darlington arrays each containing seven open collector dar- lington pairs with common emitters. Each channel is rated at 500 mA and can withstand peak currents of 600 mA. Suppression diodes are included for induc- tive load driving and the inputs are pinned opposite the outputs to simplify board layout. The four versions interface to all common logic fami- lies : ULQ2001A General Purpose, DTL, TTL, PMOS, CMOS ULQ2002A 14-25V PMOS ULQ2003A 5V TTL, CMOS ULQ2004A 6-15V CMOS, PMOS These versatile devices are useful for driving a wide range of loads including solenoids, relays DC mo- tors, LED displays filament lamps, thermal print- heads and high power buffers. The ULQ2001A/2002A/2003A and 2004A are sup- plied in 16 pin plastic DIP packages with a copper leadframe to reduce thermal resistance. They are available also in small outline package (SO-16) as ULQ2001D1/2002D1/2003D1/2004D1. DIP16 SO16 ORDERING NUMBERS: ULQ2001A/2A/3A/4A (DIP16) ULQ2001D1/2D1/3D1/4D1 (SO16) ® PIN CONNECTION 1/7 |
