FT120 USB DEVICE CONTROLLER WITH PARALLEL BUS IC
Datasheet Version 1.2
Clearance No.: FTDI#
291
9.3 QFN-28 Package Dimensions

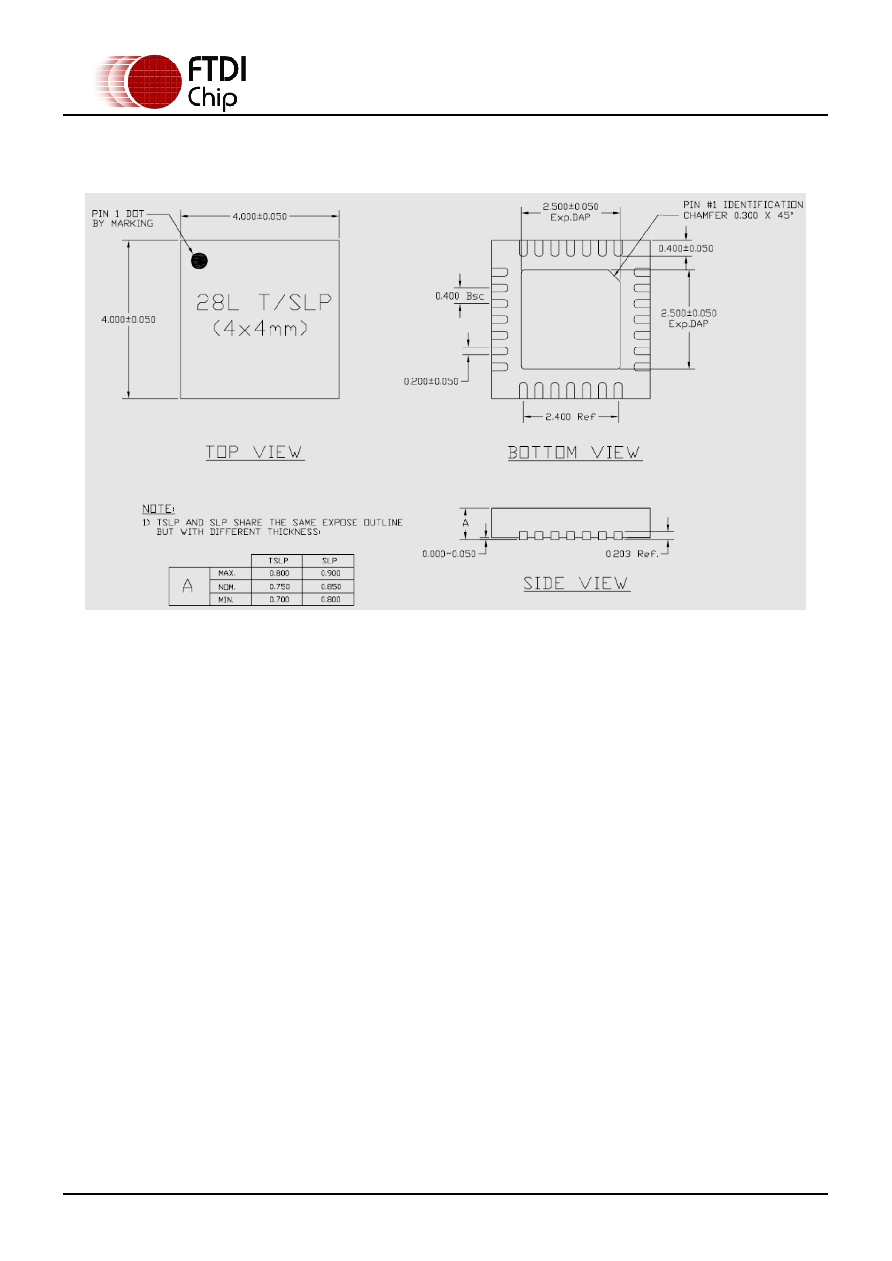

Figure 9-3 QFN-28 Package Dimensions
The FT120Q is supplied in a RoHS compliant leadless QFN-28 package. The package is lead ( Pb ) free,
and uses a ‘green’ compound. The package is fully compliant with European Union directive 2002/95/EC.
This package is nominally 4.00mm x 4.00mm. The solder pads are on a 0.40mm pitch. The above
mechanical drawing shows the QFN-28 package. All dimensions are in millimetres.
The centre pad on the base of the FT120Q is internally connected to GND pin, and can be left
unconnected, or connected to ground (recommended).
