AD8450
Data Sheet
Rev. B | Page 30 of 41
POWER-OFF SEQUENCE
To power off the device, take the following steps:
1. Turn off the input signals.
2. Turn off DVCC.
3. Turn off AVEE.
4. Turn off AVCC.
The positive analog supply (AVCC) and the negative analog
supply (AVEE) may be turned off simultaneously.
PGIA CONNECTIONS
For a description of the PGIA, see the Theory of Operation
section, Figure 49, and Figure 51. The internal gains of the
PGIA (26, 66, 133, and 200) are selected by hardwiring the
appropriate pin combinations (see Table 5).
Table 5. PGIA Gain Connections
PGIA Gain
Connect RGP (Pin 2) to
Connect RGN (Pin 19) to
26
ISGP0 (Pin 4)
ISGN0 (Pin 17)
66
ISGP1 (Pin 6)
ISGN1 (Pin 15)
133
ISGP2 (Pin 8)
ISGN2 (Pin 13)
200
ISGP3 (Pin 9)
ISGN3 (Pin 12)
If a different gain value is desired, connect 10 kΩ feedback resistors
between the inverting inputs of the PGIA preamplifiers (RGP
and RGN pins) and the outputs of the PGIA preamplifiers (RFBP
and RFBN pins). Also, connect a gain resistor (RG) between the
RGP and RGN pins. When using external resistors, the gain of
the PGIA is
Gain = 2 × (1 + 20 kΩ/RG)
BATTERY
LEVEL
SHIFTER
ADP1972
PWM
VCTRL
SENSE
RESISTOR
ISVP
ISVN
BVPx
BVNx
AVCC
OUTPUT
DRIVERS
BATTERY
CURRENT
AVEE
CV
BUFFER
+
+
VINT
BUFFER
VSET
ISET
C
D
C
D
C
D
VINT
ISMEA
BVMEA
OCPS
OCPR
OVPR VREF
OVERCURRENT
COMPARATOR
OVERVOLTAGE
COMPARATOR
FAULT
OVPS
OUTPUT
FILTER
PGDA
+
+
PGIA
DC-TO-DC
POWER CONVERTER
SET
BATTERY
CURRENT
SET
BATTERY
VOLTAGE
AD8450
CONTROLLER
CONSTANT
VOLTAGE LOOP
FILTER AMPLIFIER
CC AND CV
GATES
CONSTANT
CURRENT LOOP
FILTER AMPLIFIER
MODE
SWITCHES (3)
C = CHARGE
D = DISCHARGE
EXTERNAL PASSIVE
COMPENSATION
NETWORK
NOR

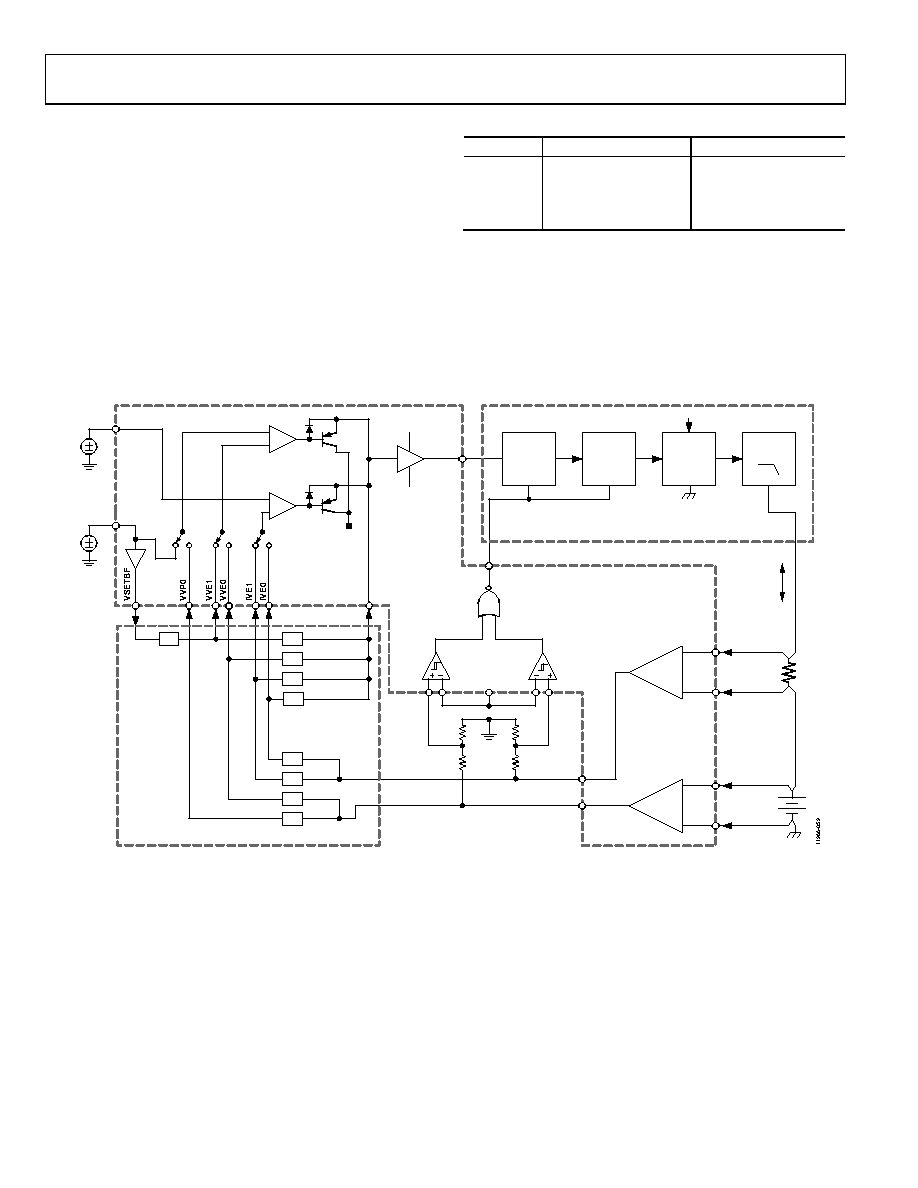

Figure 59. Complete Signal Path of a Battery Test or Formation System Suitable for Li-Ion Batteries
