ARGON - LED

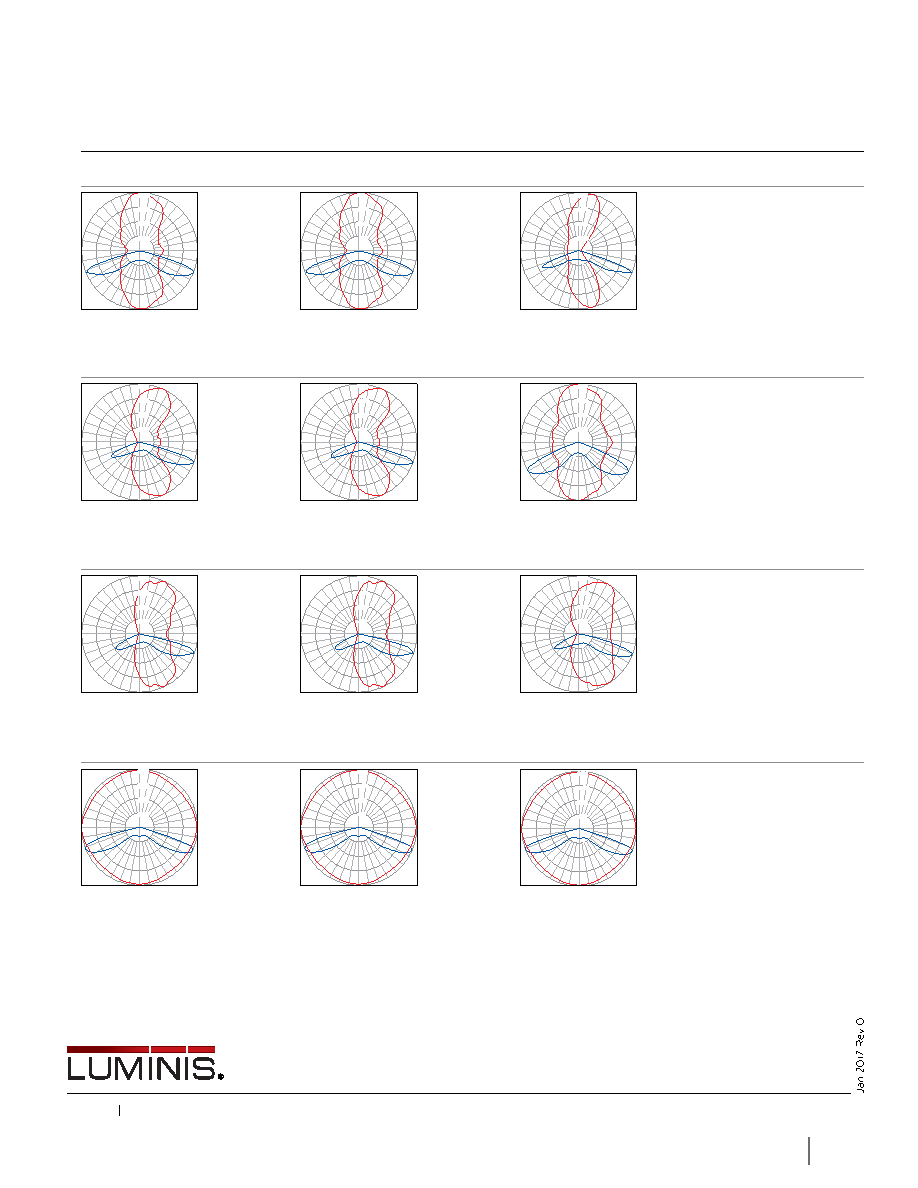

TYPICAL PHOTOMETRY SUMMARY

Please visit our web site www.luminis.com for complete I.E.S formatted download data.

All published photometric data are executed and certified by an independent testing laboratory.

TYPE II

AR25-L1W30r1-R2

AR35-L1W30r1-R2

Total Lumens: 4170 Lms

Total Input Watts: 34.33W

Efficacy: 121.47 Lms/W

BUG Rating: B2-U0-G2

Cutoff Class: Full Cutoff

CCT/CRI: 4000K/80

Max Candela:

2312 @ 85ºH/67.5ºV

AR25-L2W30r1-R2

AR35-L2W30r1-R2

Total Lumens: 7994 Lms

Total Input Watts: 68.66W

Efficacy: 116.43 Lms/W

BUG Rating: B3-U0-G3

Cutoff Class: Full Cutoff

CCT/CRI: 4000K/80

Max Candela:

5935 @ 77.5ºH/67.5ºV

TYPE III

AR25-L1W30r1-R3

AR35-L1W30r1-R3

Total Lumens: 4395 Lms

Total Input Watts: 38.3W

Efficacy: 114.75 Lms/W

BUG Rating: B2-U0-G2

Cutoff Class: Full Cutoff

CCT/CRI: 4000K/80

Max Candela:

2718 @ 65ºH/70ºV

AR25-L2W30r1-R3

AR35-L2W30r1-R3

Total Lumens: 8697 Lms

Total Input Watts: 75.59W

Efficacy: 115.05 Lms/W

BUG Rating: B3-U0-G3

Cutoff Class: Full Cutoff

CCT/CRI: 4000K/80

Max Candela:

4515 @ 90ºH/60ºV

TYPE IV

AR25-L1W30r1-R4

AR35-L1W30r1-R4

Total Lumens: 4493 Lms

Total Input Watts: 38.25W

Efficacy: 117.46 Lms/W

BUG Rating: B2-U1-G1

Cutoff Class: Full Cutoff

CCT/CRI: 4000K/80

Max Candela:

2740 @ 65ºH/70ºV

AR25-L2W30r1-R4

AR35-L2W30r1-R4

Total Lumens: 8482 Lms

Total Input Watts: 75.21W

Efficacy: 112.78 Lms/W

BUG Rating: B2-U1-G2

Cutoff Class: Full Cutoff

CCT/CRI: 4000K/80

Max Candela:

4829 @ 57.5ºH/67.5ºV

TYPE V

AR25-L1W30r1-R5

AR35-L1W30r1-R5

Total Lumens: 4243 Lms

Total Input Watts: 35.71W

Efficacy: 118.82 Lms/W

BUG Rating: B3-U0-G1

Cutoff Class: Full Cutoff

CCT/CRI: 4000K/80

Max Candela:

1684 @ 67.5ºV

AR25-L2W30r1-R5

AR35-L2W30r1-R5

Total Lumens: 7937 Lms

Total Input Watts: 68.67W

Efficacy: 115.58 Lms/W

BUG Rating: B3-U0-G2

Cutoff Class: Full Cutoff

CCT/CRI: 4000K/80

Max Candela:

3221 @ 65ºV

AR25-L1W18r0-R2

AR35-L1W18r0-R2

Total Lumens: 2619 Lms

Total Input Watts: 18.5W

Efficacy: 141.57 Lms/W

BUG Rating: B2-U0-G2

Cutoff Class: Full Cutoff

CCT/CRI: 4000K/80

Max Candela:

1452 @ 85ºH/67.5ºV

AR25-L1W18r0-R3

AR35-L1W18r0-R3

Total Lumens: 2760 Lms

Total Input Watts: 18.5W

Efficacy: 149.19 Lms/W

BUG Rating: B1-U0-G1

Cutoff Class: Full Cutoff

CCT/CRI: 4000K/80

Max Candela:

1707 @ 65ºH/70ºV

AR25-L1W18r0-R4

AR35-L1W18r0-R4

Total Lumens: 2822 Lms

Total Input Watts: 18.5W

Efficacy: 152.54 Lms/W

BUG Rating: B1-U1-G1

Cutoff Class: Full Cutoff

CCT/CRI: 4000K/80

Max Candela:

1720 @ 65ºH/70ºV

AR25-L1W18r0-R5

AR35-L1W18r0-R5

Total Lumens: 2665 Lms

Total Input Watts: 18.5W

Efficacy: 144.05 Lms/W

BUG Rating: B2-U0-G1

Cutoff Class: Full Cutoff

CCT/CRI: 4000K/80

Max Candela:

1057 @ 180ºH/67.5ºV

1452

1089

726

363

1707

1280

853

427

1721

1291

860

430

1058

793

528

264
