CY8CKIT-059 PSoC® 5LP Prototyping Kit Guide, Doc. #: 001-96498 Rev. *G
29
Hardware
4.2.6.3
LEDs
The PSoC 5LP Prototyping Kit contains three LEDs:
■
Amber LED: Indicates that the board is powered from the PCB USB connector. This LED will not
light when the board is powered from the micro-USB connector or from VDD or VTARG directly.
■
Green LED: Indicates the KitProg status, connected to P3.1 of the KitProg PSoC 5LP device. For
more details on the KitProg status LED, refer to the KitProg User Guide.
■
Blue LED: This is the user LED, connected to P2.1 of the target PSoC 5LP device.

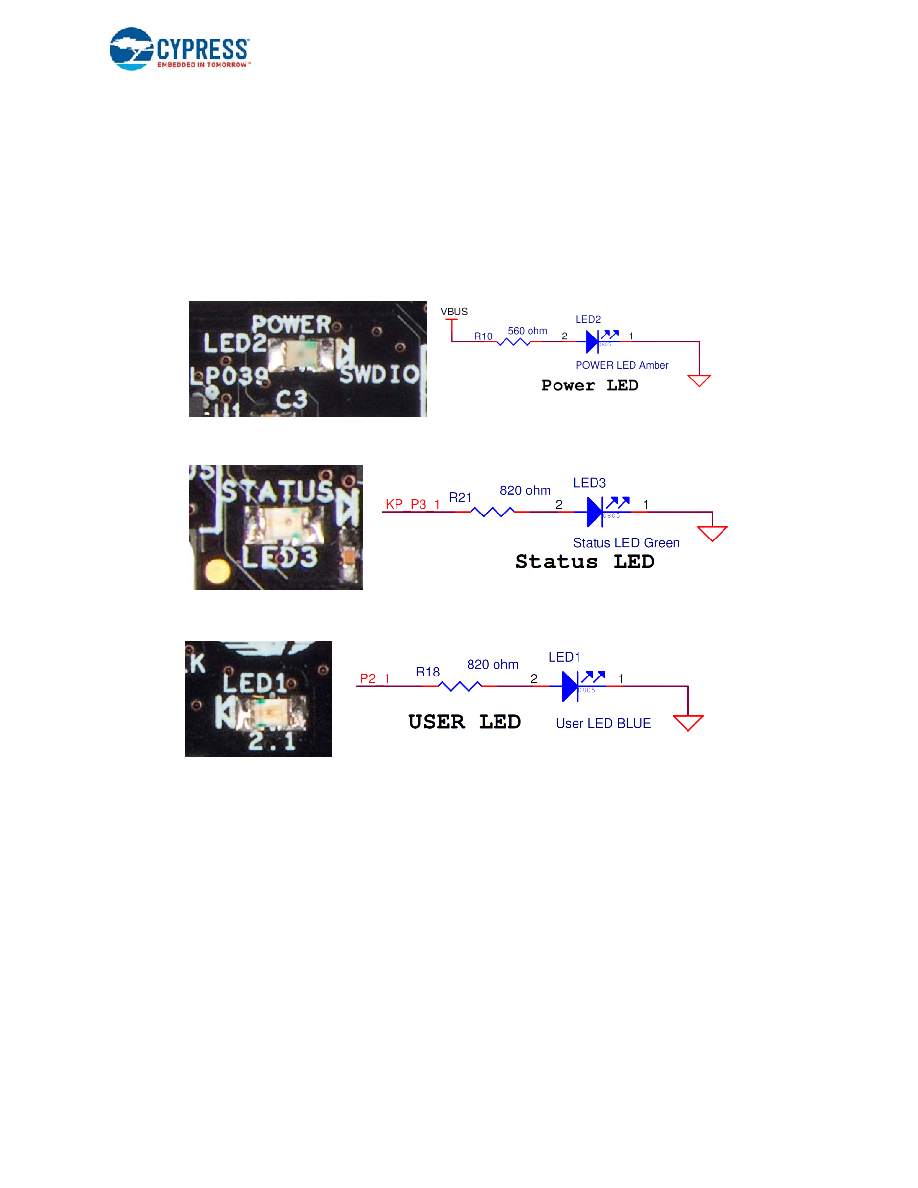

Figure 4-11. Power LED
Figure 4-12. Status LED
Figure 4-13. User LED
