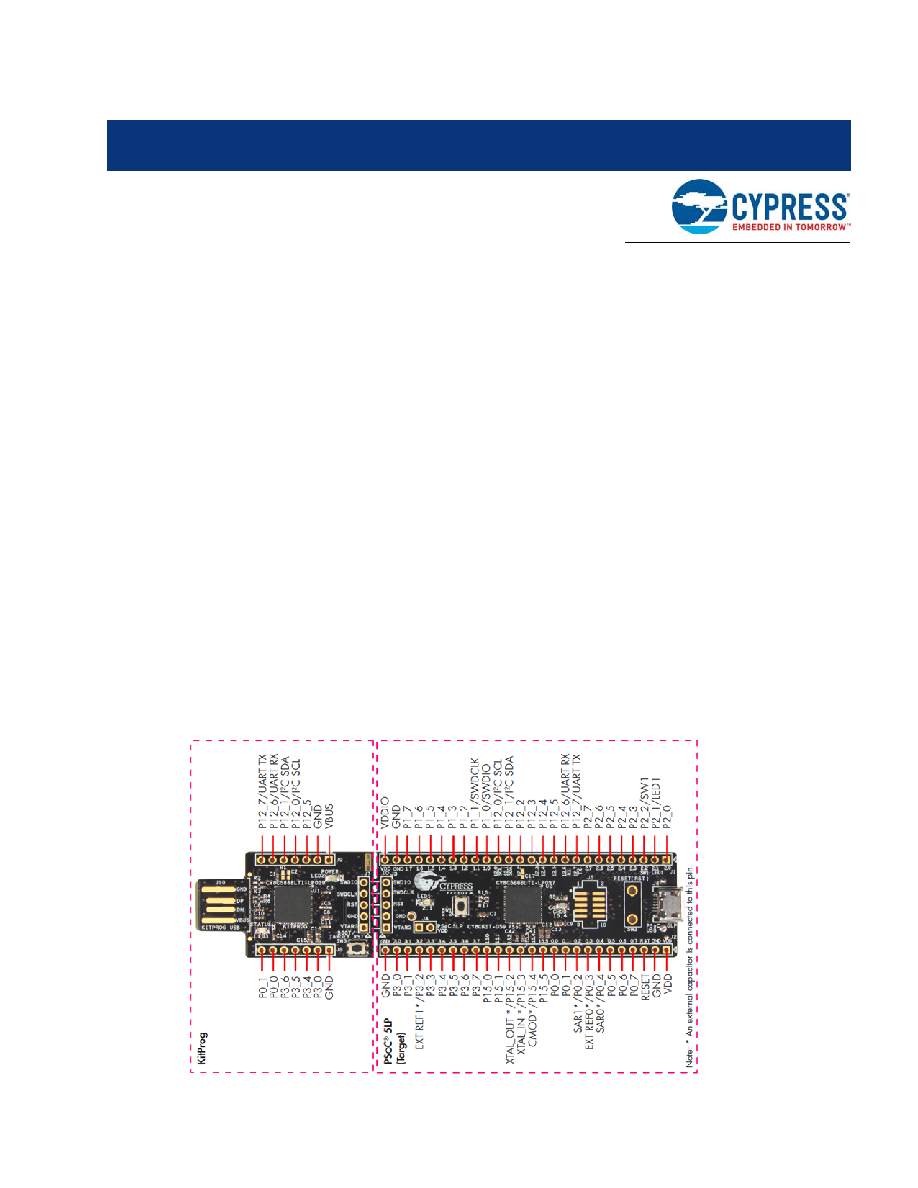

20 / 48 page  CY8CKIT-059 PSoC® 5LP Prototyping Kit Guide, Doc. #: 001-96498 Rev. *G 20 4. Hardware 4.1 Board Details The PSoC 5LP Prototyping Kit consists of the following blocks: ■ PSoC 5LP device ■ PSoC 5LP header ports J1 and J2 ■ Micro-USB connector, J6 ■ PSoC 5LP program/debug JTAG header, J5 ■ KitProg (PSoC 5LP) device ■ KitProg ports J8 and J9 (GPIO) ■ SWD connection J3 and J7 ■ PCB USB connector ■ One amber LED (Power) ■ One green LED (Status) ■ One blue LED (User) ■ User push button and reset button ■ External reference capacitors (ADC Bypass) ■ CapSense capacitor (CMOD) ■ Programming connector, J3 ■ Perforated ‘snappable’ board design Figure 4-1. PSoC 5LP Prototyping Kit Pin Details |
|
