MODEL: ABS3
ABS3 SPECIFICATIONS
ES-9413 Rev.4 Page 4/4
https://www.m-system.co.jp/

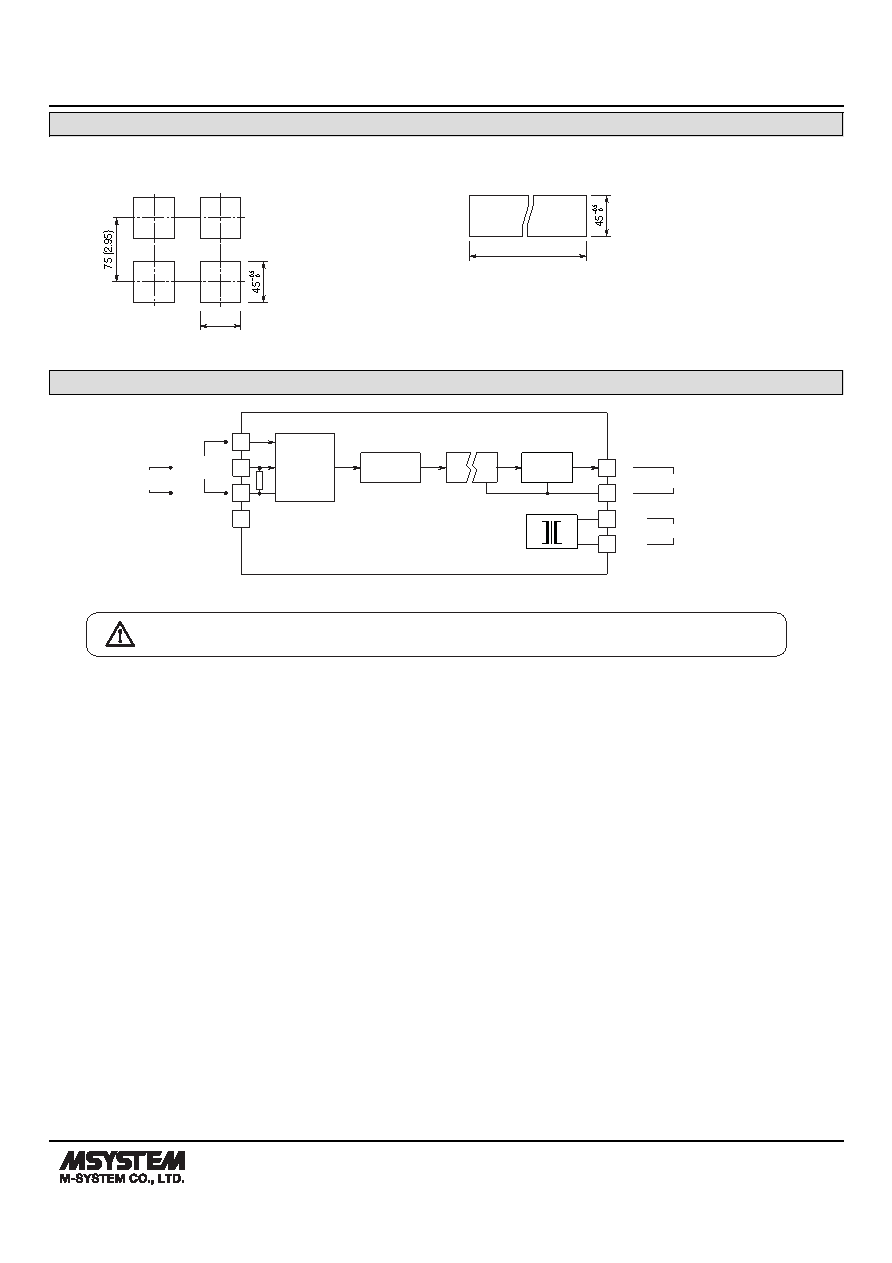

PANEL CUTOUT unit: mm (inch)
• Single Mounting
(Conform to degree of protection IP66)
• Clustered Mounting
(Not conform to degree of protection IP66)
45
+0.5
0
n × 48 – 3
+0.5
0
n : number of the units
Panel thickness : 1 to 8 mm
SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM
5
6
8
OUTPUT
+
–
U (+)
V (−)
7
POWER
Output
Driver
1
2
4
3
Voltage
Input
Current
Input
+
–
–
+
Display /
Setting
A / D
Converter
Isolation
Specifications are subject to change without notice.
