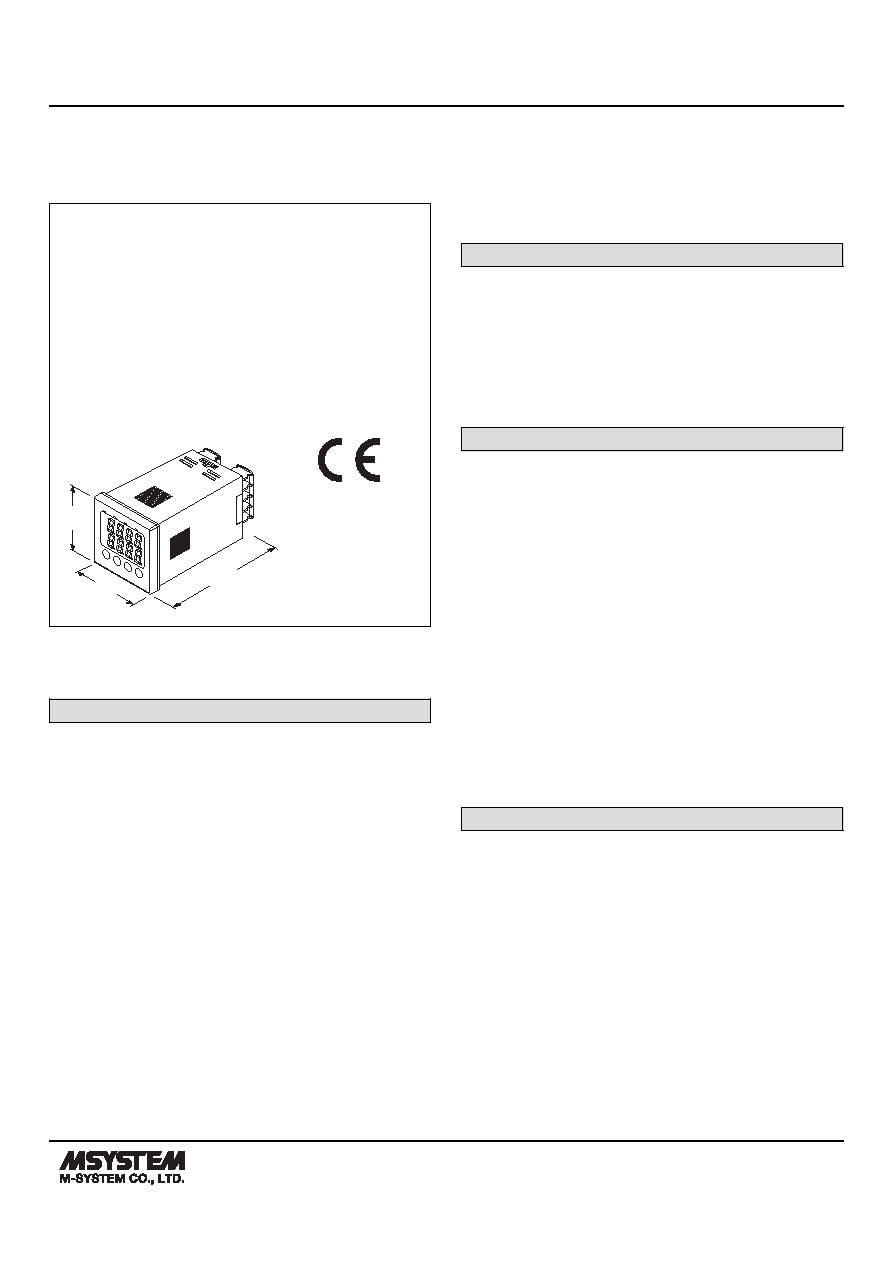

MODEL: ABS3

ABS3 SPECIFICATIONS

ES-9413 Rev.4 Page 1/4

https://www.m-system.co.jp/

Final Control Elements

PARAMETER GENERATOR

(with digital displays)

Functions & Features

• 1/16 DIN size

• Process input monitor display

• All parameters are programmable via the front control

keys

• Field-selectable voltage or current input

• IP66 front panel (single mounting)

Typical Applications

• Various parameter settings for computers and

DCS’s

48

(1.89)

93.8

(3.69)

48 (1.89)

mm (inch)

MODEL: ABS3–MM–[1][2]

ORDERING INFORMATION

• Code number: ABS3-MM-[1][2]

Specify a code from below for each of [1] and [2].

(e.g. ABS3-MM-M2/Q)

• Specify the specification for option code /Q

(e.g. /C01/SET)

INPUT

M: 4 – 20 mA DC (Input resistance 37 Ω)

/ 1 – 5 V DC (Input resistance ≥ 1M Ω)

OUTPUT

M: 4 – 20 mA DC (Load resistance ≤ 550 Ω)

/ 1 – 5 V DC (Load resistance ≥ 250 kΩ)

[1] POWER INPUT

AC Power

M2: 100 – 240 V AC (Operational voltage range 85 – 264 V,

47 – 66 Hz)

DC Power

R: 24 V DC

(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

[2] OPTIONS

blank: none

/Q: With options (specify the specification)

SPECIFICATIONS OF OPTION: Q (multiple selections)

COATING (For the detail, refer to M-System's web site.)

/C01: Silicone coating

/C02: Polyurethane coating

/C03: Rubber coating

EX-FACTORY SETTING

/SET: Preset according to the Ordering Information Sheet

(No. ESU-9413)

GENERAL SPECIFICATIONS

Construction: Panel flush mounting; terminal access via

screw terminals at the rear; terminal cover provided

Degree of protection: IP66; applicable to the front of the

panel meter with single mounted according to the specified

panel cutout

Connection: M3 screw terminals (torque 0.6 N·m)

Screw terminal: Nickel-plated steel

Housing material: Flame-resistant resin (black)

Isolation: Input to output to power

Security: Protecting settings by inhibiting operation of

parameter block 0 to 3 button

Programming: Front membrane pad keys

Setting:

• Scaled range

• Moving average

• Input filter time constant

• Others

DISPLAY

■ DIGITAL DISPLAYS

• PV Display

Display: 7-segment, 4-digit, red LED, 10 mm (.39") high

Scaling range: -1999 to 9999

Read rate: Max. 4/sec. (0.25 sec.)

Over-range indication: ‘UUUU’ when the input signal goes

above +10 % of the scaled range or 9999;‘LLLL’ when the

input signal goes below -10 % of the scaled range or -1999

• SV Display

Display: 7-segment, 4-digit, green LED, 10 mm (.39") high

Selectable range: -10 to +110 % in 1 % increments

• Status Indicators

PWR indicator: Green LED turns on while the power is

supplied.
