Data Sheet
ADL8106
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 18 of 26

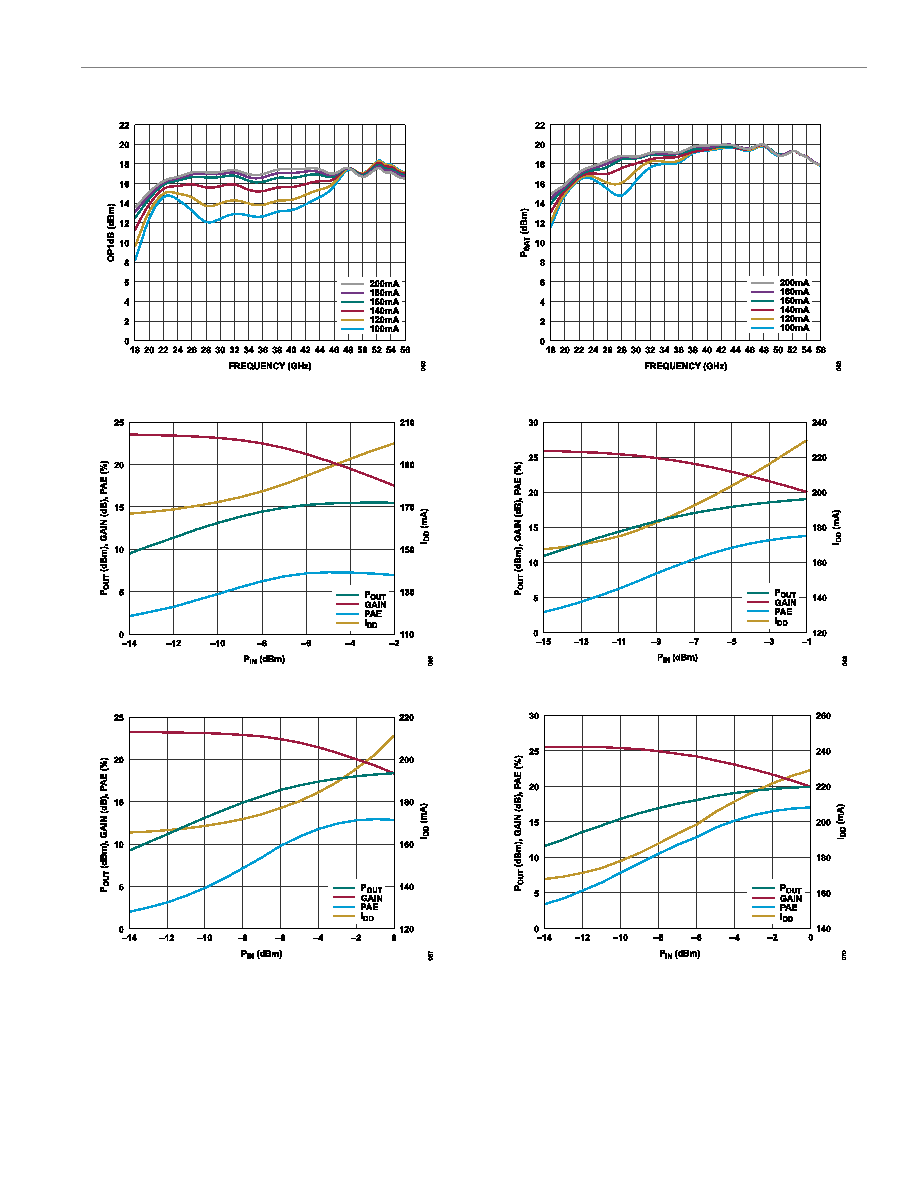

Figure 65. OP1dB vs. Frequency for Various IDQ Values, VDD = 2.5 V
Figure 66. POUT, Gain, PAE, and IDD vs. PIN, 20 GHz, VDD = 2.5 V, IDQ = 160 mA
Figure 67. POUT, Gain, PAE, and IDD vs. PIN, 28 GHz, VDD = 2.5 V, IDQ = 160 mA
Figure 68. PSAT vs. Frequency for Various IDQ Values, VDD = 2.5 V
Figure 69. POUT, Gain, PAE, and IDD vs. PIN, 36 GHz, VDD = 2.5 V, IDQ = 160 mA
Figure 70. POUT, Gain, PAE, and IDD vs. PIN, 48 GHz, VDD = 2.5 V, IDQ = 160 mA
