MPS50GR Datenblatt(PDF) 5 Page - AEROTECH US. ALL RIGHTS RESERVED.

Teilenummer MPS50GR
Bauteilbeschribung  Miniature Gear-Driven Rotary Stage
PDF  12 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Hersteller  AEROTECH [AEROTECH US. ALL RIGHTS RESERVED.]
Direct Link  https://www.aerotech.com/
Logo AEROTECH - AEROTECH US. ALL RIGHTS RESERVED.

MPS50GR Datenblatt(HTML) 5 Page - AEROTECH US. ALL RIGHTS RESERVED.

  MPS50GR Datasheet HTML 1Page - AEROTECH US. ALL RIGHTS RESERVED. MPS50GR Datasheet HTML 2Page - AEROTECH US. ALL RIGHTS RESERVED. MPS50GR Datasheet HTML 3Page - AEROTECH US. ALL RIGHTS RESERVED. MPS50GR Datasheet HTML 4Page - AEROTECH US. ALL RIGHTS RESERVED. MPS50GR Datasheet HTML 5Page - AEROTECH US. ALL RIGHTS RESERVED. MPS50GR Datasheet HTML 6Page - AEROTECH US. ALL RIGHTS RESERVED. MPS50GR Datasheet HTML 7Page - AEROTECH US. ALL RIGHTS RESERVED. MPS50GR Datasheet HTML 8Page - AEROTECH US. ALL RIGHTS RESERVED. MPS50GR Datasheet HTML 9Page - AEROTECH US. ALL RIGHTS RESERVED. Next Button
Zoom Inzoom in Zoom Outzoom out
 5 / 12 page
background image
aerotech.com

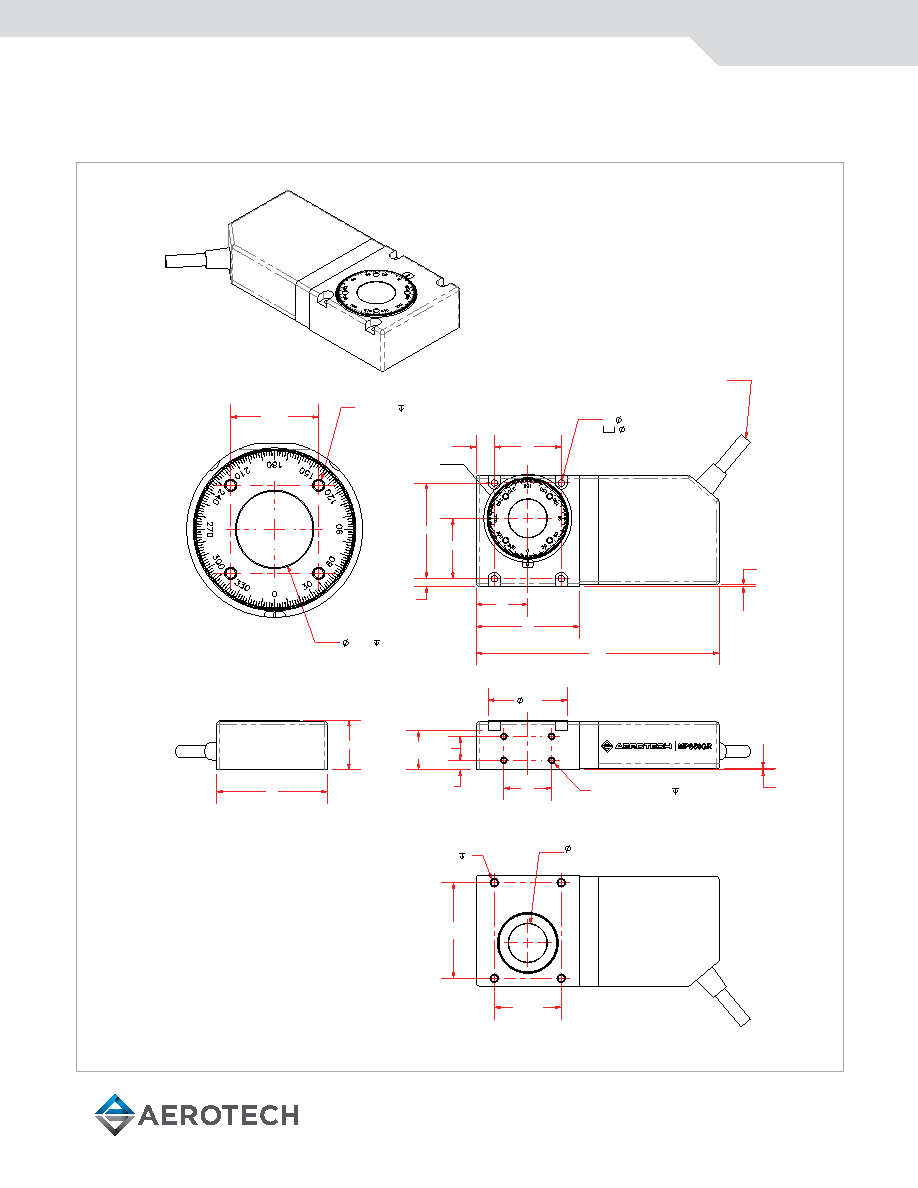

MPS-GR SERIES DIMENSIONS
MPS50GR
50
35
4
27
54
127
9.5
4X
3.4 THRU ALL
6.5 TO DEPTH SHOWN
0.8
31.5
A
STAGE CABLE EXIT
3M LENGTH
25
12.5
5
20.5
TYP
41.5
0.8
4X M3X0.5 HELICOIL 4.5 MAX
THREAD NO DEEPER
DAMAGE TO STAGE CAN RESULT
50
REF
35 REF
20 CLEAR
APERTURE
4X M4X0.7 8
58
26
23 SQ
20 H6 5.75
4X M3X0.5 4
DETAIL A
DIMENSIONS: MILLIMETERS



Html Pages

1 2 3 4 5 6 7 8 9 10 11 12


Datenblatt Download

Go To PDF Page
