Power rocker switches and indicators •

symbols and accessories

K range

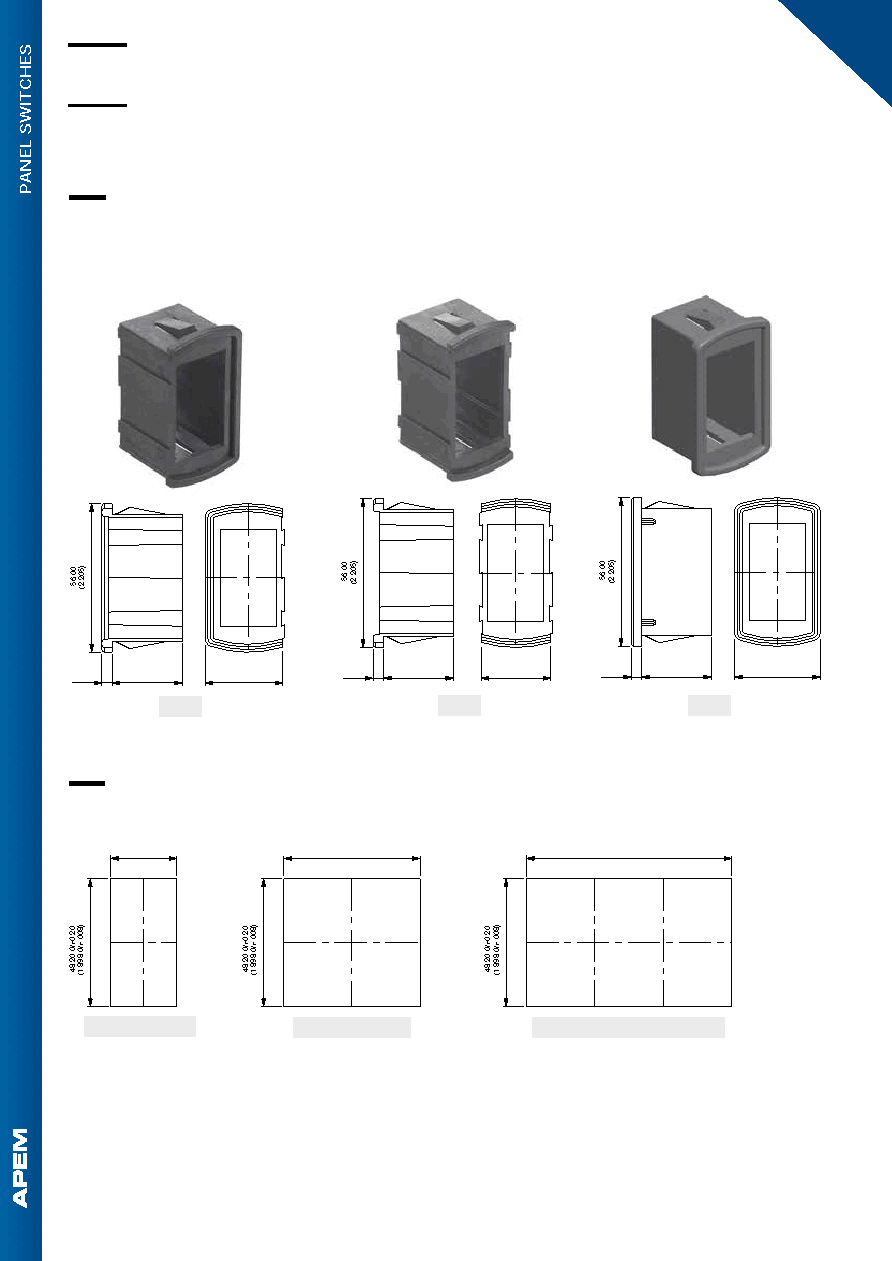

MOUNTING PANELS

MOUNTING PANEL MIDDLE

SINGLE MOUNTING PANEL

(1.152)

29.26

(1.043)

26.50

3.80

(.150)

CKRU2261-C

U2261

26.26

(1.034)

(.150)

3.80

26.50

(1.043)

CKRU2262-C

U2262

(.150)

3.80

26.50

(1.043)

32.26

(1.270)

U2267

Recommended panel thickness : 1.10 mm - 1.80 mm - 2.60 mm - 3.40 mm - 4.20 mm - 5 mm - 5.80 mm

MOUNTING PANEL CUT-OUT

51.00 0/+0.20

(2.008 0/+.008)

CKRDE2-C

(3.051 0/+.008)

77.50 0/+0.20

(.984 0/+.008)

25.00 0/+0.20

For 1 element U2267

For 2 elements U2261

For 3 elements (2xU2261 + 1x U2262)

For additional

elements, add

26.40 mm (1.039)

MOUNTING PANEL END

(NOT AVAILABLE FOR USE WITH THE KH SERIES)
