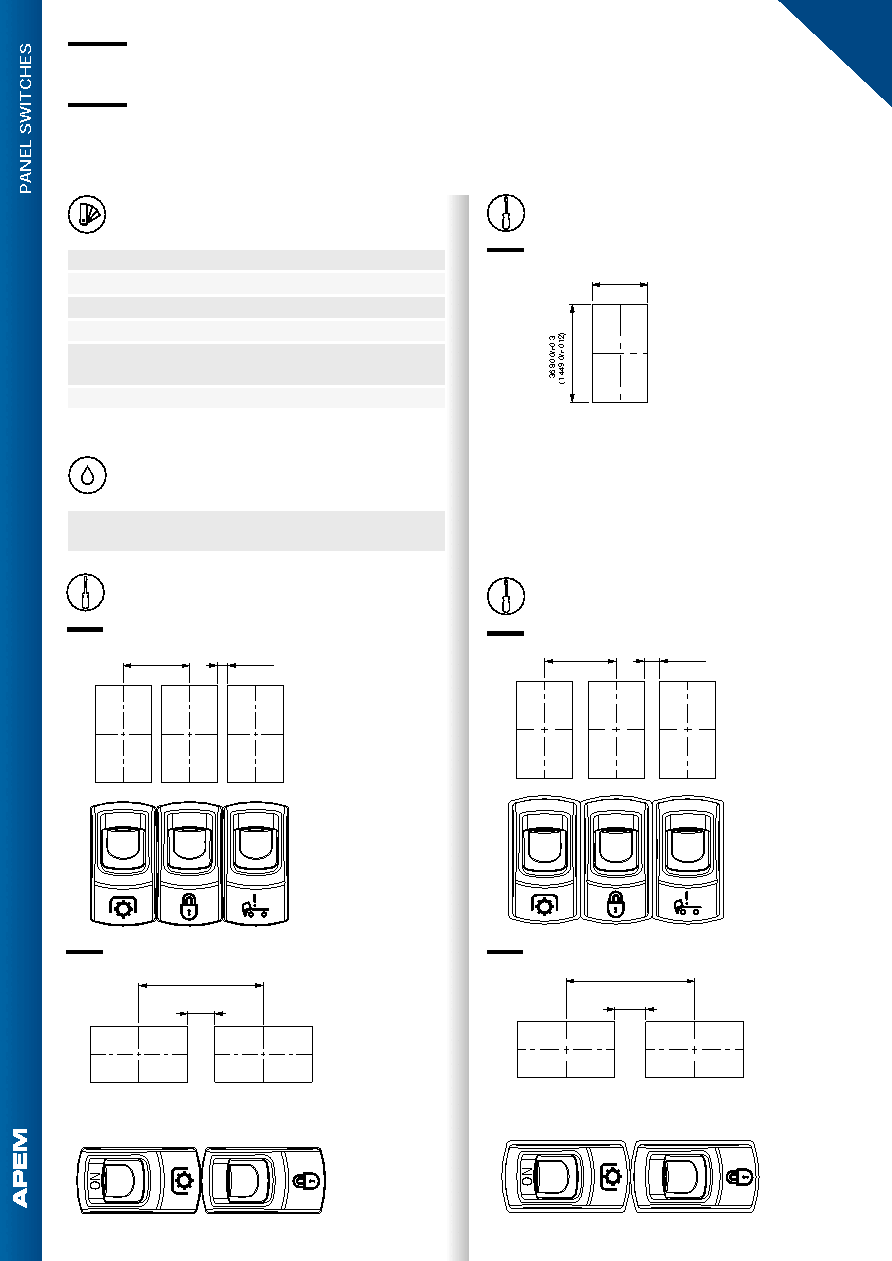

Locking power rocker switches

KL series

MATRIX MOUNTING

(.984 min.)

25.00 mini

(.157)

4.00

47.00 mini

(1.850 min.)

10.20

(.402)

FICHIER: CKLDE-P11

le 18/03/08

ECHELLE: 0.625

indice A

CKLDE1-A

ON

SPECIFIC MATRIX MOUNTING

FOR Z VERSION

FICHIER: CKLDEZ

le 30/09/16

ECHELLE: 0.625

CKLDEZ

(1.063 min.)

27.00 mini

(.236)

6.00

48.50 mini

(1.909 min.)

11.70

(.460)

ON

• Case : PA 6-6

• Actuator : ABS

• Unlocking actuator : ABS or elastomeric membrane

• Bezel : PA 6-6

• Contacts & terminals : brass, solid silver grain, silver plated

(

A or S) or brass, solid silver grain, gold plated (D)

• Contact roller : brass, nickel plated

APEM products may be recycled at end-of-life for the re-claiming of valuable metal

components.

MATERIALS

• Sealing is optional. To order a sealed product, complete the

appropriate box of ordering format on the following pages.

SEALING

21.08 0/+0.3

(.830 0/+.012)

CKRDE3-C

PANEL CUT-OUT

(.984 min.)

25.00 mini

(.157)

4.00

47.00 mini

(1.850 min.)

10.20

(.402)

FICHIER: CKLDE-P11

le 18/03/08

ECHELLE: 0.625

indice A

CKLDE1-A

ON

FICHIER: CKLDEZ

le 30/09/16

ECHELLE: 0.625

CKLDEZ

(1.063 min.)

27.00 mini

(.236)

6.00

48.50 mini

(1.909 min.)

11.70

(.460)

ON
