I/O bus interface description
STLS2F01
18/48

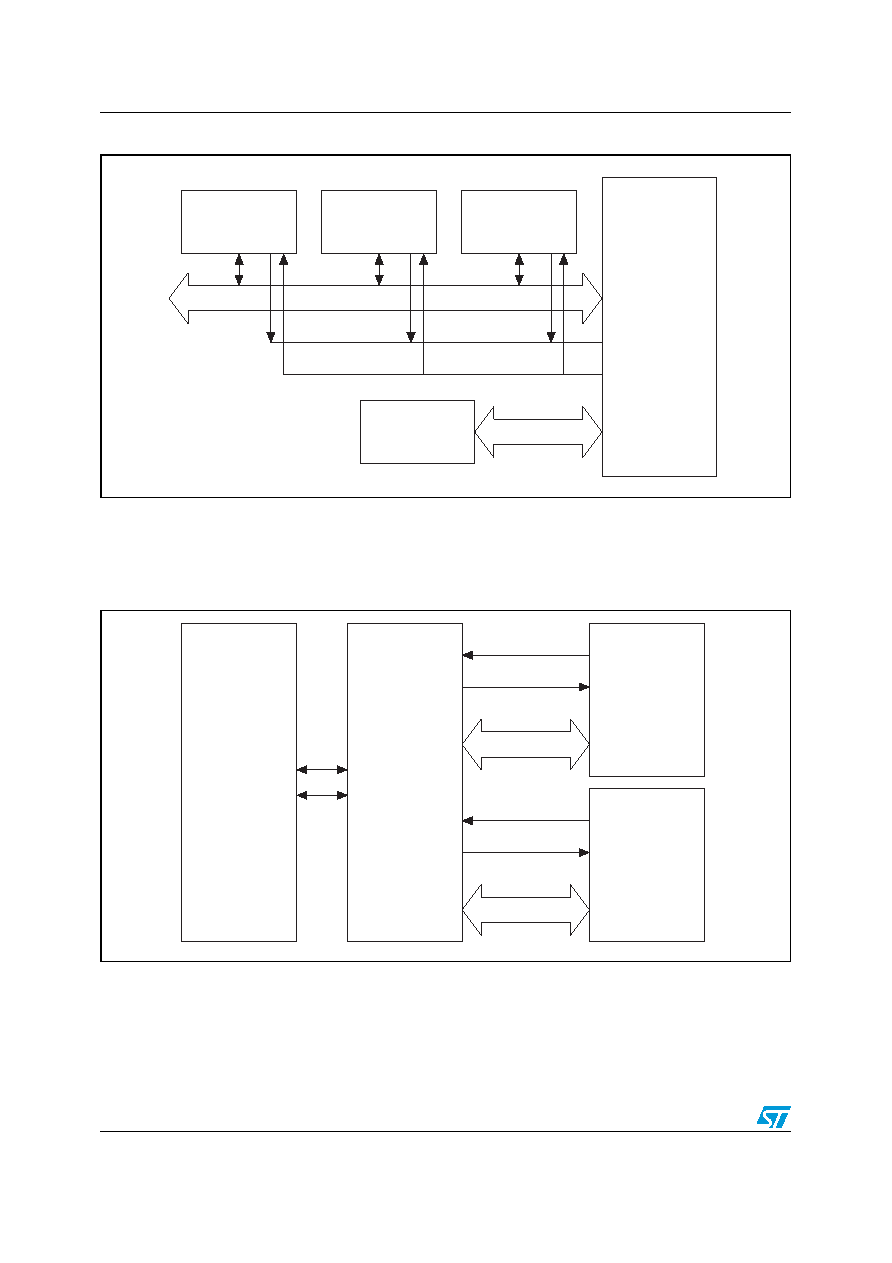

Figure 3.
STLS2F01 uniprocessor system connection
●
Multiprocessor system connections
Figure 4.
STLS2F01 multiprocessor system connections
3.5
Local bus description
Local bus is a simple peripheral interface. It’s mainly used to connect to boot ROM. There
are two chip select signals, and corresponding configurable data width and access delay.
PCI Dev
PCI Dev
PCI Dev
Loongson2F
PCI Bus
PCI_REQ
PCI_GNT
Local Bus
Boot Rom
I/O
Chipset
Loongson2F
PCI Bus
PCI_REQn
PCI_GNTn
PCI Bus
PCI_REQn
PCI_GNTn
Loongson2F



Html Pages
