Section 6 Bus Controller (BSC)
Rev.1.00 Jun. 07, 2006 Page 296 of 1102
REJ09B0294-0100
(4) External Access after Single Address Transfer Write
If an external access occurs after a single address transfer write while bit IDLS3 in IDLCR is set
to 1, idle cycles specified by bits IDLCA1 and IDLCA0 are inserted at the start of the external
access (n = 0 to 7).

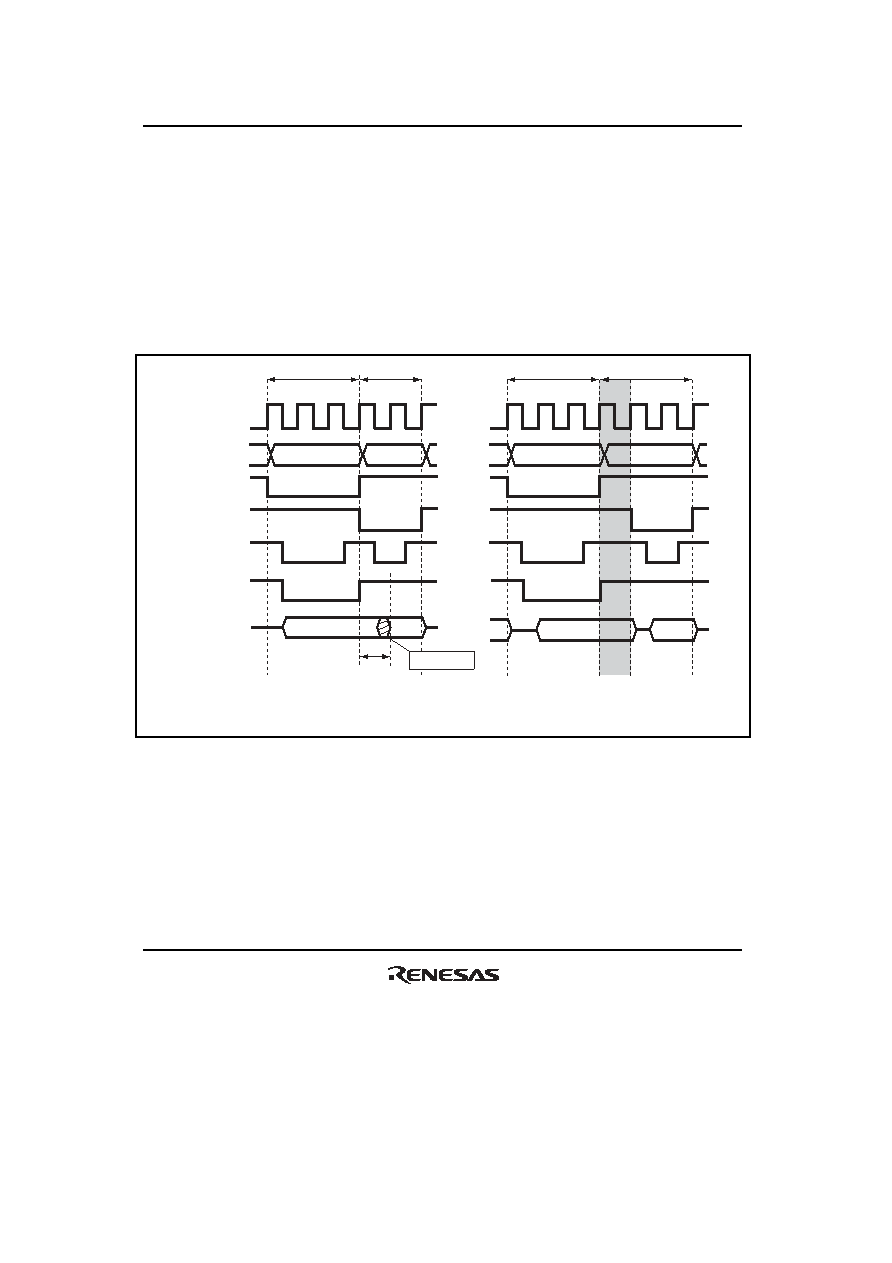

Figure 6.93 shows an example of the operation in this case. In this example, bus cycle A is a
single address transfer (write cycle) and bus cycle B is a CPU write cycle. In (a), an idle cycle is
not inserted, and a conflict occurs in bus cycle B between the external device write data and this
LSI write data. In (b), an idle cycle is inserted, and a data conflict is prevented.
Output floating
time is long.
Data conflict
Bus cycle A
Bus cycle B
(a) No idle cycle inserted
(IDLS3 = 0)
B
φ
Address bus
CS (area A)
CS (area B)
LLWR
DACK
Data bus
T
1
T
2
T
3
T
1
T
2
(b) Idle cycle inserted
Bus cycle A
Bus cycle B
T
1
T
2
T
3
T
1
T
i
T
2
(IDLS3 = 1, IDLCA1 = 0, IDLCA0 = 0)
Figure 6.93 Example of Idle Cycle Operation (Write after Single Address Transfer Write)
