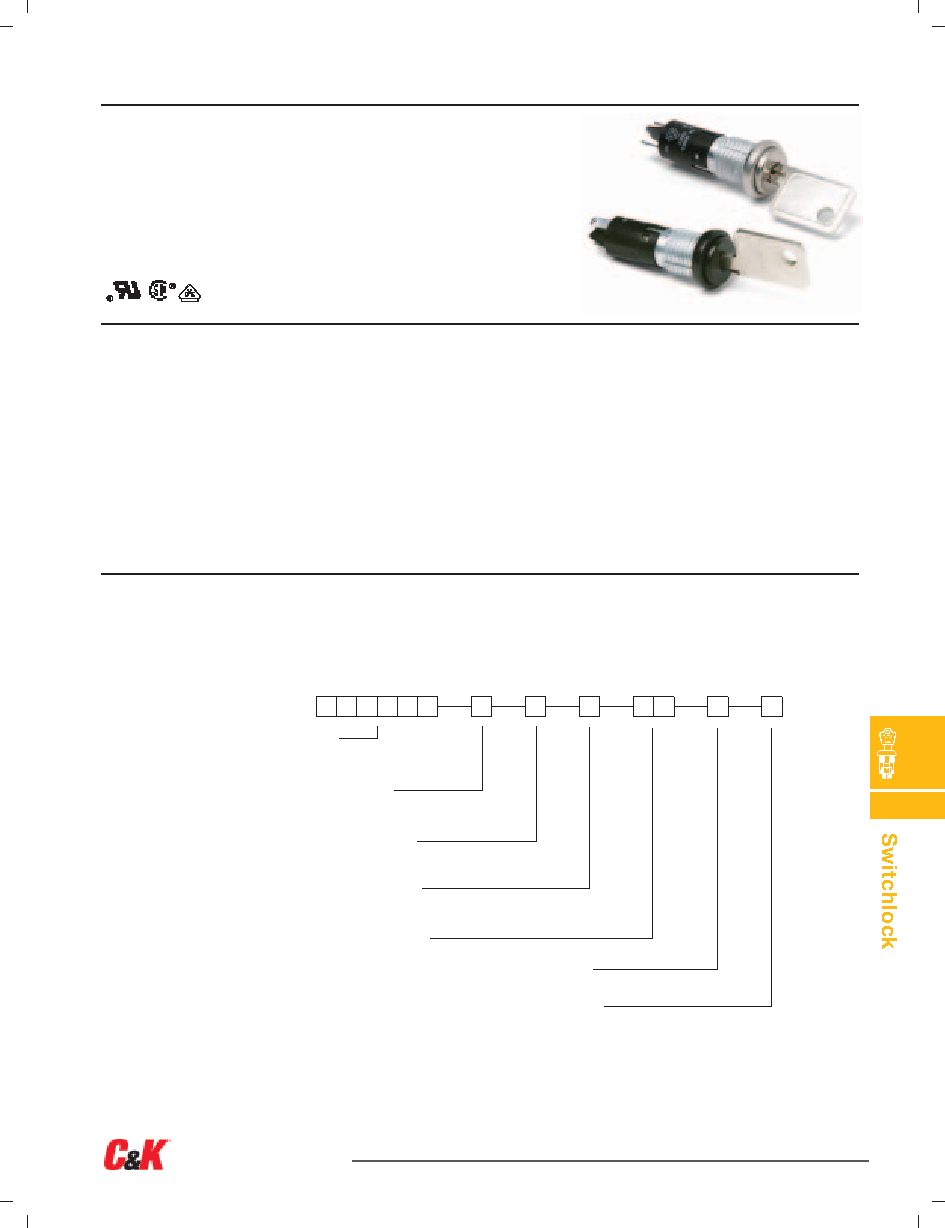

YM Series

4 Tumbler Miniature Switchlocks

Features/Benefits

for pre-wiring of switch

Typical Applications

Specifications

CONTACT RATING: Q contact material: 4 AMPS @ 125 V AC or

28 V DC; 2 AMPS @ 250 V AC (UL/CSA). 4 AMPS @ 125 V AC,

2 AMPS @ 250 V AC, T65, class 1 (VDE). See page M-17 for

additional ratings.

ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.

CONTACT RESISTANCE: Below 10 m

Ω typ. initial @

2-4 V DC, 100 mA.

INSULATION RESISTANCE: 109

Ω min.

DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.

INDEXING: 90º:2 positions.

Materials

LOCK: Zinc alloy with stainless steel facing. 4 tumbler single

bitted lock with integral detent mechanism.

KEYS: Two nickel plated brass keys with code number.

SWITCH HOUSING: 6/6 Nylon (UL 94V-2).

CONTACTS & TERMINALS: Q contact material: Copper, silver

plated. See page L-17 for additional contact materials.

MOUNTING NUT: Brass, bright zinc plated.

NOTE: Any models supplied with Q or B contact material are RoHS compliant.

NOTE: Specifications and materials listed above are for switchlocks with standard options.

For information on specific and custom switchlocks, consult Customer Service Center.

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages L–16 and L–17. For additional options not shown in catalog, consult Customer Service Center.

Switch and Lock Function

Mounting Style

Keying

2

Two nickel plated brass keys

Lock Finish

2

Stainless steel facing

8

Gloss black facing

Terminations

05

Quick connect

Contact Material

Lock Type

with detent
