CONFIGURATIONS

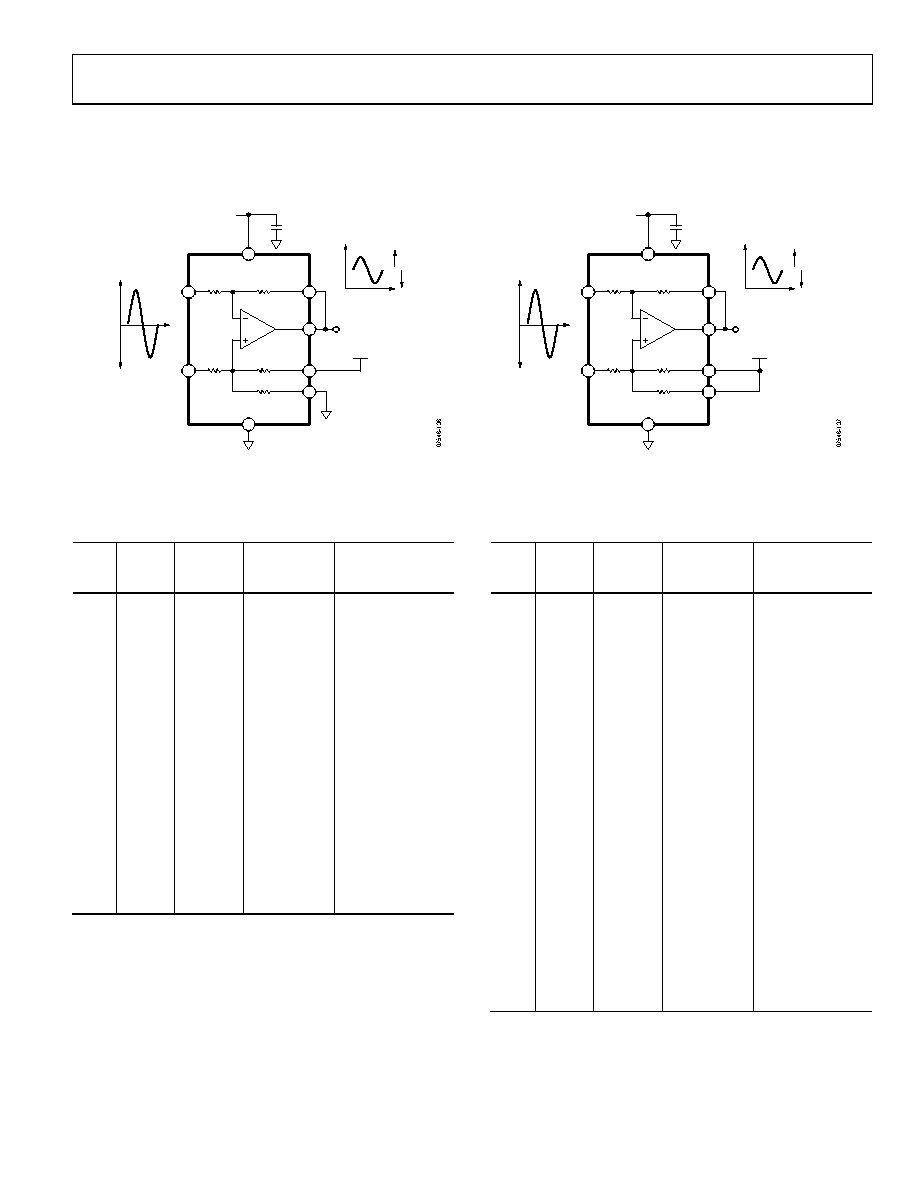

Figure 36 and Figure 37, along with Table 6 and Table 7, provide

examples of the possible input and output ranges for various

supplies and reference voltages.

Note that Table 6 and Table 7 list the typical voltage range of the

AD8275; these values do not reflect variation over process or

temperature.

HI

+SWING

–SWING

RANGE

LO

HI

LO

MID

AD8275

7

4

5

6

8

2

50k

Ω

0.1µF

50k

Ω

20k

Ω

20k

Ω

10k

Ω

3

+IN

–IN

REF2

REF1

+5V

OUT

SENSE

1

HI

+SWING

–SWING

RANGE

LO

HI

LO

MID

AD8275

7

4

5

6

8

2

50k

Ω

0.1µF

50k

Ω

20k

Ω

20k

Ω

10k

Ω

3

+IN

–IN

REF2

REF1

+5V

OUT

SENSE

1

Figure 36. Split Reference

Figure 37. Shared Reference

Table 6. Input and Output Relationships for Split Reference

Configuration in Figure 36

Linear

Differential

Ranges

5 V

5 V

2.5 V

High: +12 V

Mid: 0 V

Low: −12.3 V

High: +4.95 V

Swing: +2.45 V,

−2.455 V

Low: +0.045 V

5 V

2.5 V

1.25 V

High: +18.3 V

Mid: 0 V

Low: −6 V

High: +4.95 V

Swing: +3.7 V,

−1.205 V

Low: +0.045 V

5 V

4.096 V

2.048 V

High: +14.3 V

Mid: 0 V

Low: −10 V

High: +4.95 V

Swing: +2.902 V,

−2.003 V

Low: +0.045 V

3.3 V

3.3 V

1.65 V

High: +8 V

Mid: 0 V

Low: −8 V

High: +3.24 V

Swing: +1.59 V,

−1.605 V

Low: +0.045 V

3.3 V

2.5 V

1.25 V

High: +10 V

Mid: 0 V

Low: −6 V

High: +3.24 V

Swing: +1.99 V,

−1.205 V

Low: +0.045 V

1

Table 7. Input and Output Relationships for Shared

Reference Configuration in Figure 37

Linear

Differential

Ranges

5 V

5 V

5 V

High: −0.1 V

Mid: 0 V

Low: −24.7 V

High: +4.98 V

Swing: −4.94 V

Low: +0.06 V

5 V

4.096 V

4.096 V

High: +4.4 V

Mid: 0 V

Low: −20.2 V

High: +4.98 V

Swing: +0.884 V

to −4.03 V

Low: +0.06 V

5 V

3 V

3 V

High: +9.5 V

Mid: 0 V

Low: −14.8 V

High: +4.95 V

Swing: +1.9 V,

−2.955 V

Low: +0.045 V

5 V

2.5 V

2.5 V

High: +12 V

Mid: 0 V

Low: −12.3 V

High: +4.95 V

Swing: +2.45 V,

−2.455 V

Low: +0.045 V

5 V

2.048 V

2.048 V

High: +14.3 V

Mid: 0 V

Low: −10 V

High: +4.95 V

Swing: +2.902 V,

−2.003 V

Low: +0.045 V

5 V

1.25 V

1.25 V

+18.3 V to

−6 V

High: +4.95 V

Swing: +3.7 V,

−1.205 V

Low: +0.045 V

0 V

0 V

0 V

24.5 V to 0.2 V

High: 4.95 V

Swing: 4.95 V

Low: 0.045 V
