SPE-15-8-008/B/EZ
Page 5 of 25
MA.510.C.W.C108151.G108151
3.2 Return Loss

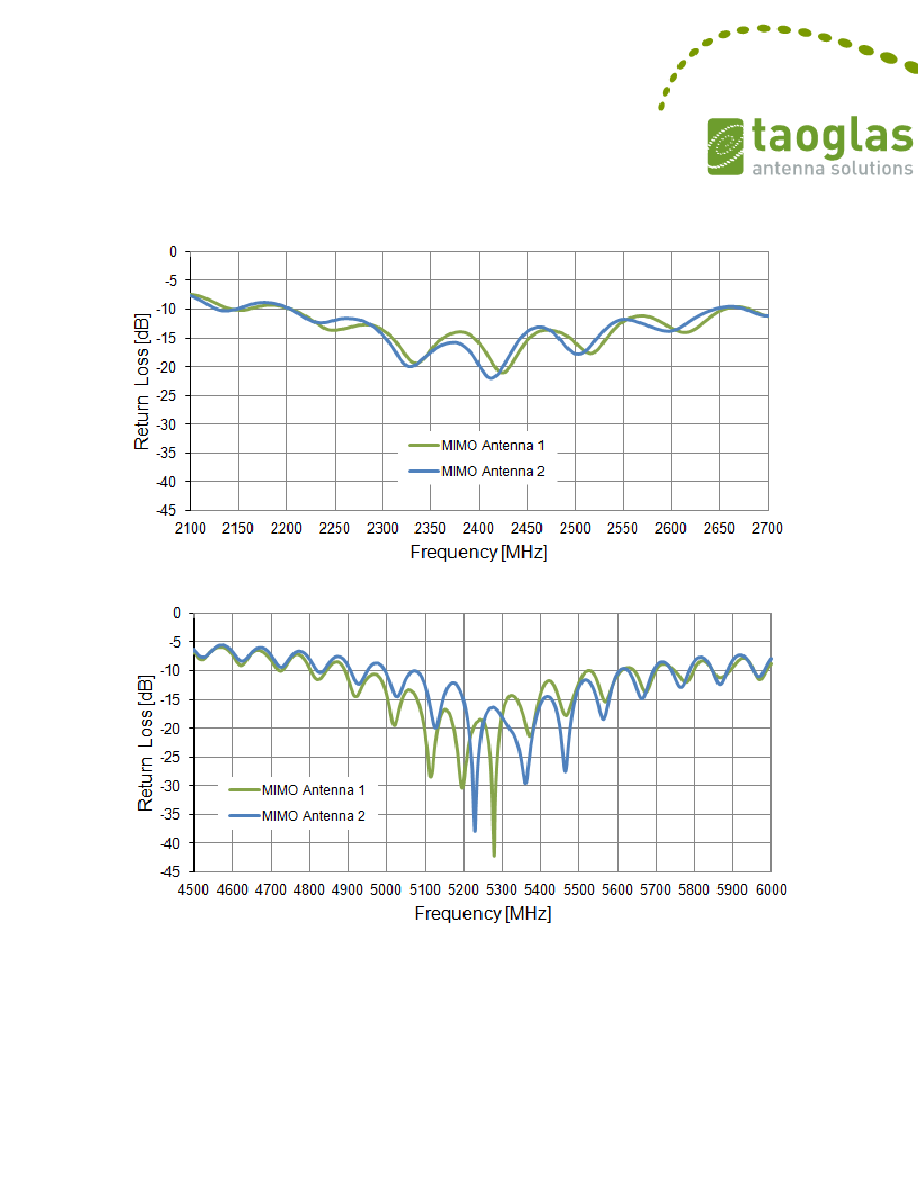

Figure 3. Return loss of the Hercules MA510 MIMO antenna from 2100 MHz to 2700 MHz.
Figure 4. Return loss of the Hercules MA510 MIMO antenna from 4500 MHz to 6000 MHz.
