SPE-15-8-008/B/EZ
Page 7 of 25
MA.510.C.W.C108151.G108151
3.4 Isolation

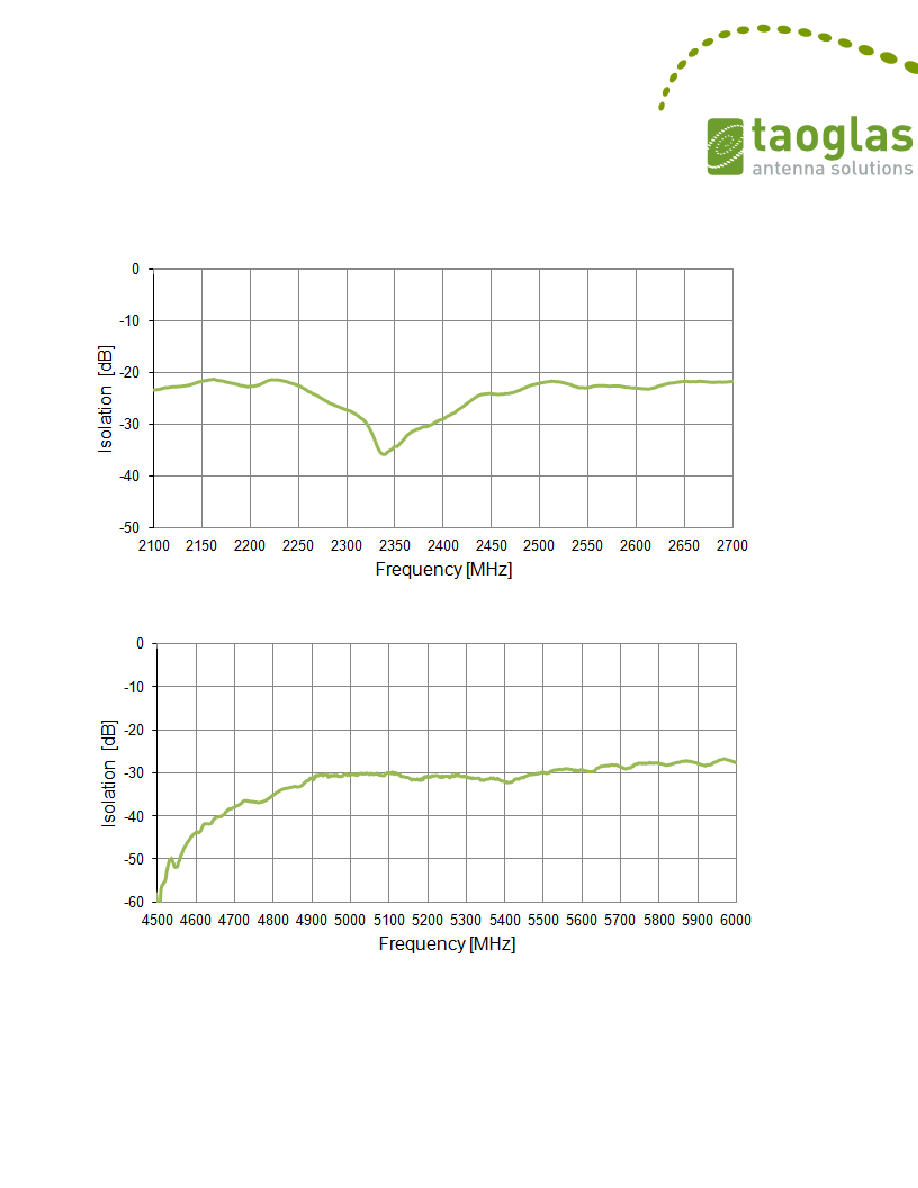

Figure 7. Isolation of the Hercules MA510 MIMO antenna from 2100 MHz to 2700 MHz
Figure 8. Isolation of the Hercules MA510 MIMO antenna from 4500 MHz to 6000 MHz
