PA62 Datenblatt (PDF) - Cirrus Logic

PA62 Datasheet PDF - Cirrus Logic
Teilenummer PA62
Download  PA62 Download
Filegröße   293.67 Kbytes
Page   4 Pages
Hersteller  APEX [Cirrus Logic]
Direct Link  http://www.cirrus.com
Logo APEX - Cirrus Logic

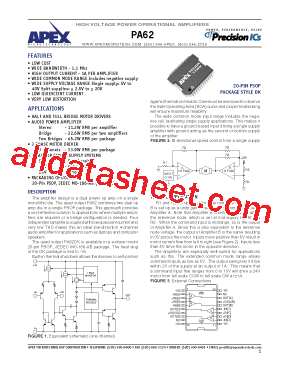

Bauteilbeschribung HIGH VOLTAGE POWER OPERATIONAL AMPLIFIERS

PA62 Datasheet (PDF)

Go To PDF Page Download Datenblatt
PA62 Datasheet PDF - Cirrus Logic

Teilenummer PA62
Download  PA62 Click to download

Filegröße   293.67 Kbytes
Page   4 Pages
Hersteller  APEX [Cirrus Logic]
Direct Link  http://www.cirrus.com
Logo APEX - Cirrus Logic
Bauteilbeschribung HIGH VOLTAGE POWER OPERATIONAL AMPLIFIERS

PA62 Datenblatt (HTML) - Cirrus Logic


PA62 Produktdetails

DESCRIPTION
The amplifier design is a dual power op amp on a single monolithic die. The quad output PA62 combines two dual op amp die in a single PSOP package. This approach provides a cost-effective solution to applications where multiple amplifiers are required or a bridge configuration is needed. Four independent amplifiers coupled with low quiescent current and very low THD makes this an ideal low-distortion 4-channel audio amplifier for applications such as laptops and computer speakers.

FEATURES
• LOW COST
• WIDE BANDWIDTH - 1.1 Mhz
• HIGH OUTPUT CURRENT - 1A PER AMPLIFIER
• WIDE COMMON MODE RANGE Includes negative supply
• WIDE SUPPLY VOLTAGE RANGE Single supply: 5V to 40V Split supplies: ± 2.5V to ± 20V
• LOW QUIESCIENT CURRENT
• VERY LOW DISTORTION

APPLICATIONS
• HALF AND FULL BRIDGE MOTOR DRIVERS
• AUDIO POWER AMPLIFIER
    Stereo - 11.3W RMS per amplifier
    Bridge - 22.6W RMS per two amplifiers
    Two Bridges - 45.2W RMS per package
• 3 PHASE MOTOR DRIVER
    3 Channels - 33.9W RMS per package
• IDEAL FOR SINGLE SUPPLY SYSTEMS
    5V - Peripherals
    12V - Automotive
    28V - Avionic
• PACKAGING OPTIONS
    20-Pin PSOP, JEDEC MO-166-AB (PA62DK)
