Section 7 DMA Controller (DMAC)
Rev.1.00 Jun. 07, 2006 Page 351 of 1102
REJ09B0294-0100
Transfer
Address TA
Address B
A
Address TB
Address BB
Nth block
Second block
First block
Nth block
Second block
First block
BKSZH
×
data access size
Total transfer
size (DTCR)

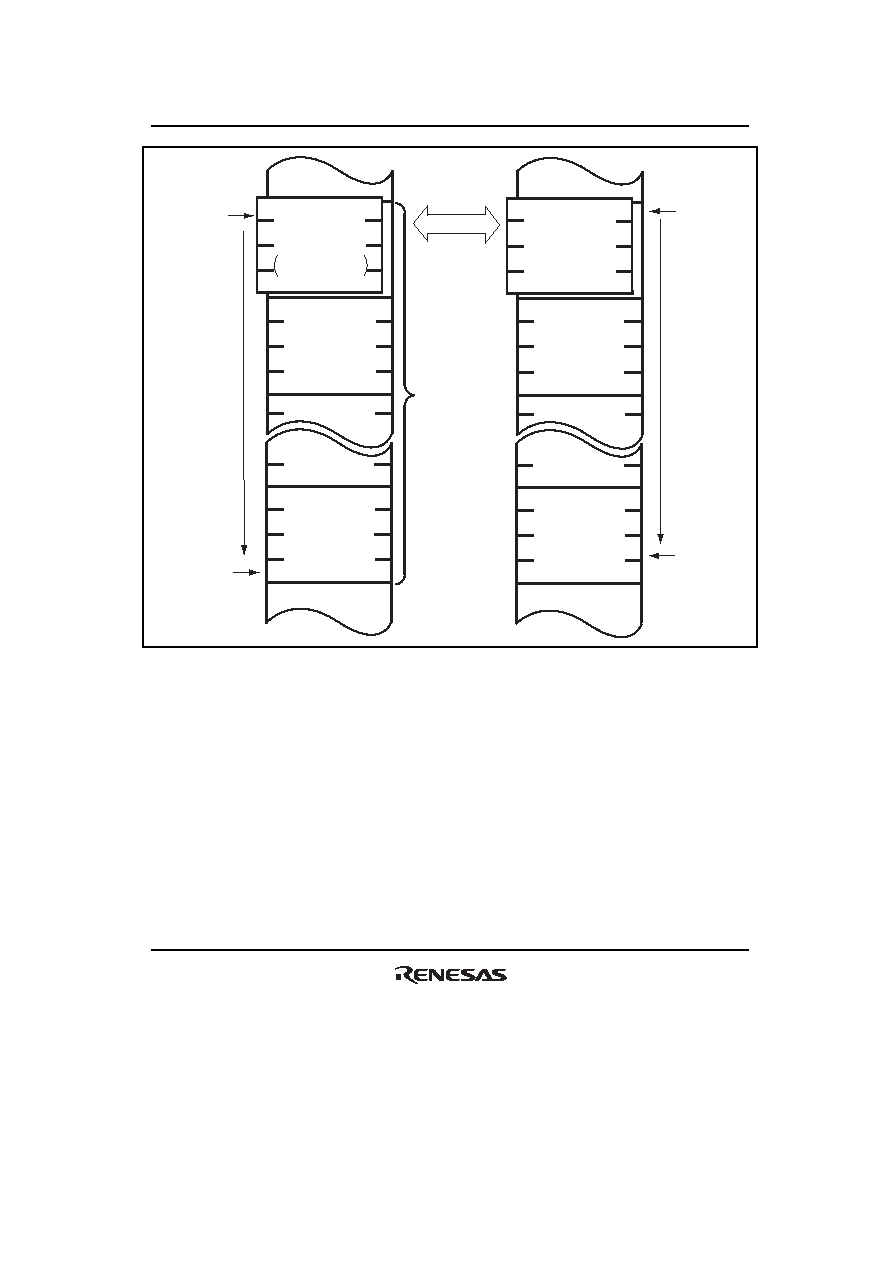

Figure 7.12 Operation in Dual Address Mode in Block Transfer Mode
(Block Area Not Specified)
