USB 2.0 Hi-Speed 3-Port Hub Controller

Datasheet

SMSC USB2533

Revision 1.0 (06-17-13)

DATASHEET

Chapter 10 Package Outline

Notes:

1. All dimensions are in millimeters unless otherwise noted.

2. Dimension “b” applies to plated terminals and is measured between 0.15 and 0.30 mm from the terminal tip.

3. The pin 1 identifier may vary, but is always located within the zone indicated.

4. Coplanarity zone applies to exposed pad and terminals.

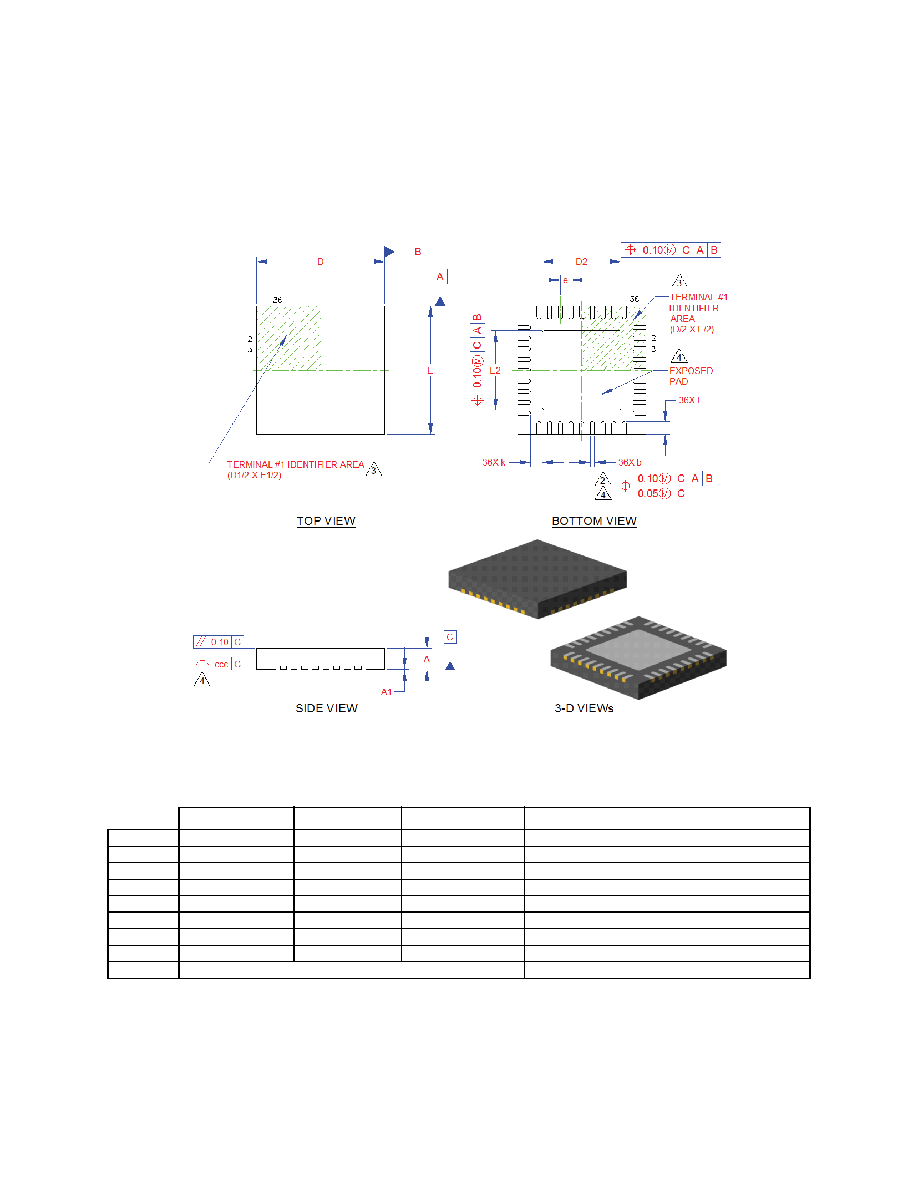

Figure 10.1 36-SQFN Package Drawing

Table 10.1 36-SQFN Package Dimensions

MIN

NOMINAL

MAX

REMARKS

0.80

0.90

1.00

Overall Package Height

0.02

0.05

Standoff

D/E

5.90

6.00

6.10

X/Y Body Size

D2/E2

3.60

3.70

3.80

X/Y Exposed Pad Size

0.50

0.60

0.75

Terminal Length

0.18

0.25

0.30

Terminal Width

0.45

0.55

Terminal to Exposed Pad Clearance

ccc

0.08

Coplanarity

0.50 BSC

Terminal Pitch
